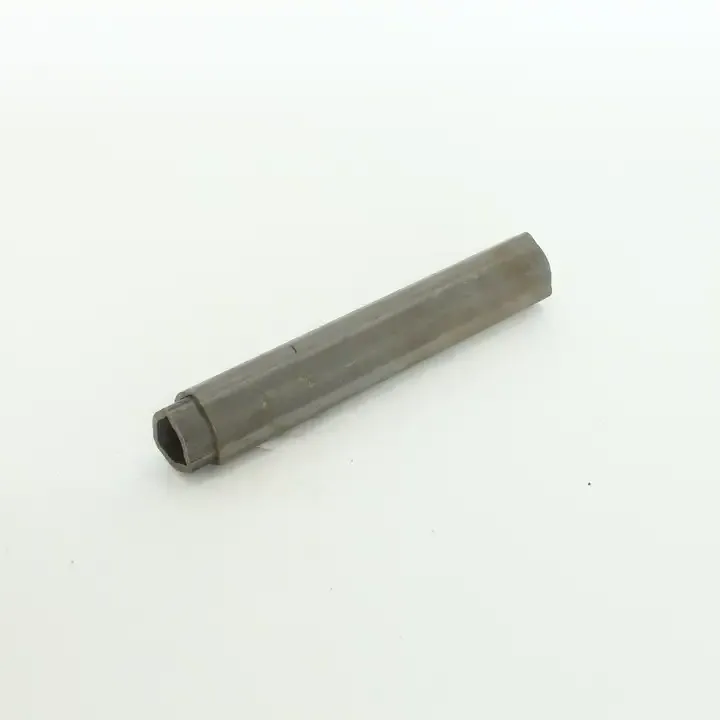

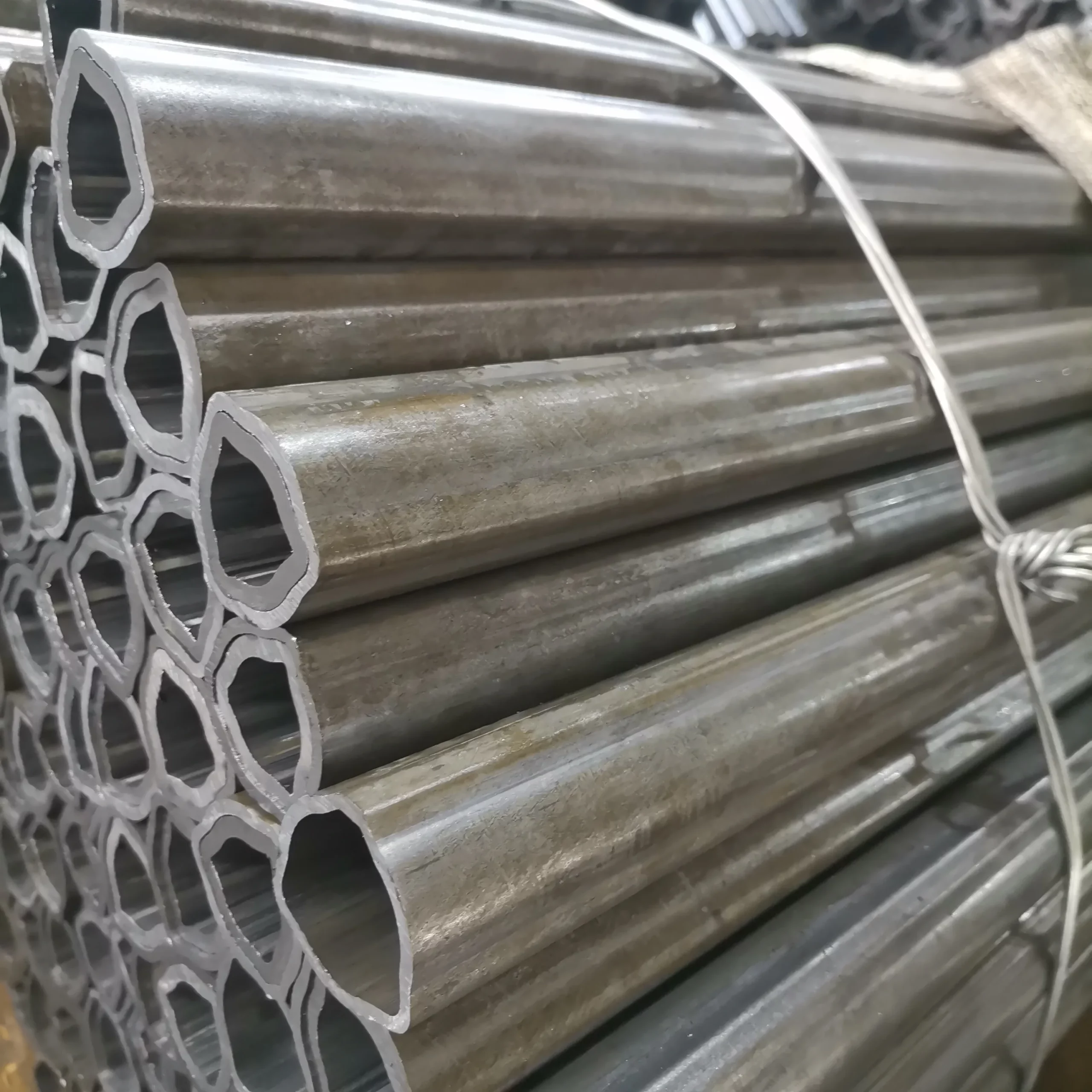

Factory Price Tube Triangular Pipe Pto Shaft Pipe for Agricultural Tractor Parts

Introducing our high-quality, factory-priced Tube Triangular Pipe PTO Shaft Pipe for Agricultural Tractor Parts. This brand-new product comes with a 1-year warranty and is designed for a wide array of industries including hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, retail, food shops, printing shops, construction works, energy & mining, food & beverage shops, advertising companies, and more. Weighing just 5kg and crafted from 16Mn steel, this product is a testament to our commitment to quality and reliability.

PTO Drive Shaft Tube Specifications:

Features of our PTO Shaft Pipe

The Tube Triangular Pipe PTO Shaft Pipe for Agricultural Tractor Parts is a product of impeccable quality and strength. Here are five key features that set it apart:

1. 1. High Quality: Made from 16Mn steel, this product boasts high durability and performance.
   2. Versatile: It is suitable for a vast array of industries, making it a versatile choice for numerous applications.
   3. Lightweight: Weighing just 5kg, it is easy to handle and install.
   4. Customizable: The length of this PTO shaft pipe is custom-made to meet your specific requirements.

1. Warranty: It comes with a 1-year warranty, offering you peace of mind with your purchase.

Our production capabilities ensure that we can manufacture this product to meet your exact specifications. If your PTO Shaft parts are damaged, our product serves as the perfect replacement, guaranteeing seamless operation.

Applications of our PTO Shaft Pipe

Our Tube Triangular Pipe PTO Shaft Pipe for Agricultural Tractor Parts is an essential component in numerous sectors. Here are five key applications of our product:

1. Drive shaft for agricultural machinery equipment.
2. Power transmission in various industries.
3. Replacement part for damaged PTO shaft parts in tractors.
4. Component in construction machinery.
5. Part of the machinery in manufacturing plants.

PTO Drive Shaft Tube Types

PTO (Power Take-Off) shaft tubes are critical components in many agricultural and industrial machines, used to transmit power from a tractor or other power source to an implement or attachment. These tubes come in various types, each designed for specific applications and load requirements.

1. Standard Duty Tubes: These are the most common type, used for general agricultural and industrial applications. They are typically made of steel and designed to handle moderate torque and stress.
2. Heavy-Duty Tubes: Designed for high-torque applications, heavy-duty tubes are thicker and stronger than standard tubes. They are often used in large agricultural machinery and industrial applications where higher power transmission is required.
3. Telescopic Tubes: These tubes can extend or retract to accommodate different distances between the power source and the implement. They are commonly used in applications where the distance between the tractor and the attachment varies, such as with adjustable machinery.
4. Splined Tubes: These feature a splined interior for better torque transmission. They are often used in high-power applications and provide a secure connection between the shaft and the implement.
5. Lemon Tubes: Named for their lemon-like shape, these tubes offer a good balance of strength and flexibility. They are particularly effective in conditions where the shaft needs to bend or flex during operation.
6. Star Tubes: Similar to lemon profile tubes but with a star-shaped profile, these tubes provide excellent torque transmission capabilities and are used in various heavy-duty applications.
7. Triangular Tubes: These have a triangular shape and are used for specific applications where this shape offers advantages in strength or compatibility with certain machinery types.

How to Replace PTO Shaft Tubing?

Replacing a PTO (Power Take-Off) shaft tube is a task that requires some mechanical skills, proper tools, and safety precautions. Here's a general guide on how to replace PTO shaft tubing:

1. Safety Precautions, Wear Proper Safety Gear: Use gloves, safety glasses, and appropriate clothing. Secure the Equipment: Ensure the tractor and implement are turned off, keys removed, and equipment is stabilized.
2. Disconnect the PTO shaft: The PTO shaft should be detached from the tractor and the implement. Secure the shaft in a vise if available. Remove any retaining bolts or pins that hold the two halves of the shaft together. Slide the two halves apart.
3. Remove the Tubing: Identify how the tubing is secured to the yokes (often with a roll pin or a bolt). Use a punch and hammer to drive out roll pins, or a wrench for bolts. Slide the old tubing off the yokes.
4. Prepare the New Tubing: Measure and cut the new tubing to the correct length if it's not pre-sized. Ensure it matches the length of the old tube when the shaft is at its operational length. Deburr and clean the cut ends of the tube.
5. Install the New Tubing: Slide the new tubing onto the yokes. Align the holes on the yokes with the holes on the tubing. Secure the tubing to the yokes using new roll pins or bolts. Grease the internal parts if necessary.
6. Reassemble the PTO Shaft: Reconnect the two halves of the PTO shaft. Ensure any telescoping parts move freely. Replace retaining bolts or pins.
7. Test the PTO Shaft: Reattach the PTO shaft to the tractor and implement. Start the tractor and engage the PTO at a low RPM to ensure smooth operation. Check for any unusual vibrations or noises.

Maintenance and Care of PTO Shaft Tubing

Proper maintenance and care of PTO shaft tubing are essential to ensure its longevity, safe operation, and optimal performance. Here are some important tips for maintaining and caring for PTO shaft tubing:

1. Regular Inspection: Periodically inspect the PTO shaft tubing for any signs of damage, wear, or misalignment. Look for cracks, dents, bends, or corrosion. Pay close attention to the areas where the tubing connects to fittings, couplings, or guards.
2. Lubrication: Apply a suitable lubricant to the PTO shaft and tubing as recommended by the manufacturer. This helps reduce friction and wear, ensuring smooth rotation.
3. Cleanliness: Keep the PTO shaft tubing clean and free from dirt, debris, and excessive grease. Regularly remove any buildup that may accumulate on the tubing or inside the guards. Use a soft brush or cloth to clean the surface and ensure unobstructed rotation.
4. Guard Maintenance: If your PTO shaft tubing is equipped with safety guards, inspect them regularly for any damage or signs of wear. Ensure that the guards are securely attached and in good condition. Replace any damaged or worn-out guards promptly to maintain safety.
5. Proper Storage: When the PTO shaft tubing is not in use, store it in a clean and dry area to prevent corrosion. Avoid exposing the tubing to harsh weather conditions or extreme temperatures. If possible, protect the tubing with suitable covers or storage containers.
6. Avoid Overloading: Do not exceed the recommended maximum torque or rotational speed for the PTO shaft tubing. Overloading can lead to premature wear, damage, or failure.

Why Choose AGKNX's PTO Shaft Tubes?

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, two hours to the Pudong Airport and one hour to the Xiaoshan Airport & the East of Hangzhou Station, Covered more than 12,000 m2 with over 100 people on staff. We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, industrial cardan shafts, car driveshafts, u-joint coupling shafts, PTO shaft torque limiters, PTO shaft tubes, PTO shaft yokes, and PTO shaft universal joints, etc. The annual turnover is 60 million RMB, 9 Million Dollars, and It??s increasing year by year. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. AGKNX Driveshaft insisted on our principles: Quality first, Deliver quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, AGKNX continues its activities with the aim of becoming a global company in the fields it works.

With state-of-the-art production facilities, a team of skilled professionals, and an unwavering commitment to quality, we are poised to deliver customized solutions to meet your specific needs. Our after-sales services team is always ready to assist with any concerns or inquiries you may have. We're not just a supplier, we're a partner who stands by you every step of the way.
