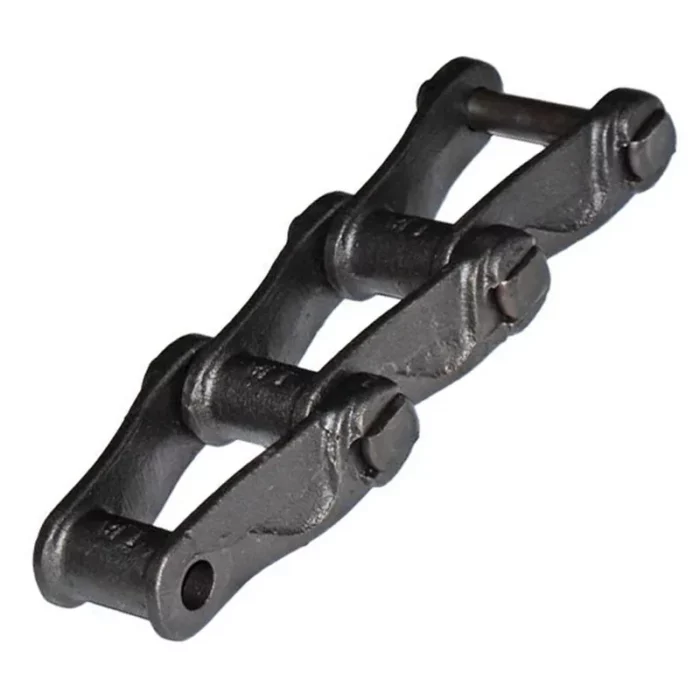

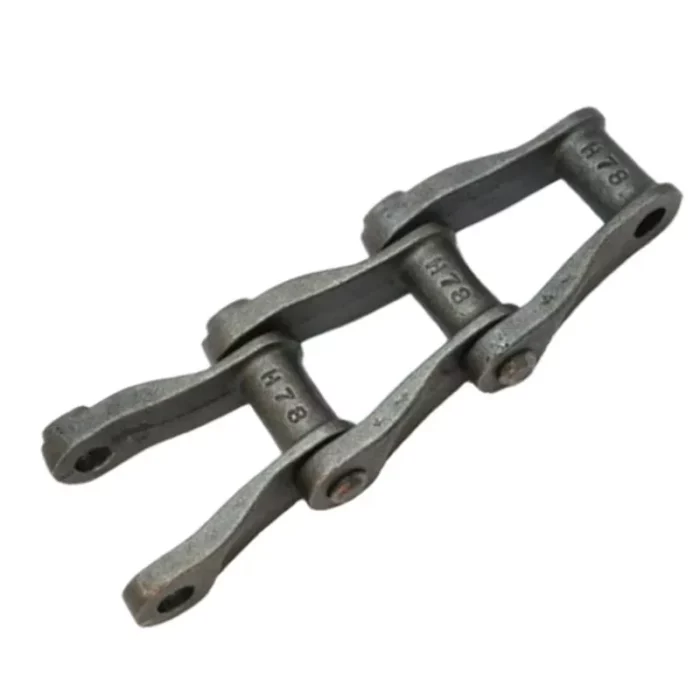

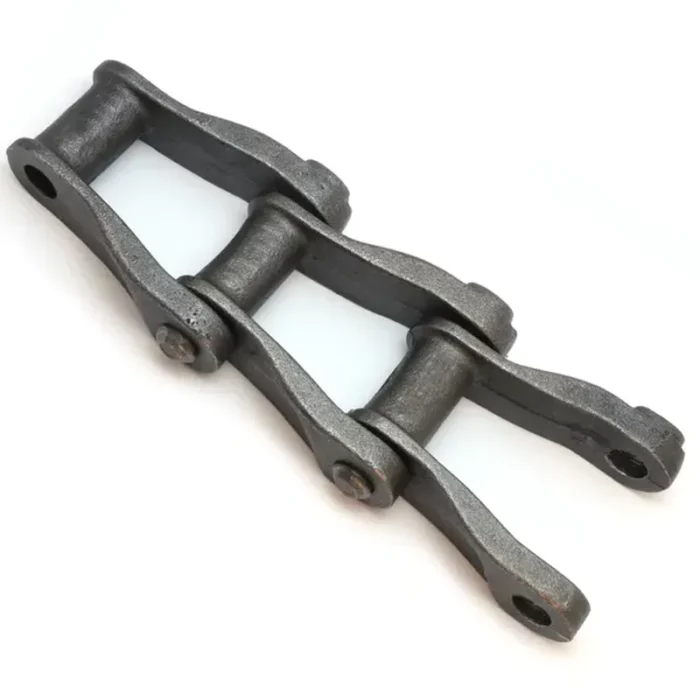

H Class Mill Chains H60 H74 H78 H79 H82 H87 H124

H Class Mill Chains are robust, heavy-duty industrial chains designed for demanding applications, primarily in the forest products, pulp, and paper industries. Featuring one-piece cast offset link construction, they are made from high-grade malleable iron or heat-treated for enhanced strength and wear resistance. These chains are ideal for drag conveyors, transfer, and conveying purposes, handling abrasive materials in harsh environments. Available in riveted or cottered construction, they are interchangeable with standard makes and often include reinforced sidebars and heat-treated pins for durability.

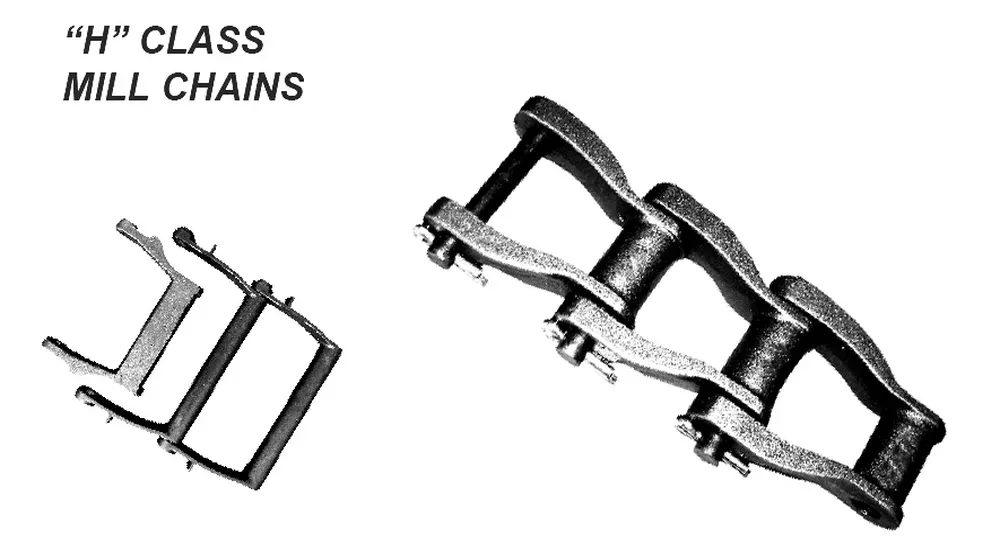

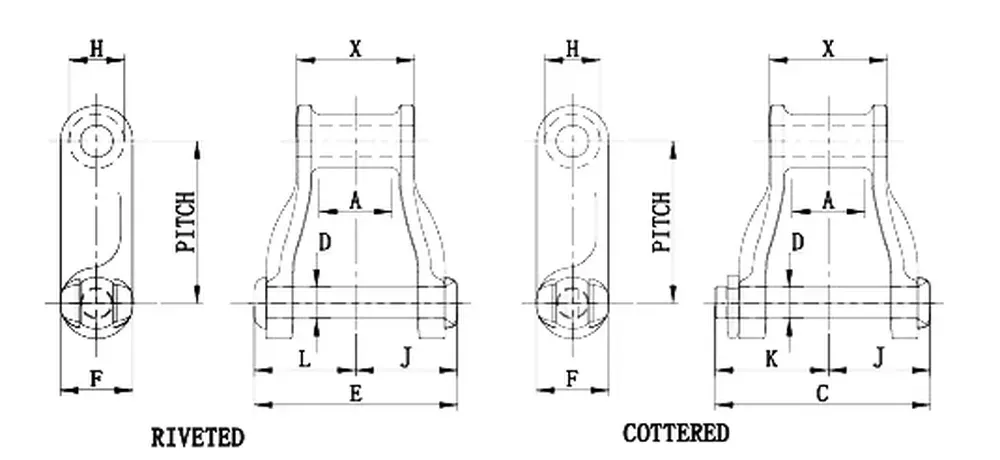

H Class Mill Chain Dimensions

Key Features of H Class Mill Chains

H Class Mill Chains are robust, versatile chains designed for heavy-duty industrial applications. Here are the key features:

1. High Strength and Durability: H Class Mill Chains are engineered for exceptional strength, capable of withstanding heavy loads and extreme conditions. Constructed from high-quality alloy steel or malleable iron, often heat-treated, they offer superior tensile strength, with some models like the H78 boasting up to 305,000 lbs. This durability ensures reliable performance in demanding environments like lumber, pulp, and paper industries, reducing downtime and maintenance costs.

2. Wear and Abrasion Resistance: These chains feature heat-treated components, including pins, bushings, and rollers, which enhance wear resistance. The use of materials like Duramal (heat-treated malleable iron) provides superior resistance to abrasion, making them ideal for abrasive atmospheres such as sawmills or waste handling. This extends service life and maintains performance under harsh conditions.

3. Reinforced Sidebars: H Class Mill Chains have reinforced sidebars, often equipped with wear shoes, which increase strength and provide extra wear surfaces. This design stiffens the links, reducing wear when operating in troughs or over floors, ensuring consistent performance in heavy-duty conveyor or drive applications, particularly in forestry and material handling.

4. Versatile Construction Options: Available in riveted or cottered construction, these chains offer flexibility for various applications. The one-piece cast offset link design, joined by steel clipped heads, allows easy assembly and disassembly. This interchangeability with other standard makes ensures compatibility and simplifies maintenance across diverse industrial setups.

5. Corrosion Resistance: The chains are treated with special coatings to resist corrosion, crucial for harsh industrial environments. This protection prevents rust and damage, extending the chain’s lifespan and reducing maintenance needs, especially in applications exposed to moisture, chemicals, or other corrosive elements, ensuring long-term reliability.

6. Wide Range of Attachments: These chains support various attachments (e.g., F4, H2, K1, K2) for customized applications. Attachments enable specialized conveying tasks, such as handling lumber, boxes, or crates, making the chains adaptable to unique operational needs in industries like forestry, agriculture, and waste management.

7. Suitability for Abrasive Environments: Designed for moderate duty in abrasive atmospheres, H Class Mill Chains excel in applications like refuse drag or transfer conveyors. Their robust construction and material properties allow them to handle abrasive materials, such as sawdust or waste, without compromising performance or requiring frequent replacements.

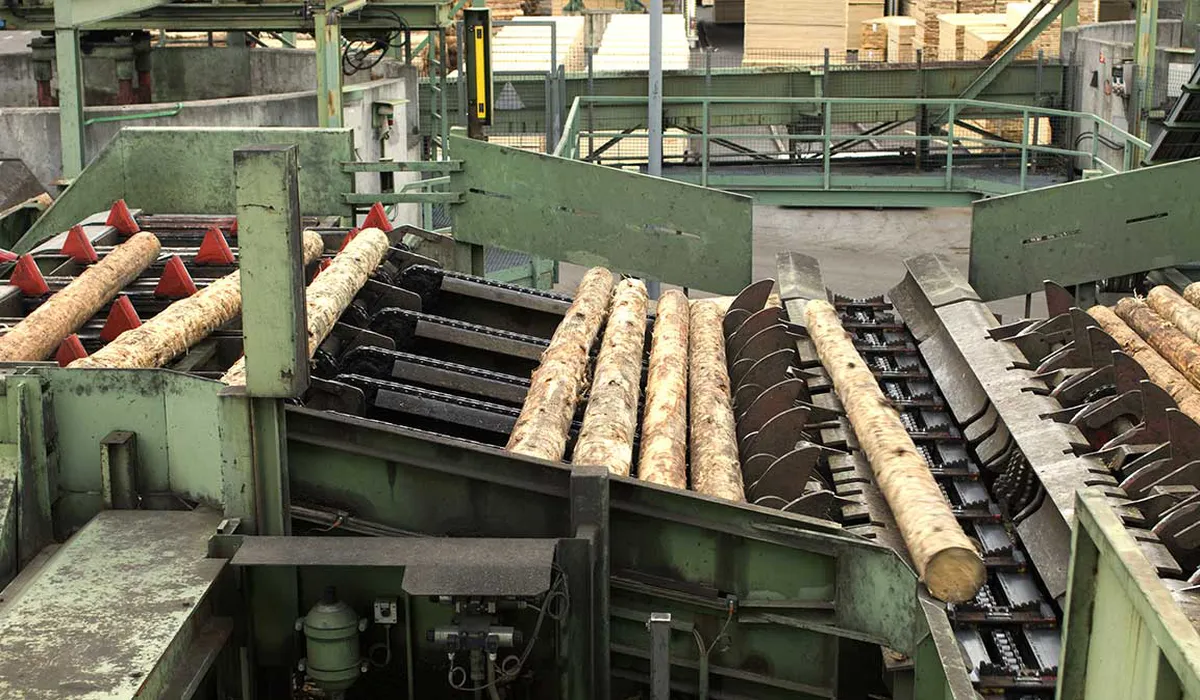

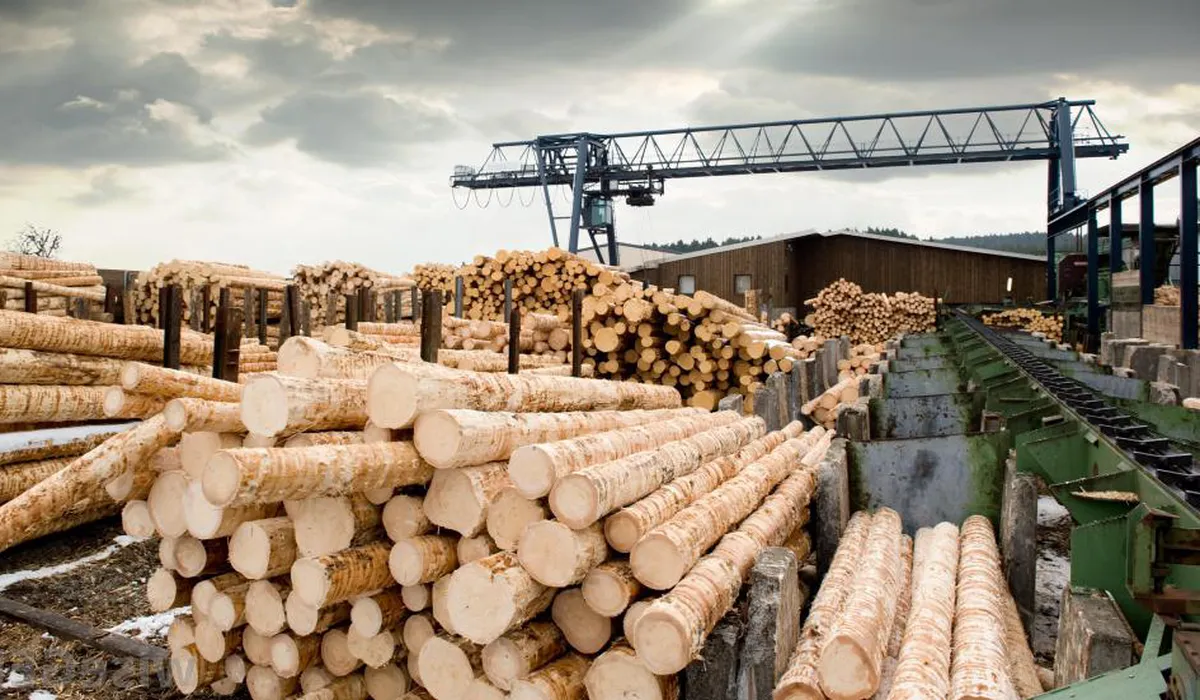

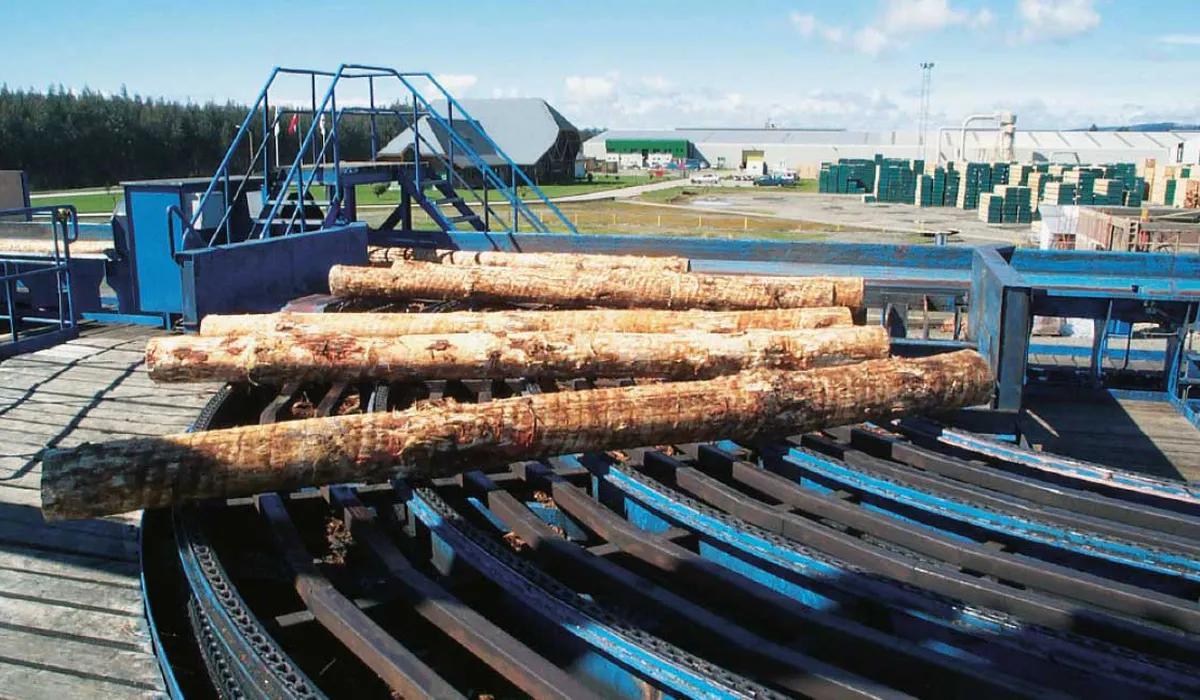

H Class Mill Chain Applications

H Class Mill Chains are robust, versatile chains designed for heavy-duty industrial applications. Here are the primary applications:

1. Forest Products Industry (Heavy Drives and Conveyors): H Class Mill Chains are extensively used in sawmills and pulp processing for heavy drives and transfer conveyors, handling logs, lumber, and wood chips in abrasive conditions. Their reinforced sidebars and durable construction ensure reliable performance under high loads and rough environments, making them ideal for continuous operation in forest product facilities.
2. Pulp and Paper Industry (Drag Conveyors): In the pulp and paper industry, H Class Mill Chains serve in drag conveyor systems to transport raw materials like wood chips or pulp through processing stages. Their ability to operate in dusty, abrasive atmospheres, combined with high tensile strength, ensures efficient material handling and minimal downtime in demanding production environments.
3. Forestry Applications (Rough Environments): These chains are employed in forestry for conveying materials in harsh, abrasive settings, such as handling timber or waste products. Reinforced sidebars and heat-treated components provide superior wear resistance and strength, ensuring longevity and performance in rugged outdoor conditions with minimal maintenance.
4. Waste Water Treatment (Conveyor Systems): H Class Mill Chains are used in wastewater treatment facilities to move sludge and other abrasive waste materials through conveyors. Their robust design, with cast malleable iron or Promal, resists corrosion and wear, ensuring reliable operation in wet, corrosive environments while maintaining structural integrity.
5. Lumber Handling (Transfer Chains): In lumber yards and processing plants, H Class Transfer Chains, often called “rooftop” or “camelback” chains, carry concentrated loads like lumber, boxes, or crates in troughs. Their design allows smooth operation with only link tops protruding, reducing wear and ensuring efficient material transfer.
