Hydraulic Power Unit for Logistics Equipment/ Mining Machinery/ Agricultural Machinery/ Loaders/ Snowplows

A hydraulic power unit is a crucial component in various mechanical systems, serving as the primary source of power for hydraulic machinery. It is a self-contained system designed to generate, control, and deliver pressurized hydraulic fluid, which drives the operation of equipment such as logistics systems, automobile warranty equipment, mining machinery, agricultural machinery, machine tool fixtures, automobiles, loaders, snowplows, and lifting platforms. The hydraulic power unit typically consists of a motor (electric or diesel), a hydraulic pump, a reservoir to store hydraulic fluid, filters, pressure control valves, and a heat exchanger to regulate temperature.

A hydraulic power unit is a crucial component in various mechanical systems, serving as the primary source of power for hydraulic machinery. It is a self-contained system designed to generate, control, and deliver pressurized hydraulic fluid, which drives the operation of equipment such as logistics systems, automobile warranty equipment, mining machinery, agricultural machinery, machine tool fixtures, automobiles, loaders, snowplows, and lifting platforms. The hydraulic power unit typically consists of a motor (electric or diesel), a hydraulic pump, a reservoir to store hydraulic fluid, filters, pressure control valves, and a heat exchanger to regulate temperature.

In logistics and lifting platforms, the hydraulic power unit ensures smooth and precise lifting, lowering, and positioning of heavy loads. In agricultural and mining machinery, it powers tools and implements, enabling efficient digging, plowing, or hauling. Snowplows and loaders rely on hydraulic power units for blade and bucket movement, while automobile warranty equipment and machine tool fixtures use them for precise positioning and clamping. Robust and versatile, hydraulic power units are indispensable in industries requiring high power density and reliability.

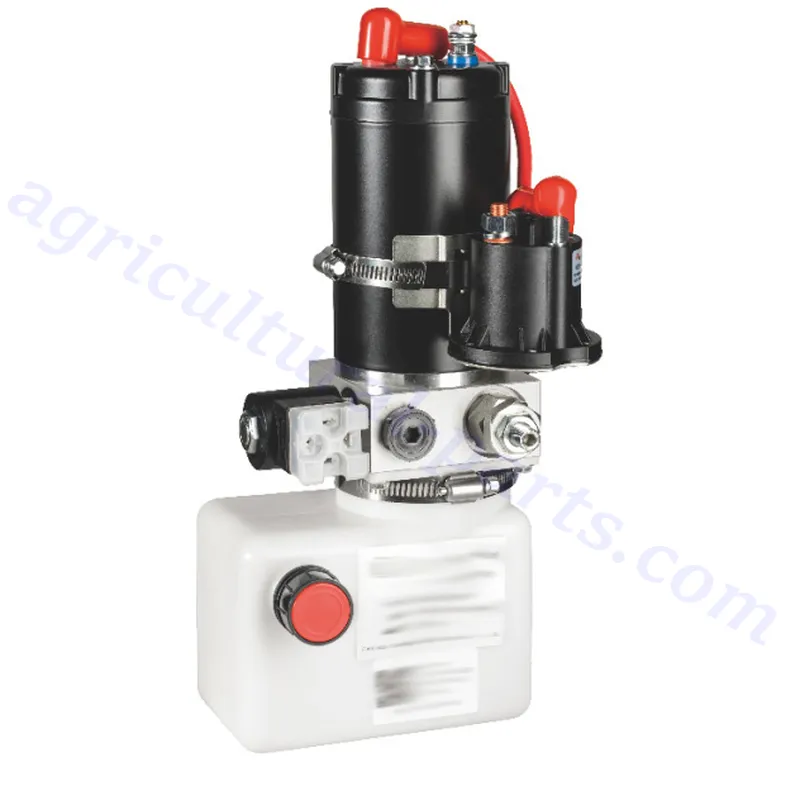

Hydraulic Power Unit

Hydraulic Power Unit Technical Data

  • Pump displacement: 0.17~8ml/r
  • Rated flow rate Q:2~18L/min
  • Rated pressure: 21MPa
  • Noise: ≤70dB
  • Maximum working pressure: 28MPa
  • Interface thread: G1/4,M16x1.5, can be customized
  • DC motor DC voltage: 12V,24V,36V,48V
  • AC motor AC voltage: 110V, 220V, 380V
  • DC motor power: 0.5kW, 0.8kW, 1.6kW, 2.2kW, 3kW.
  • AC motor power: 0.75kW, 1.1kW, 1.5kW, 2.2kW

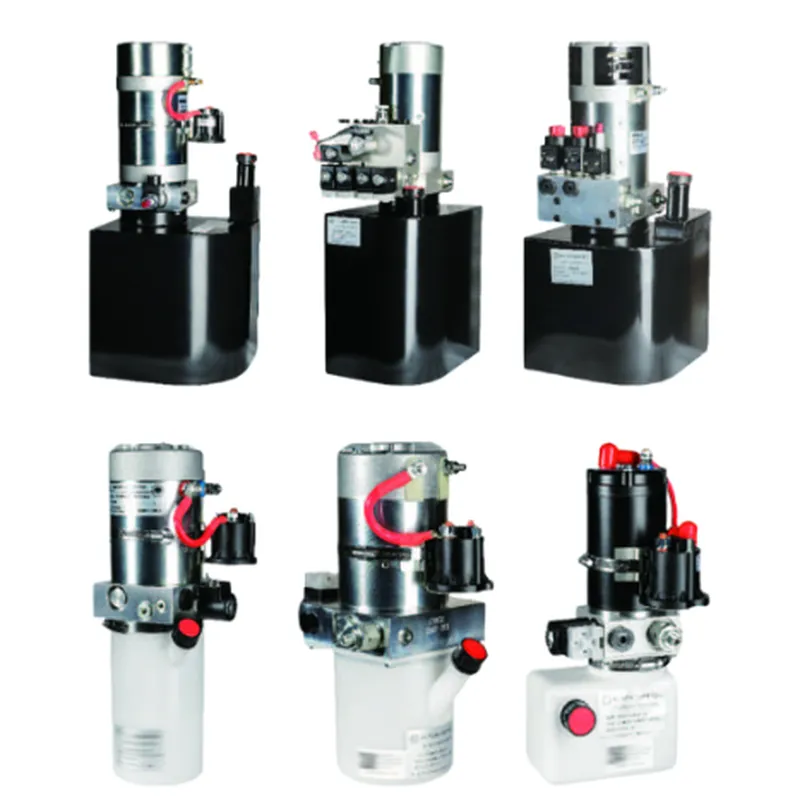

Types of Hydraulic Power Unit

TechnicaI parametersAMB155
(Electric Pallet Trucks Series)
48V
(Electric Pallet Trucks Series)
ABS200/300 series
De voltage (V)24/484824
Motor power (kW)0.82.22.2
Rated speed (r/min)310027002750
Pump displacement (ml/r)11.81.6
Noise (dB)<70<70<70
Overflow valve (MPa)162115/16
Electromagnetic valveElectromagnetic Directional valveElectromagnetic Directional valveElectromagnetic Directional valve
Throttle valve (Umin)466
Port screw threadG1/40 M14x1.5、M16x1.5、Can be customized

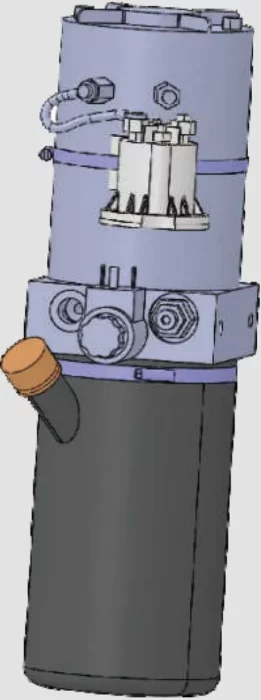

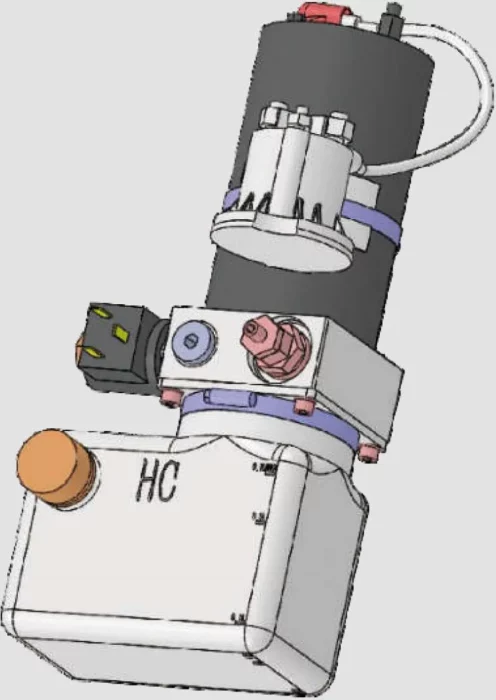

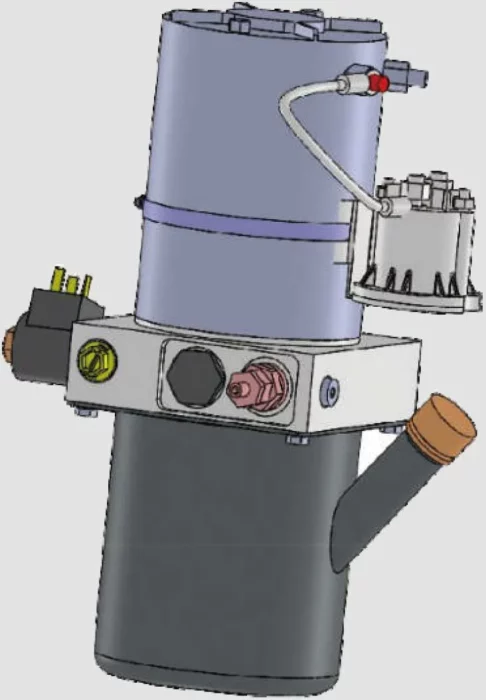

Three-dimensional drawingHydraulic Power UnitHydraulic Power UnitHydraulic Power Unit

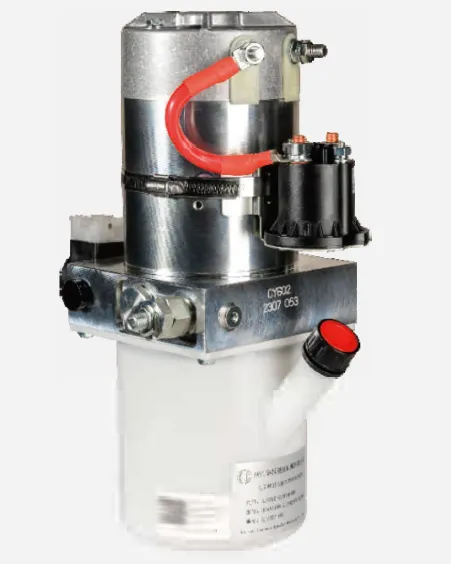

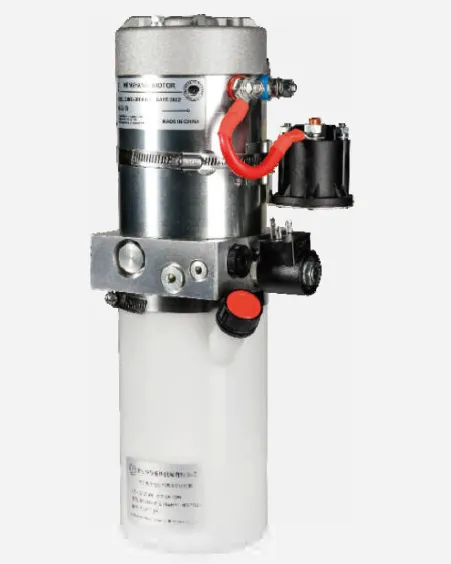

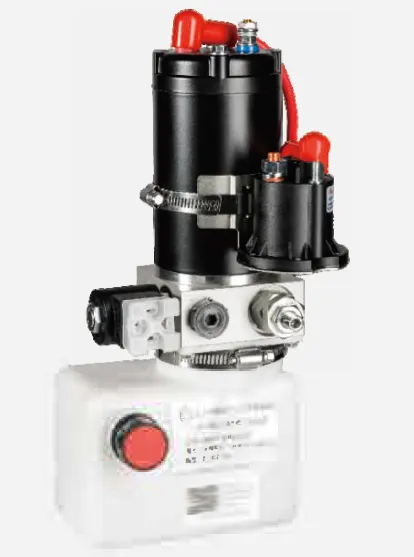

Physical photosHydraulic Power UnitHydraulic Power UnitHydraulic Power Unit

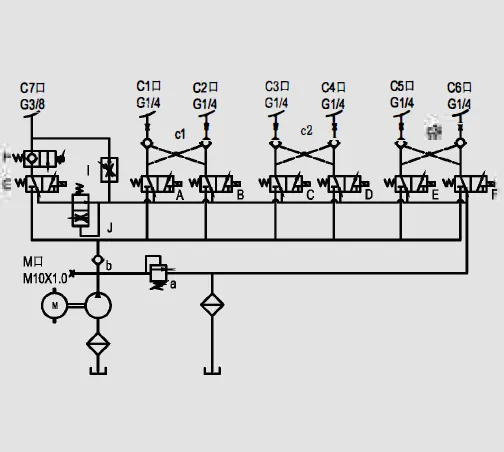

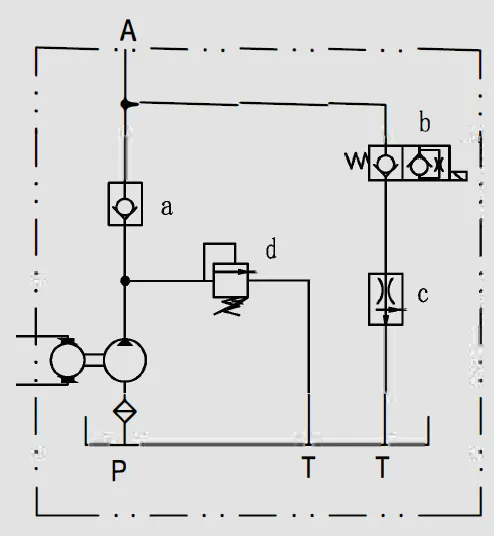

Hydraulic principle diagramHydraulic Power Unit
TechnicaI parametersABDS201 Piling truck seriesForward stacker car seriesPicking up cart series
De voltage (V)242424
Motor power (kW)2.2/3.03.03.2
Rated speed (r/min)2750/285028503150
Pump displacement (ml/r)2.7/3.73.73.7
Noise (dB)<70<70<70
Overflow valve (MPa)18/2020.521
Electromagnetic valveProportional Electromagnetic valveProportional Electromagnetic valveProportional Electromagnetic valve
Throttle valve (Umin)171515
Port screw threadG1/40 M14x1.5、M16x1.5、Can be customized

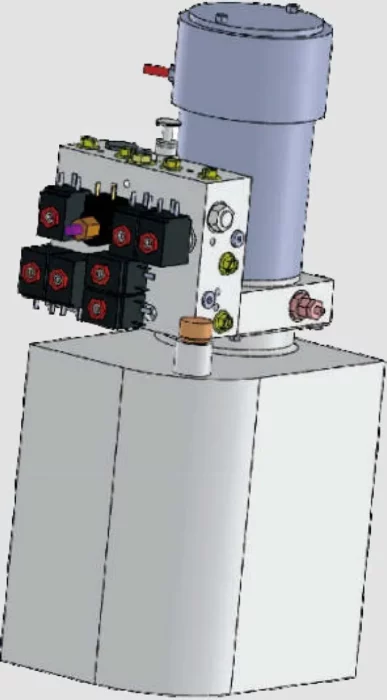

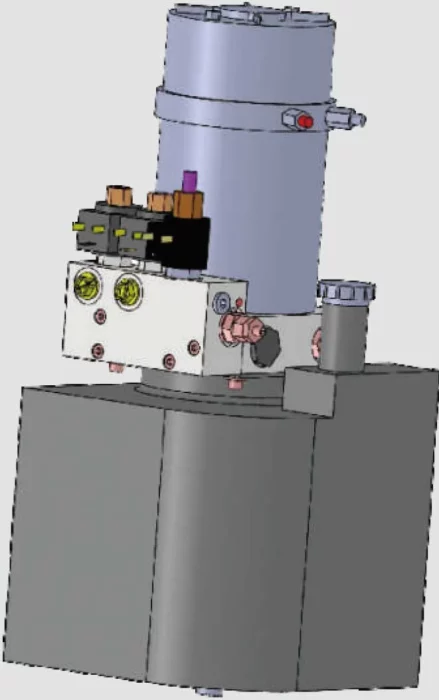

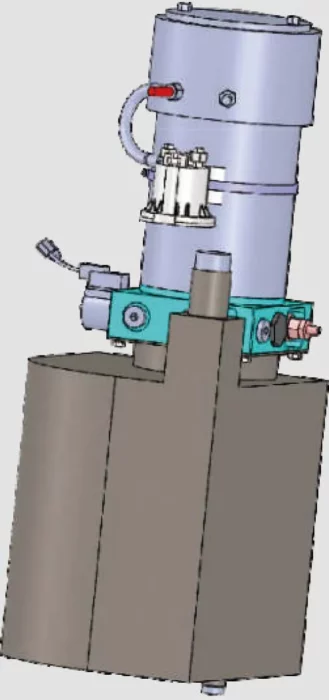

Three-dimensional drawingHydraulic Power UnitHydraulic Power UnitHydraulic Power Unit

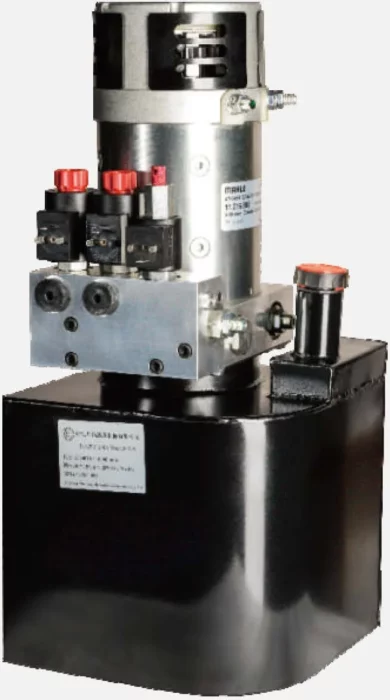

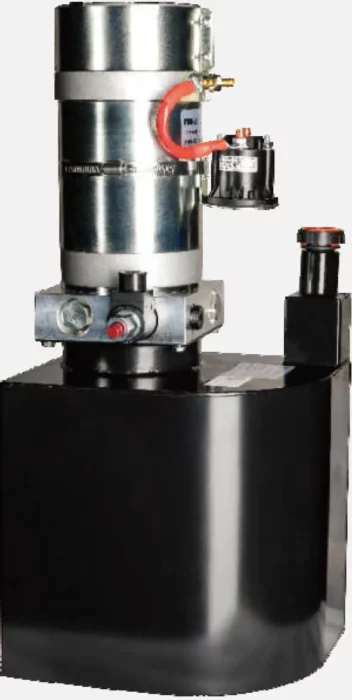

Physical photosHydraulic Power UnitHydraulic Power UnitHydraulic Power Unit

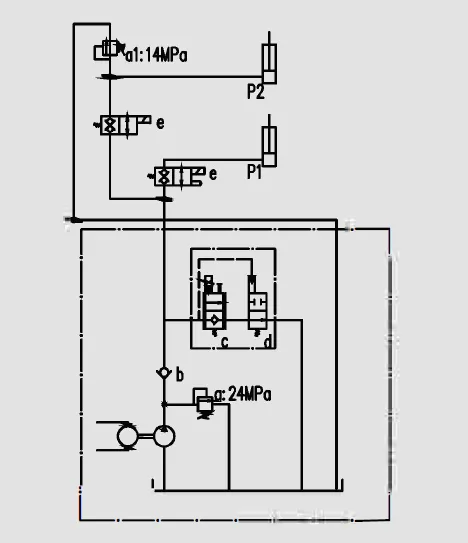

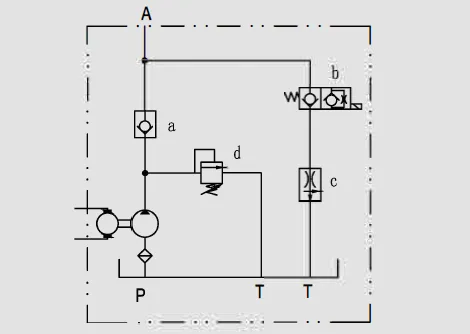

Hydraulic principle diagramHydraulic Power UnitHydraulic Power UnitHydraulic Power Unit

Key Features of Hydraulic Power Unit

  • Mainly used in logistics equipment, automobile warranty equipment, mining machinery, agricultural machinery, machine tool fixtures, automobiles, loaders, snowplows, and lifting platforms.
  • Simple principle, reliable performance, easy maintenance.
  • Compact structure, beautiful appearance, and layout occupy a small space size.
  • Through the combination of different hydraulic valves, there are more than 200 kinds of hydraulic circuits for customers to choose.
  • Adopt high efficiency, low noise, small volume of high-pressure small-displacement gear pumps, and pump displacement selection range.
  • Adopting direct current/accommodating current (DC\AC) motors with a wide range of motor voltage options.
  • Adoption of high-performance, zero-leakage cartridge valves with good pressure-holding performance.
  • Small pressure loss of each valve, low energy consumption, economic and environmental protection.
  • Manual emergency operation directional valve can be used, high safety.
  • The electromagnetic proportional reversing valve can be used to realize the proportional control of the running
    speed of the actuator;
  • The electromagnetic proportional reversing valve can be used to realize the proportional control of the running
    speed of the actuator;
  • Return oil using a throttle valve, steady drop, small hydraulic impact;
  • The valve block is made of high-strength aluminum alloy, lightweight and not easy to rust;
  • The use of a universal standard jack, good technology;
  • Electric control or manual operation;

Hydraulic Power Unit

Why Choose AGKNX's Hydraulic Power Unit?

AGKNX is a professional manufacturer of middle and high-end hydraulic cylinders. It is the largest domestic forklift hydraulic cylinder, aerial work truck hydraulic cylinder, industrial vehicle hydraulic cylinder, and manufacturing base. The company has a hydraulic products testing room and a high-tech research and development center, with key equipment development and production of independent intellectual property rights. Perfect quality assurance system, complete production and testing means, and strong technical development ability.

The company's products mainly include forklift hydraulic cylinders, industrial vehicle hydraulic cylinders, construction machinery hydraulic cylinders, aerial work truck hydraulic cylinders, sanitation machinery hydraulic cylinders, wind power hydraulic cylinders, agricultural machinery hydraulic cylinders, and other supporting equipment. In addition to manufacturing medium and high-end hydraulic cylinders, we also produce hydraulic cylinder parts and forklift attachment cylinders. At present, AGKNX's hydraulic cylinder products are sold to many countries and regions around the world. If you cannot find what you need in our inventory, please feel free to consult us for the manufacture of custom hydraulic cylinders. We can meet unique size or design requirements to meet your specific application needs.
