Jib Hydraulic Cylinder for Arm Type Aerial Work Platforms

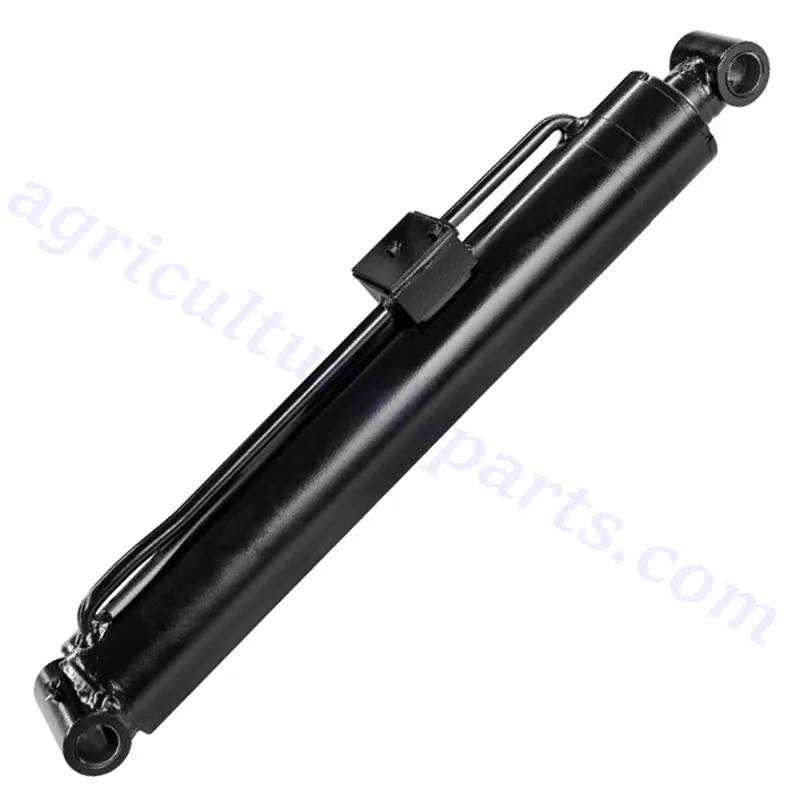

The jib hydraulic cylinder for arm-type aerial work platforms is a specialized hydraulic component designed to control the movement of the jib, which is the articulated extension of the main boom. This cylinder provides precise motion and positioning for the jib, enabling enhanced maneuverability and flexibility when operating at elevated heights. It plays a critical role in applications where workers or tools need to reach confined spaces, awkward angles, or areas with limited access.

Constructed with high-strength materials, the jib hydraulic cylinder is engineered to withstand heavy loads and challenging environmental conditions, such as extreme temperatures or exposure to dust and moisture. It operates by converting hydraulic pressure into mechanical force, allowing the jib to extend, retract, or pivot smoothly. This controlled motion is essential for safety and efficiency in industries like construction, maintenance, and utilities, where aerial work platforms are commonly used.

Jib Hydraulic Cylinder Specifications

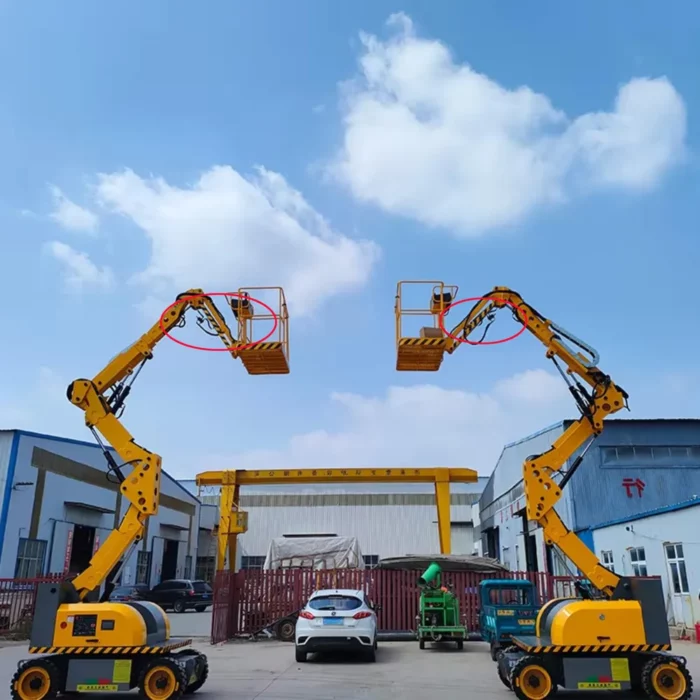

Function of Jib Hydraulic Cylinder for Arm Type Aerial Work Platforms

The jib hydraulic cylinder for arm-type aerial work platforms plays a crucial role in facilitating precise control and movement of the jib, which is the smaller, articulated extension of the platform's main boom. Its primary function is to enable the jib's extension, retraction, and angular adjustments, allowing the aerial work platform to access hard-to-reach areas with greater precision and flexibility. This functionality is essential in various industries, such as construction, maintenance, utilities, and warehousing, where workers need to perform tasks at elevated heights with precision and safety.

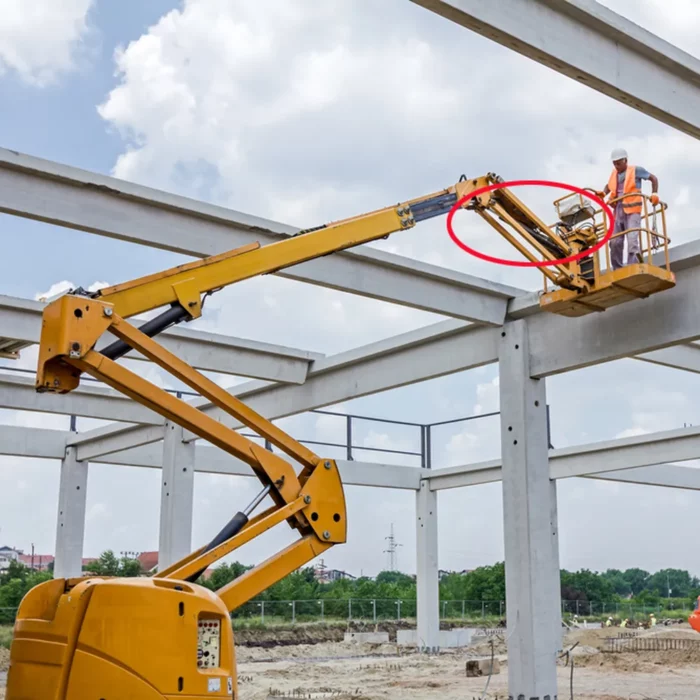

The hydraulic cylinder operates by converting hydraulic fluid pressure into mechanical force. This force moves the piston within the cylinder, enabling controlled motion of the jib. This mechanism allows the operator to position the platform precisely, even in tight or awkward spaces. For example, the jib hydraulic cylinder can adjust the angle or length of the jib to navigate obstacles, such as building structures or equipment, ensuring that workers or tools can access the desired location effectively.

Safety is another critical function of the jib hydraulic cylinder. By providing smooth and controlled movements, it reduces the risk of sudden or jerky motions, which could destabilize the platform and endanger workers. The cylinder's robust construction, typically made from durable and high-strength materials, ensures reliable performance under heavy loads and various environmental conditions, such as extreme temperatures, moisture, or dust.

How to Replace a Damaged Jib Hydraulic Cylinder

Replacing a damaged jib hydraulic cylinder for arm-type aerial work platforms is a task that requires precision and attention to detail to ensure the safety and functionality of the equipment. Here are some steps on how to replace a damaged jib hydraulic cylinder:

1. Secure the Aerial Work Platform: Position the platform on a flat, stable surface and engage all safety mechanisms, including locking the boom and jib in place. Depressurize the hydraulic system by turning off the machine and releasing residual pressure to prevent accidental fluid leaks or movement during replacement.
2. Disconnect Hydraulic Lines and Mounting Points: Carefully disconnect the hydraulic lines attached to the damaged cylinder, ensuring to catch any leaking fluid with a container. Unscrew and remove the mounting bolts securing the cylinder to the jib and boom, keeping track of hardware to avoid misplacement during reassembly.
3. Remove the Damaged Cylinder: Once disconnected, remove the damaged hydraulic cylinder from its position. Use appropriate lifting equipment if the cylinder is heavy. Inspect surrounding components for wear or damage, such as seals, hoses, or fittings, and replace them as needed to ensure overall system integrity.
4. Install the New Hydraulic Cylinder: Align the new cylinder with the mounting points, securing it with bolts. Reconnect the hydraulic lines, ensuring they are tightened properly to prevent leaks. Use new washers or seals if required for a leak-free connection, and double-check all fasteners for tightness.
5. Test the System and Refill Hydraulic Fluid: Refill the hydraulic system with the manufacturer-recommended fluid and bleed air from the lines to ensure proper operation. Test the new cylinder by operating the jib through its full range of motion, ensuring smooth and controlled performance without leaks or unusual noises.

Other Arm Type Aerial Work Platform Hydraulic Cylinders

In addition to the jib hydraulic cylinders, arm type aerial work platforms typically incorporate several other hydraulic cylinders to facilitate various functions. Here are some common hydraulic cylinders found in arm-type aerial work platforms:

1. Luffing Hydraulic Cylinders: Luffing hydraulic cylinders are responsible for controlling the vertical up-and-down movement of the platform arm. These cylinders enable precise positioning of the platform by adjusting the arm's angle. They provide stability and smoothness during operations, ensuring safe movement even when handling heavy loads or working at extreme heights.
2. Leveling Hydraulic Cylinders: Leveling hydraulic cylinders maintain the platform's horizontal position, compensating for uneven terrain or shifts in the arm's position. By dynamically adjusting the platform’s tilt, these cylinders enhance safety and operational efficiency, allowing workers to perform tasks on a stable surface regardless of the environment or arm configuration.
3. Steering Hydraulic Cylinders: Steering hydraulic cylinders control the movement of the wheels or tracks in arm-type aerial work platforms, enabling precise steering and maneuverability. These cylinders ensure smooth directional changes, especially in tight spaces or challenging terrain, enhancing the platform's mobility and adaptability in various construction or maintenance environments.
4. Telescopic Hydraulic Cylinders: Telescopic hydraulic cylinders provide the extension and retraction capabilities of the platform’s arm. They allow the arm to reach greater heights or distances by extending in multiple stages. These cylinders ensure smooth, controlled arm movement, enabling operators to access hard-to-reach areas with precision and stability.
5. Floating Hydraulic Cylinders: Floating hydraulic cylinders are designed to allow slight movements or adjustments to absorb shocks and vibrations during operations. These cylinders improve stability by compensating for minor shifts in load or terrain, reducing stress on other components and enhancing the overall durability and safety of the aerial work platform.
