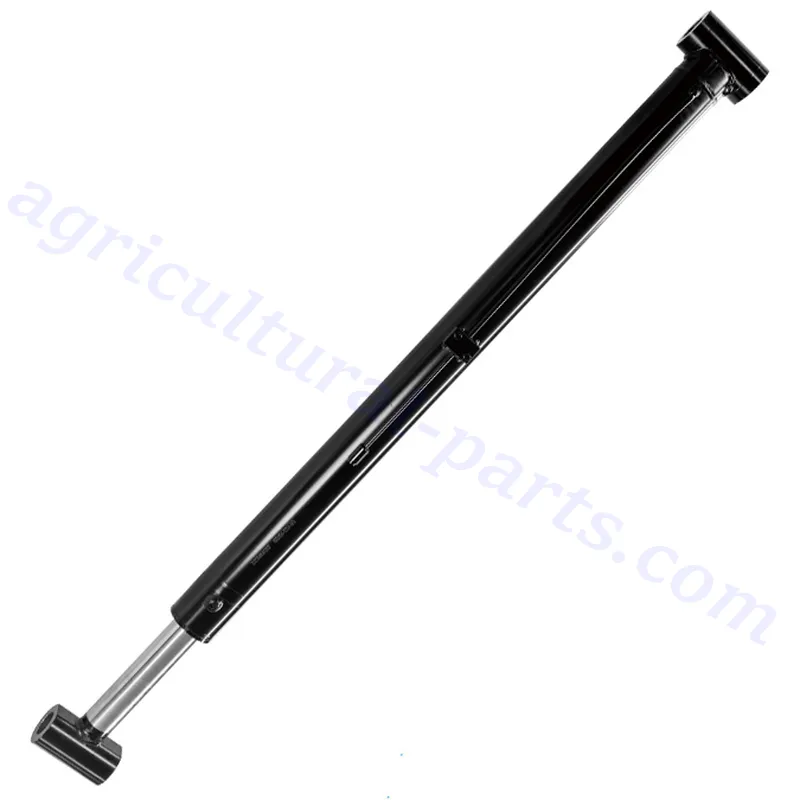

Lifting Hydraulic Cylinder for Scissor Type Aerial Work Platforms

A lifting hydraulic cylinder for scissor-type aerial work platforms is a critical mechanical component designed to facilitate the vertical movement of the platform. These cylinders are integral to the operation of scissor lifts, which are widely used in construction, maintenance, and industrial settings for safely elevating workers, tools, and materials to various heights. The hydraulic cylinder functions by converting hydraulic energy, generated by pressurized fluid, into linear mechanical force. This force extends or retracts the cylinder's piston, causing the scissor arms to expand or contract, thereby raising or lowering the platform.

The hydraulic cylinder typically consists of a robust cylinder barrel, a piston rod, seals, and hydraulic fluid, all engineered to handle significant loads and high-pressure conditions. Heavy-duty materials, such as steel or alloy, are used to ensure durability and resistance to wear. These cylinders are designed to provide smooth and controlled lifting motion, precise positioning, and stability, which are essential for ensuring safety during operation.

Lifting Hydraulic Cylinder Specifications

Function of Lifting Hydraulic Cylinder for Scissor Type Aerial Work Platforms

The lifting hydraulic cylinder for scissor-type aerial work platforms is a vital component that enables the vertical motion of the platform by converting hydraulic energy into linear mechanical force. Its primary function is to facilitate the raising and lowering of the platform in a safe, smooth, and controlled manner, ensuring stability and precision during operation.

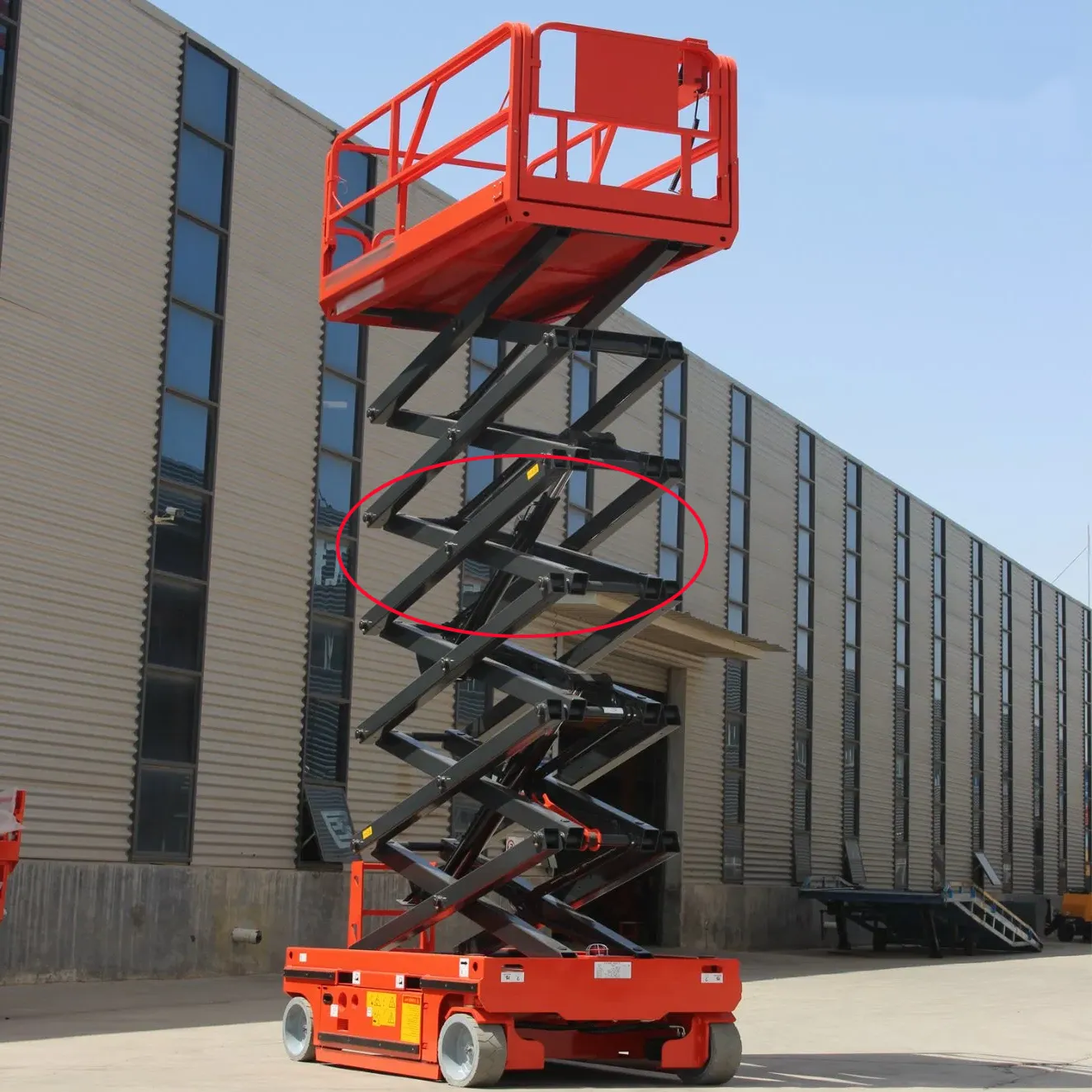

The hydraulic cylinder operates based on Pascal’s principle, which states that pressure applied to a confined fluid is transmitted equally throughout the fluid in all directions. In the case of a scissor lift, hydraulic fluid is pressurized and delivered to the cylinder, forcing the piston to extend or retract. This movement directly influences the scissor arms, causing them to expand outward or collapse inward. As the scissor arms expand, the platform is elevated; when they contract, the platform is lowered. This mechanism allows the platform to reach specific heights with exceptional accuracy.

The lifting hydraulic cylinder is designed to handle substantial loads, as scissor lifts are often used to transport both workers and heavy tools or materials. It ensures a smooth lifting operation that minimizes jerks or sudden drops, which could compromise safety. High-quality seals within the cylinder prevent fluid leakage and maintain consistent pressure, further enhancing the reliability and durability of the system.

Scissor Type Aerial Work Platform Lifting Hydraulic Cylinder Maintenance

Maintaining the lifting hydraulic cylinder in a scissor type aerial work platform is crucial for ensuring the platform's safe and efficient operation. Here are some key maintenance practices to keep the hydraulic cylinder in optimal condition:

1. Regular Inspection for Leaks: Periodically inspect the hydraulic cylinder for any fluid leaks around seals, hoses, or connections. Leaks not only reduce hydraulic pressure but can also lead to system failure and unsafe operations. Early detection of leaks helps prevent further damage and ensures the cylinder functions efficiently.
2. Monitoring Hydraulic Fluid Levels and Quality: Maintain proper hydraulic fluid levels and check its quality regularly. Contaminated or degraded hydraulic fluid can damage internal components, reduce lubrication, and cause inefficiencies in the system. Replace fluid as per manufacturer recommendations to ensure smooth and safe operation of the cylinder.
3. Checking and Replacing Seals: The seals in the hydraulic cylinder are prone to wear and tear over time due to high pressure and continuous use. Inspect the seals for cracks, hardening, or deformation. Replace damaged seals promptly to prevent leaks and maintain proper hydraulic pressure for effective lifting.
4. Lubricating Moving Parts: Ensure that all moving parts of the hydraulic system, including the piston rod and scissor arm joints, are properly lubricated. Adequate lubrication minimizes friction, prevents wear, and extends the life of the cylinder and the overall scissor lift mechanism.
5. Routine Cleaning of the Cylinder Exterior: Keep the cylinder clean by removing dirt, debris, and any hydraulic fluid residue from its surface. Accumulated contaminants can cause corrosion or interfere with the proper movement of the cylinder and piston rod, compromising the efficiency and durability of the system.

Other Scissor Type Aerial Work Platform Hydraulic Cylinders

In addition to the lifting hydraulic cylinder, scissor type aerial work platforms may include other types of hydraulic cylinders to facilitate various functions and movements. Here are some common types of hydraulic cylinders found in scissor type aerial work platforms:

1. Steering Hydraulic Cylinders: Steering hydraulic cylinders are responsible for maneuvering the scissor lift by controlling the direction of the wheels. These cylinders provide precise control and smooth movement, enabling operators to navigate narrow or crowded spaces effectively. Proper maintenance ensures accurate steering, crucial for safety and stability during platform operation.
2. Floating Hydraulic Cylinders: Floating hydraulic cylinders are designed to absorb uneven terrain or slight platform shifts, ensuring that the scissor lift remains balanced during operation. These cylinders allow for controlled flexibility, reducing strain on the structure and providing stability on irregular surfaces. Their functionality is crucial for worker safety at elevated heights.
3. Support Hydraulic Cylinders: Support hydraulic cylinders enhance the overall stability of the scissor lift by helping to distribute the load evenly across the platform. These cylinders provide additional structural support when the lift is stationary or under heavy load, ensuring that the platform remains secure and preventing accidental tilting or instability.

Why Choose AGKNX's Aerial Work Vehicle Hydraulic Cylinders?

AGKNX is a professional manufacturer specializing in medium and high-end hydraulic cylinders. It is the largest domestic production base for forklift hydraulic cylinders, aerial work truck hydraulic cylinders, and industrial vehicle hydraulic cylinders. The company boasts advanced facilities, including a hydraulic product testing laboratory and a high-tech research and development center, with independently developed key equipment and intellectual property rights. AGKNX is equipped with a comprehensive quality assurance system, complete production and testing capabilities, and strong technical development expertise.

The company’s product range primarily includes forklift hydraulic cylinders, industrial vehicle hydraulic cylinders, construction machinery hydraulic cylinders, aerial work truck hydraulic cylinders, sanitation machinery hydraulic cylinders, wind power hydraulic cylinders, agricultural machinery hydraulic cylinders, and various other supporting equipment. In addition to manufacturing medium and high-end hydraulic cylinders, AGKNX also produces hydraulic cylinder components and forklift parts cylinders.

Currently, AGKNX’s hydraulic cylinder products are sold across numerous countries and regions worldwide. If you are unable to find the specific product you require in our inventory, we encourage you to contact us for custom hydraulic cylinder manufacturing. We can meet unique size or design requirements tailored to your specific applications.
