Luffing Hydraulic Cylinder for Telescopic Crawler Crane

A luffing hydraulic cylinder for a telescopic crawler crane is a critical component designed to control the angle and movement of the crane's boom. Specifically, "luffing" refers to the action of raising or lowering the boom to adjust its angle relative to the crane's base. The hydraulic cylinder facilitates this movement by using hydraulic pressure to extend or retract, effectively altering the boom's inclination. This capability is essential for positioning loads accurately and safely in various operational scenarios.

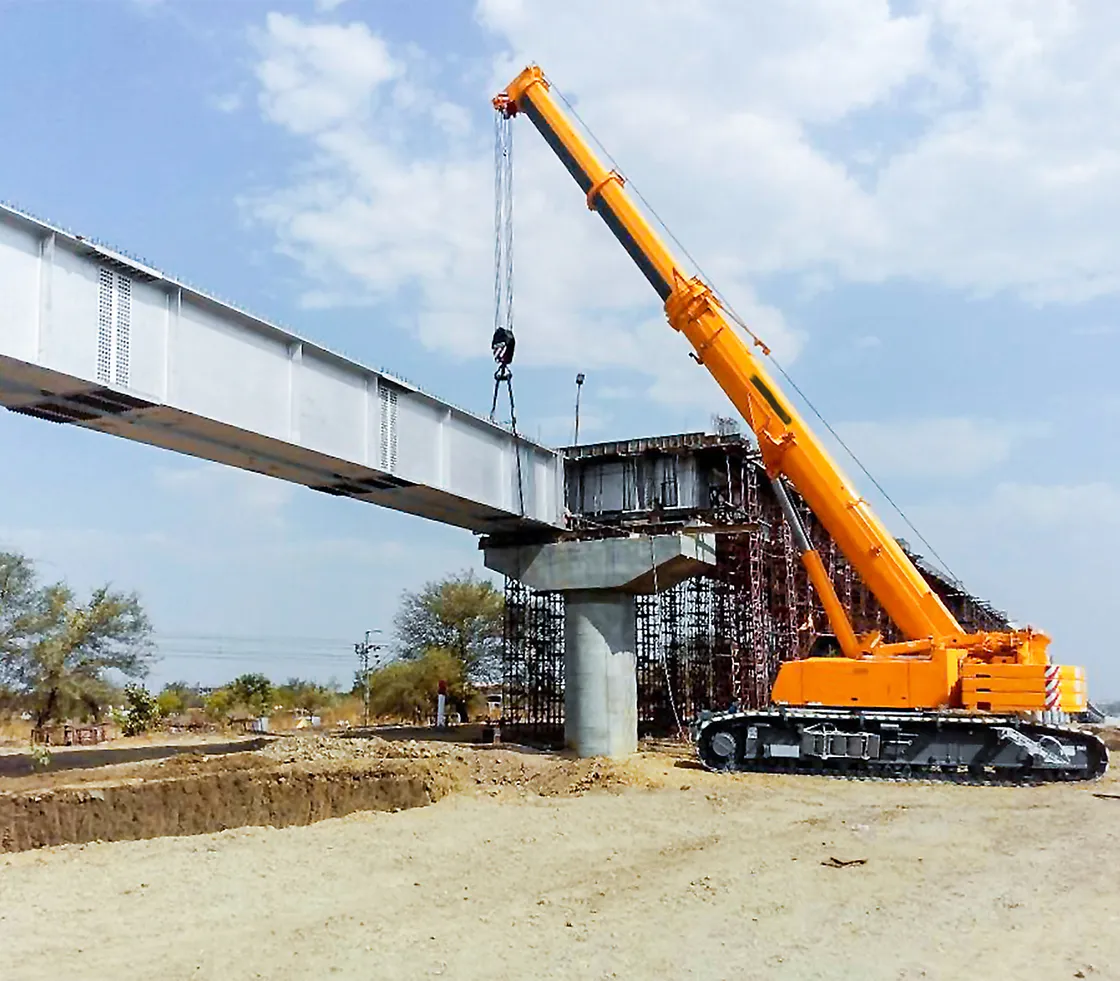

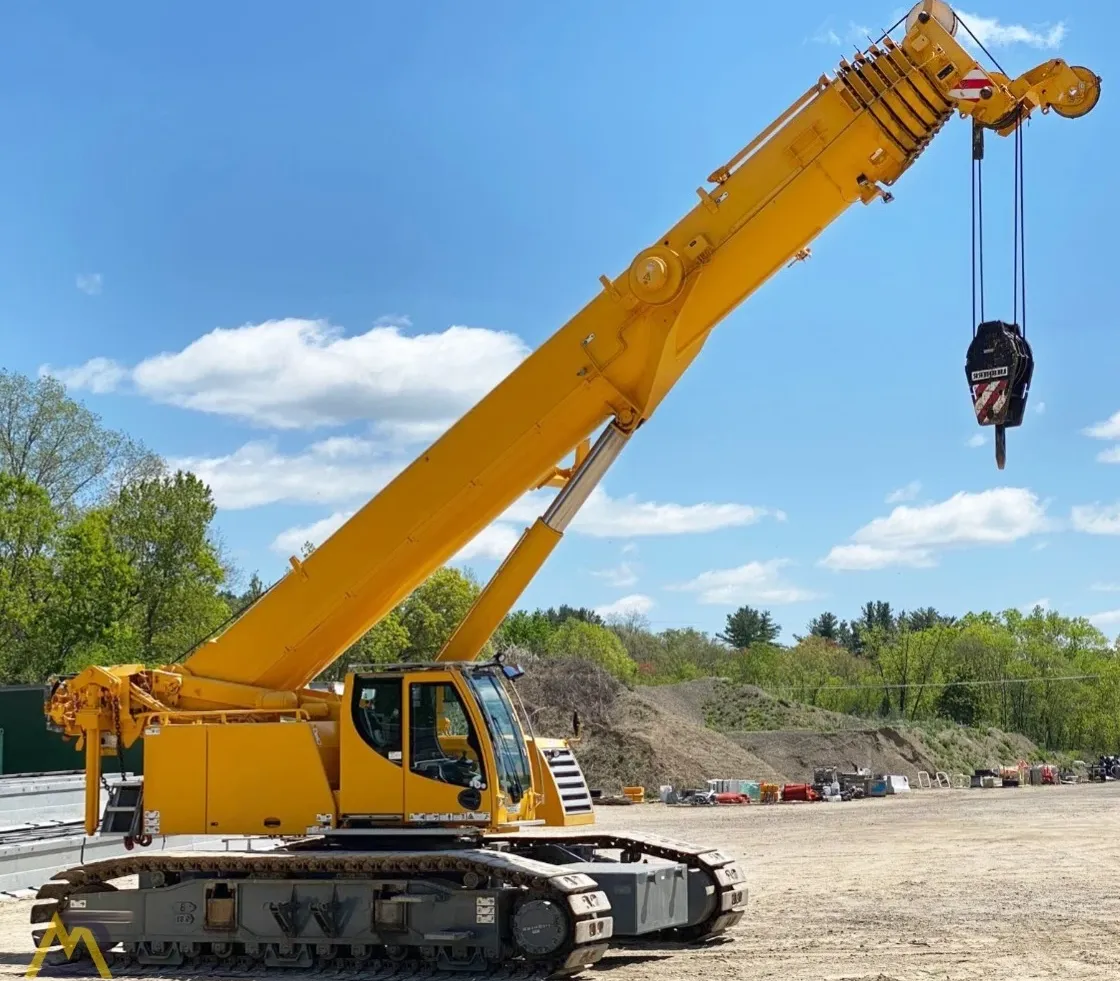

In telescopic crawler cranes, the boom consists of extendable sections (telescopic segments) that allow it to reach varying lengths. The luffing hydraulic cylinder works in tandem with these telescoping sections, enabling fine adjustments to the boom's angle while maintaining stability and lifting capacity. It is robustly built to handle the immense forces exerted during lifting operations, ensuring both precision and safety. By utilizing hydraulic power, the cylinder provides smooth, controlled movement, which is crucial for working in confined spaces or under challenging conditions.

Luffing Hydraulic Cylinder Specifications

Function of Luffing Hydraulic Cylinder for Telescopic Crawler Crane

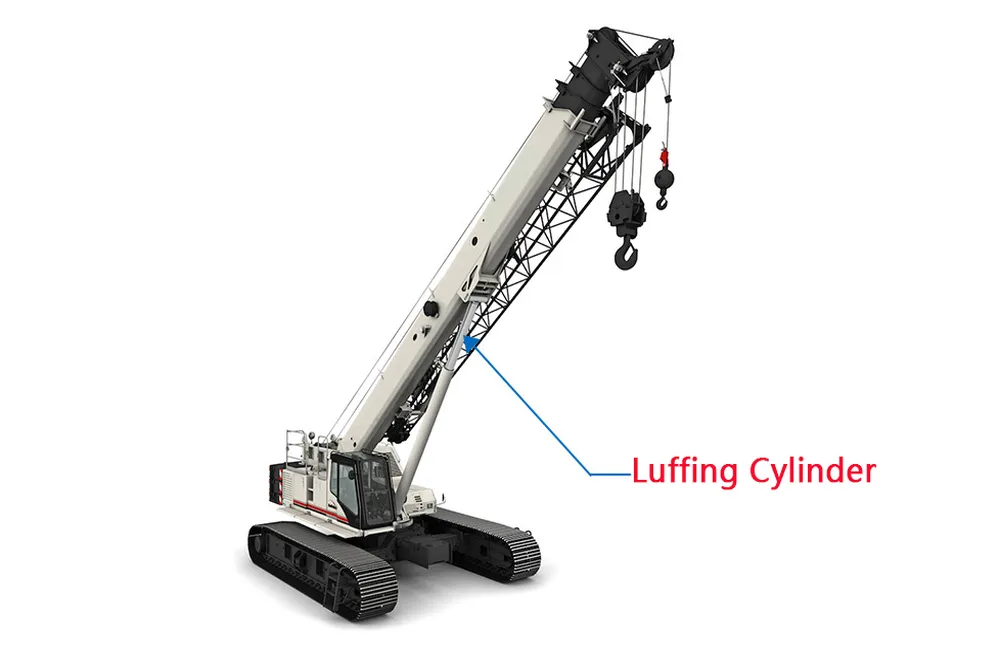

The luffing hydraulic cylinder in a telescopic crawler crane plays a critical role in controlling the boom's inclination, enabling precise lifting and positioning of loads during various operations. Its primary function is to adjust the angle of the crane's boom relative to the horizontal plane by extending or retracting under hydraulic pressure. This adjustment is known as "luffing," which allows the crane operator to raise or lower the boom effectively, making it an essential component for achieving versatility and accuracy in lifting tasks.

The hydraulic cylinder operates using pressurized hydraulic fluid, which is directed into the cylinder by a hydraulic pump. When the fluid enters the cylinder, it either extends or retracts the piston, causing the boom to move upward or downward. This movement is especially useful when working in confined spaces, lifting heavy loads, or repositioning the boom to reach challenging angles. The luffing cylinder also works in synchronization with the telescopic boom sections, ensuring that load handling remains stable and smooth during adjustments.

Beyond simply adjusting the boom angle, the luffing hydraulic cylinder provides significant benefits in terms of safety and efficiency. It allows the operator to make precise angle changes without abrupt movements, reducing the risk of destabilizing the load or the crane itself. Additionally, the cylinder's robust design ensures that it can withstand the immense forces generated during lifting operations, even under extreme conditions or with heavy-duty loads.

Key Components of a Luffing Hydraulic Cylinder

The luffing hydraulic cylinder is a key component of a telescopic crawler crane, consisting of several essential parts that work together to facilitate the controlled movement of the crane's boom. The main components of a luffing hydraulic cylinder include:

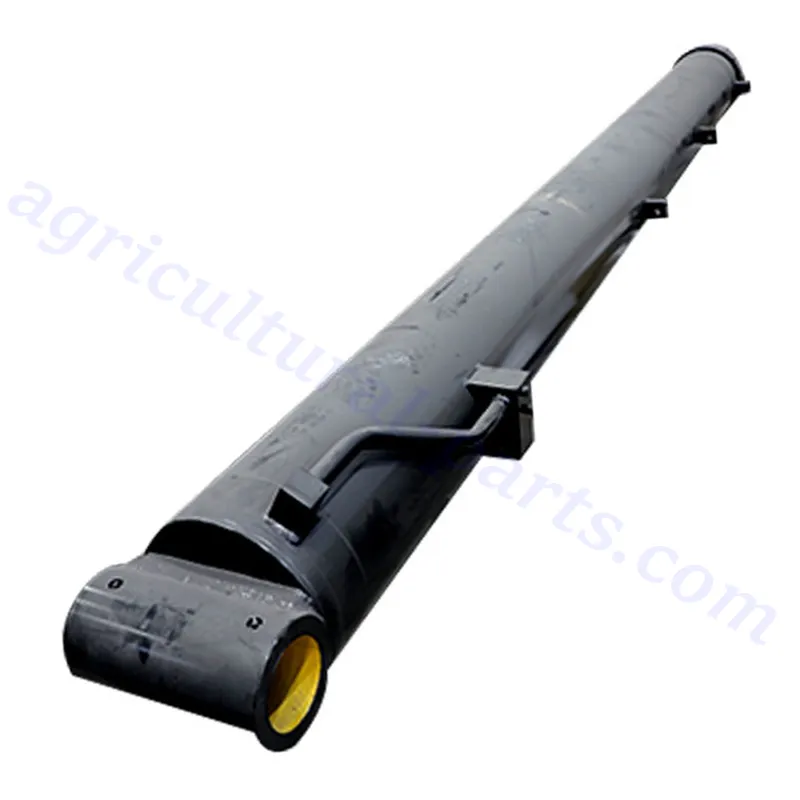

1. Cylinder Barrel: The cylinder barrel is the main outer shell of the luffing hydraulic cylinder, housing all internal components. It is designed to withstand high hydraulic pressures and external forces during operation. Made from durable materials like steel, it ensures structural integrity and longevity under extreme load conditions.
2. Piston and Piston Rod: The piston is a movable component inside the cylinder barrel that divides the cylinder into two chambers. The piston rod, attached to the piston, extends out of the cylinder to transfer hydraulic force to the crane's boom. Both are engineered for strength and precision to ensure smooth movement.
3. Hydraulic Seals: Hydraulic seals are crucial for preventing fluid leakage and maintaining pressure within the cylinder. They ensure efficient operation by separating the high-pressure and low-pressure sides of the piston. Made from high-performance materials, seals also protect against contamination and wear over time.
4. End Caps: End caps are located at both ends of the cylinder barrel. They secure the internal components and serve as mounting points for the luffing cylinder. End caps are designed to resist pressure and allow fluid entry or exit through ports, facilitating controlled movement of the piston.
5. Hydraulic Ports: Hydraulic ports allow pressurized fluid to flow into and out of the cylinder. These ports are strategically positioned to ensure efficient control of the piston movement. The flow of hydraulic fluid through these ports is regulated by a hydraulic pump and valves for precise operation.

How to Replace a Damaged Luffing Hydraulic Cylinder

Replacing a damaged luffing hydraulic cylinder on a telescopic crawler crane is a complex task that requires careful planning and execution to ensure safety and proper functionality. Here are some steps for replacing a damaged luffing hydraulic cylinder:

1. Inspect and Diagnose the Issue: Before replacement, thoroughly inspect the damaged hydraulic cylinder to confirm the extent of the damage. Identify any related components, such as seals or mounting points, that might also need attention. Ensure the crane is safely parked and powered down for safety.
2. Depressurize the Hydraulic System: Safely relieve the hydraulic pressure in the system to prevent fluid leakage or accidental motion. Open the hydraulic bleed ports to release trapped pressure, and ensure no residual pressure remains. This step is critical for preventing injuries during removal.
3. Disconnect Hydraulic Lines: Carefully disconnect the hydraulic hoses or lines attached to the damaged cylinder. Use appropriate tools to avoid damaging fittings or threads. Seal the disconnected hydraulic lines to prevent fluid contamination and minimize spillage during the replacement process.
4. Remove the Damaged Cylinder: Detach the damaged cylinder from its mounting points, such as clevis pins, trunnions, or brackets. Use lifting equipment, like a crane or hoist, to support the cylinder’s weight during removal. Ensure proper alignment to avoid damaging adjacent components.
5. Install the New Cylinder: Position the replacement hydraulic cylinder and secure it to the crane’s mounting points. Ensure the cylinder is correctly aligned to the boom and other structural parts. Use torque specifications provided by the manufacturer to tighten bolts and pins properly.
6. Reconnect Hydraulic Lines and Test: Reattach the hydraulic hoses to the new cylinder, ensuring a secure and leak-free connection. Refill the hydraulic system with the appropriate fluid and test the cylinder for proper functionality. Inspect for leaks or alignment issues, and make necessary adjustments to ensure safe operation.

Why Choose AGKNX's Industrial Vehicle Hydraulic Cylinders?

AGKNX is a professional manufacturer specializing in medium and high-end hydraulic cylinders. It is the largest domestic production base for forklift hydraulic cylinders, aerial work truck hydraulic cylinders, and industrial vehicle hydraulic cylinders. The company boasts a state-of-the-art hydraulic products testing facility and a high-tech research and development center. With independent intellectual property rights for key equipment development and production, AGKNX offers a comprehensive quality assurance system, advanced production and testing capabilities, and strong technical development expertise.

The company’s product range includes forklift hydraulic cylinders, industrial vehicle hydraulic cylinders, construction machinery hydraulic cylinders, aerial work truck hydraulic cylinders, sanitation machinery hydraulic cylinders, wind power hydraulic cylinders, agricultural machinery hydraulic cylinders, and other related equipment. In addition to producing medium and high-end hydraulic cylinders, we also manufacture hydraulic cylinder components and forklift cylinder parts.

Currently, AGKNX’s hydraulic cylinder products are exported to many countries and regions worldwide. If you cannot find the product you need in our inventory, we offer custom manufacturing solutions. Our team can design and produce hydraulic cylinders tailored to meet your specific size and application requirements. For unique or specialized needs, feel free to consult us for customized solutions.
