Mini Hay Press for Farm Hay Baling

Category:

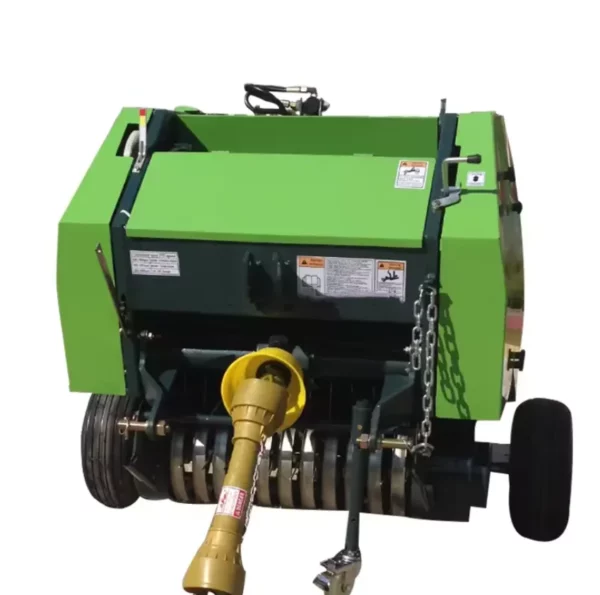

Introducing the Mini Hay Press, a round baler designed for efficient and convenient hay baling. With an operating speed of 3-10km/h, this new model, available in two options - RXYK0850 and RXYK0870, is perfect for picking up and baling grass, alfalfa, wheat, and rice straw among other applications. The Mini Hay Press has a dimension of 1300x1300x1350mm and weighs 425 kg. It comes with a warranty of 2 years, ISO and CE certifications, and uses twine as the rope for baling. The baler is powered by a 20-50HP matched power and features an 80cm pickup width. The Mini Hay Press is green in color and has no overseas after-sales service provided.

The Advantages of the Mini Hay Press

  • Efficiency: With an operating speed of 3-10km/h, the Mini Hay Press ensures quick and efficient baling, allowing you to cover a large area within a short period.
  • Versatility: The Mini Hay Press can pick up and bale a variety of crops including grass, alfalfa, wheat, and rice straw, making it a versatile tool for different farming needs.
  • Compact Size: With dimensions of 1300x1300x1350mm, the Mini Hay Press is compact for easy maneuverability and storage.
  • Weight: Weighing 425 kg, the Mini Hay Press is relatively lightweight for a baler, ensuring easy handling and transportation.
  • Power: The Mini Hay Press operates with a 20-50HP matched power, ensuring the baler performs efficiently and effectively.
  • Warranty: The Mini Hay Press comes with a 2-year warranty, providing a guarantee of quality and durability.

Applications of the Mini Hay Press

Mini Hay Round Baler Applications


  • Agricultural Farming: The Mini Hay Press can be used in small to medium-sized farms for the collection and baling of various crops.
  • Pineyards: In pineyards, the Mini Hay Press can be used to collect and bale pine straw, facilitating easy cleanup and mulching.
  • Orchards: In orchards, the Mini Hay Press can be used to collect and bale grass or straw for easy removal or composting.
  • Livestock Feeding: The bales produced by the Mini Hay Press can be used as feed for livestock.
  • Bedding: The bales produced can also be used as bedding for livestock in farms and ranches.
  • Composting: The bales can be used as a source of carbon in compost piles, facilitating the composting process.

Working Principle of Tractor Mounted Mini Hay Round Baler

Mini Hay Round Baler

The working principle of a tractor-mounted mini hay round baler involves several key steps to efficiently collect, compress, and bind hay or straw into compact cylindrical bales. Here is a general overview of the process:

  1. Attachment to Tractor: The mini hay round baler is attached to the tractor's three-point hitch or mounted on the rear of the tractor using appropriate brackets. It is typically powered by the tractor's power take-off (PTO) system, which provides the necessary rotational power.
  2. Pick-Up Mechanism: The baler is equipped with a pick-up mechanism at the front, which consists of a series of tines or belts. As the tractor moves forward, the pick-up mechanism collects the loose hay or straw from the ground and transfers it to the baling chamber.
  3. Feeding and Compression: The hay or straw is fed into the baling chamber through the pick-up mechanism. Inside the baling chamber, there is a rotating drum or rotor with spiral-shaped vanes or belts. The material is fed into the space between the rotor and the chamber wall, where it is rolled and compressed.
  4. Formation of Bale: As the material is continuously fed into the baling chamber, the rotating drum or rotor compresses it, gradually forming a cylindrical shape. The chamber is designed with adjustable side plates or rollers to control the size and density of the bale.
  5. Binding Process: Once the desired size of the bale is reached, the mini hay round baler initiates the binding process. It typically uses twine or netting to secure the bale. The twine or netting is automatically fed into the baler, and it wraps around the bale in a crisscross pattern to hold it together.
  6. Bale Ejection: Once the baling and binding process is complete, the mini hay round baler ejects the finished bale. It can be released onto the ground or onto a bale wagon or trailer attached to the rear of the baler. Some balers also have a hydraulic ejection system that pushes the bale out of the chamber.
  7. Repeat Process: After the bale is ejected, the mini hay round baler is ready to repeat the process for the next bale. The pick-up mechanism continues to collect the hay or straw, and the cycle of feeding, compression, binding, and ejection is repeated until the desired number of bales is produced.

How to Install the Mini Hay Round Baler to Tractor

Installing a mini hay round baler to a tractor involves a few key steps to ensure proper attachment and secure operation. Here is a general guide on how to install a mini hay round baler to a tractor:

  1. Check Compatibility: Before installing the baler, ensure that it is compatible with your tractor. Check the specifications and requirements provided by the baler manufacturer to ensure it can be safely attached to your tractor's three-point hitch or mounting brackets.
  2. Position the Tractor: Park the tractor on a level surface and engage the parking brake. Ensure that the tractor is turned off and the PTO is disengaged.
  3. Align the Baler: Position the mini hay round baler behind the tractor, aligning it with the three-point hitch or mounting brackets. Ensure that the baler's hitch or brackets are at the correct height for attachment.
  4. Attach the Lower Linkage: Lower the three-point hitch of the tractor to align the lower linkage arms with the baler's hitch or brackets. Insert the lower linkage pins through the appropriate holes on both sides and secure them with the locking devices provided.
  5. Attach the Top Link: Connect the top link of the tractor to the baler's top link bracket. Adjust the length of the top link to ensure proper alignment and maintain the desired working position of the baler. Double-check that all attachment points are securely fastened and locked. Ensure that there is no excessive play or movement between the tractor and the baler.
  6. Connect the PTO Shaft: Locate the PTO shaft on the baler and align it with the PTO output shaft on the tractor. Slide the PTO shaft onto the tractor's PTO shaft, ensuring that the splines engage properly. Secure the PTO shaft with the provided safety chain or locking mechanism.
  7. Test Operation: Start the tractor and engage the PTO. Observe the rotation of the baler's components to ensure smooth operation. Check for any unusual noises or vibrations that may indicate improper installation or alignment.

Common Troubleshooting for Mini Hay Round Baler

Troubleshooting common issues with a tractor-mounted mini hay round baler involves identifying and addressing problems that can affect its performance and the quality of the bales produced. Here are some frequent issues encountered with these balers and potential solutions:

  1. Baler Not Starting or Operating: PTO connection issues, insufficient hydraulic pressure, or electrical faults. Ensure the PTO shaft is correctly connected and that the tractor's PTO output matches the baler's requirements. Check the hydraulic system for leaks or low pressure and repair as necessary. Inspect electrical connections and fuses for faults.
  2. Uneven or Loose Bales: Incorrect tension settings, uneven windrow feeding, or worn parts. Adjust the baler's tension settings according to the manufacturer's instructions. Ensure even and consistent feeding of the windrow into the baler. Replace any worn belts, rollers, or other parts affecting bale formation.
  3. Baler Jamming or Clogging: Overfeeding, wet or overly dry material, or mechanical obstructions. Feed the material at a consistent rate to avoid overloading the baler. Avoid baling excessively wet or dry material. Clear any obstructions in the baler's intake or mechanism.
  4. Bales Not Tying or Wrapping Properly: Twine or net wrap issues, malfunctioning tying or wrapping mechanism, or incorrect settings. Check and refill twine or net wrap supplies. Inspect the tying or wrapping mechanism for damage or malfunctions and repair or adjust as necessary. Ensure settings for tying or wrapping are correctly configured.
  5. Excessive Wear or Damage to Baler Components: Lack of maintenance, incorrect settings, or operating beyond capacity. Regularly inspect and maintain the baler, including lubrication and part replacements. Adjust settings to match the operating conditions and material being baled. Avoid operating the baler beyond its designed capacity.
  6. Poor Baler Performance or Efficiency: Incorrect tractor-baler setup, improper PTO speed, or baler not leveled. Ensure the baler is correctly attached and leveled on the tractor. Adjust the PTO speed to match the baler's requirements. Check that the baler is properly configured for the tractor's capabilities.

Why Choose AGKNX's Mini Hay Round Baler?

AGKNX Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system.

Mini Hay Round Baler Manufacturers

AGKNX prides itself on a strong production technology and advanced equipment, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, and more.

Our products are complete in specifications, excellent in performance, reliable in quality, and sold all over the country. They are also exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Invest in AGKNX's Mini Hay Round Baler for your farm today and experience the difference in efficiency, versatility, and convenience.
