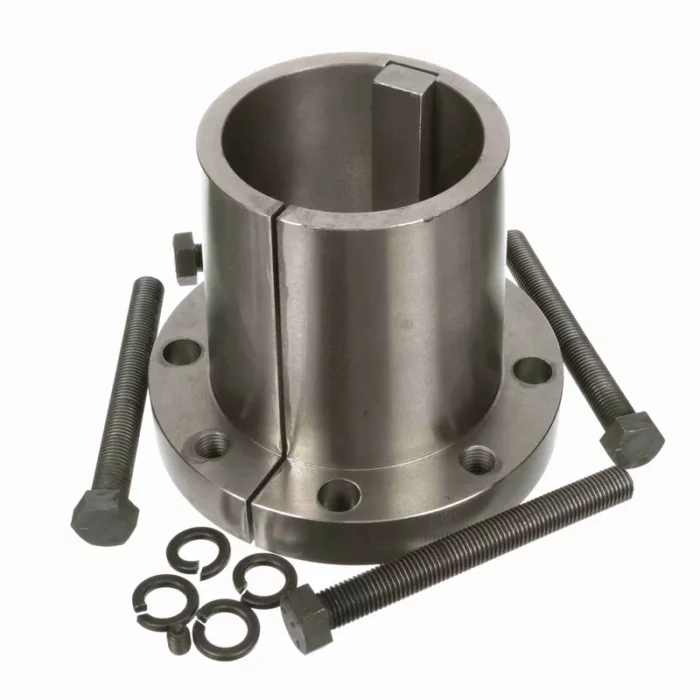

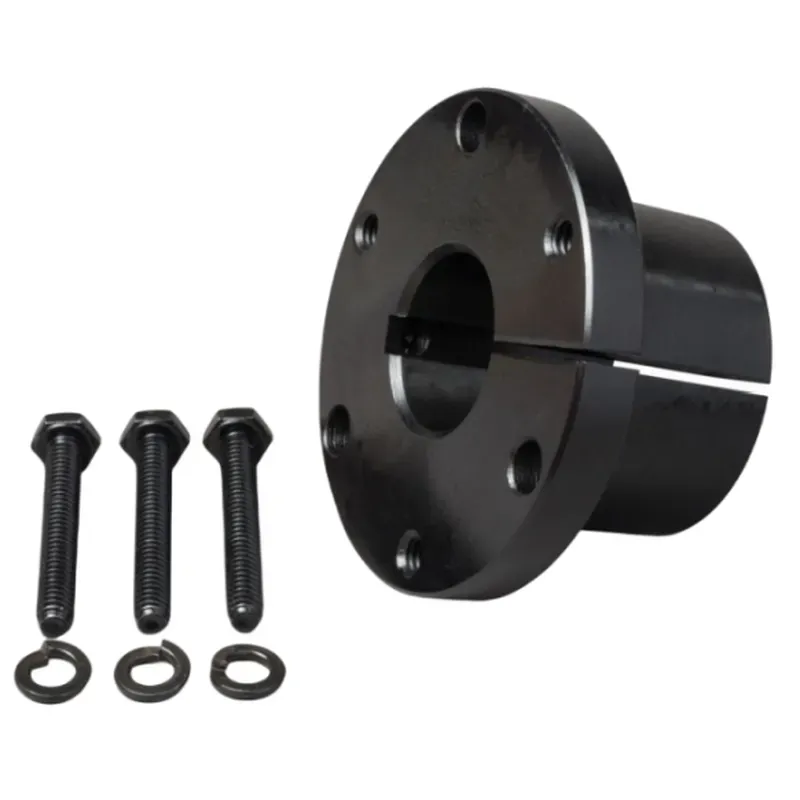

N Type QD Bushings

• Ductile Iron: Ductile iron is a primary material for N Type QD bushings due to its superior strength and durability. It offers excellent resistance to wear and impact, ensuring a secure fit on shafts. This material’s flexibility under stress prevents cracking, making it ideal for high-torque applications in industrial machinery. Its machinability allows precise manufacturing for reliable performance.
• Cast Iron: Cast iron is frequently used for N QD bushings because of its cost-effectiveness and robust mechanical properties. It provides good vibration damping and stability, crucial for heavy-duty power transmission systems. The material’s ability to withstand corrosion in certain environments enhances longevity, supporting consistent operation in conveyors and similar equipment.
• Steel: Steel, particularly plain carbon steel, is chosen for N Type QD bushings in applications requiring high tensile strength. Its toughness ensures minimal deformation under load, maintaining alignment in dynamic systems. Steel bushings are often precision-machined to achieve tight tolerances, offering dependable performance in demanding settings like manufacturing plants.
• Stainless Steel: Stainless steel is used for QD bushings in corrosive or hygienic environments, such as food processing or marine applications. Its resistance to rust and chemical degradation ensures long-term reliability. The material’s strength supports secure mounting, maintaining performance in challenging conditions requiring frequent cleaning or exposure to moisture.

QD (Quick Detachable) bushings and Taper Lock bushings are both used to mount pulleys, sprockets, or sheaves onto shafts, but they differ in design and application. Here’s a concise comparison:

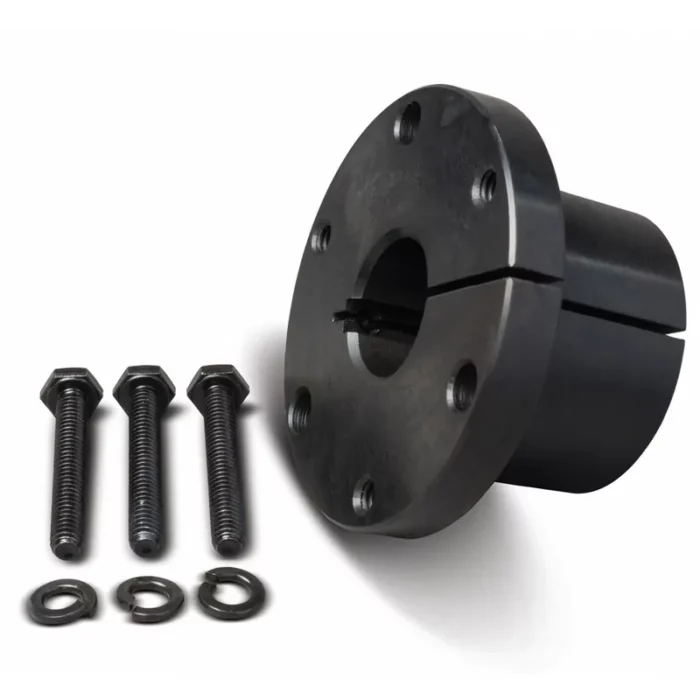

QD Bushings:

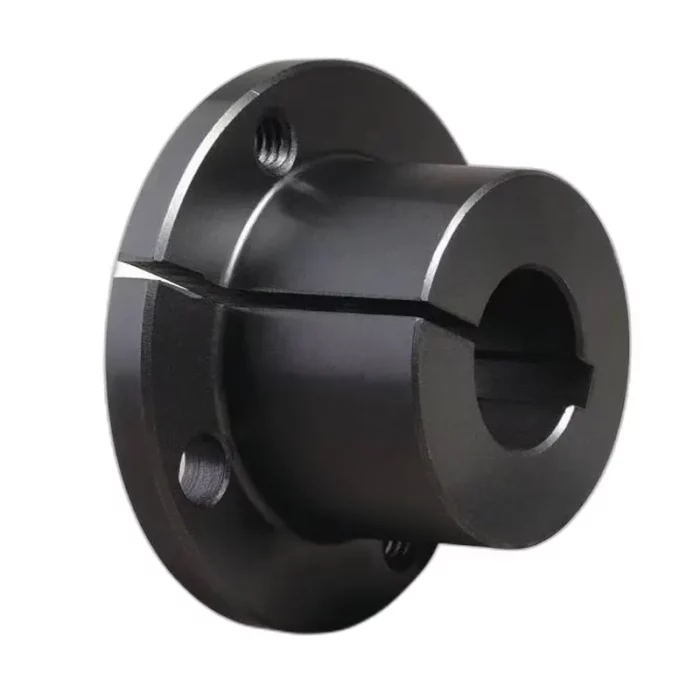

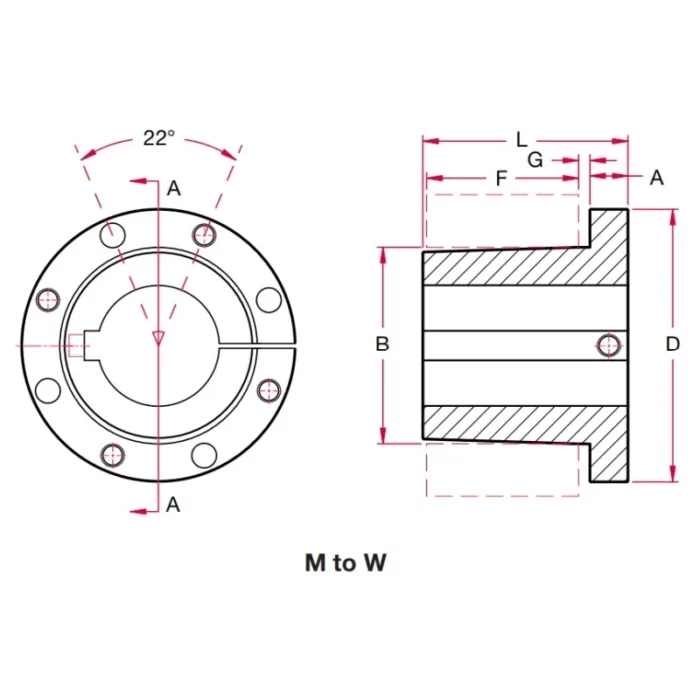

• Design: Feature a flange on the outer diameter and a split through the flange and taper. Tightened with cap screws, often with a setscrew over the key (except for JA and H sizes).
• Installation/Removal: Easier and faster due to the split flange design. Ideal for applications requiring frequent component changes.
• Fit: Provides strong clamping force but may not grip as tightly as Taper Lock due to the flange design.
• Sizes: Common types include SD, SK, J, F, E, SF, SDS, SH, JA.
• Advantages: Quick to install/remove, versatile for systems needing regular maintenance, often more cost-effective and widely available.
• Use Case: Best for applications prioritizing ease of maintenance over maximum shaft grip, like in conveyor systems or lighter industrial setups.

Taper Lock Bushings:

• Design: Have a gradual taper along the length-thru-bore and straight sides on the outer diameter (no flange). Mount flush with the component.
• Installation/Removal: Requires more effort than QD, as they’re designed for a tighter, more permanent fit. Removed by loosening screws.
• Fit: Offers a tighter, more secure grip on the shaft due to the tapered bore, allowing for shorter length-thru-bore and narrower hubs.
• Sizes: Common types include 1008, 1108, 1210, 1610, 2012, 2517, 3020, etc.
• Advantages: Superior holding power, better for high-torque or heavy-load applications, compact design.
• Use Case: Preferred for long-term or high-torque applications, like heavy machinery or precision drives.

Key Differences:

• Ease of Use: QD bushings are quicker to install/remove; Taper Lock bushings prioritize a tighter fit over ease.
• Holding Power: Taper Lock bushings generally provide stronger shaft grip due to their taper design.
• Application: QD for frequent maintenance; Taper Lock for high-torque, stable setups.
• Design: QD has a flange; Taper Lock mounts flush with straight sides.
