P Type QD Bushings

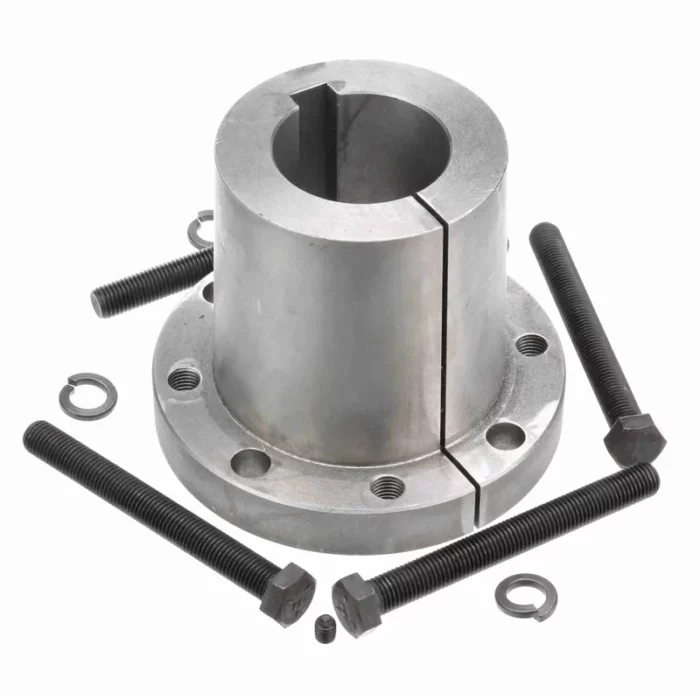

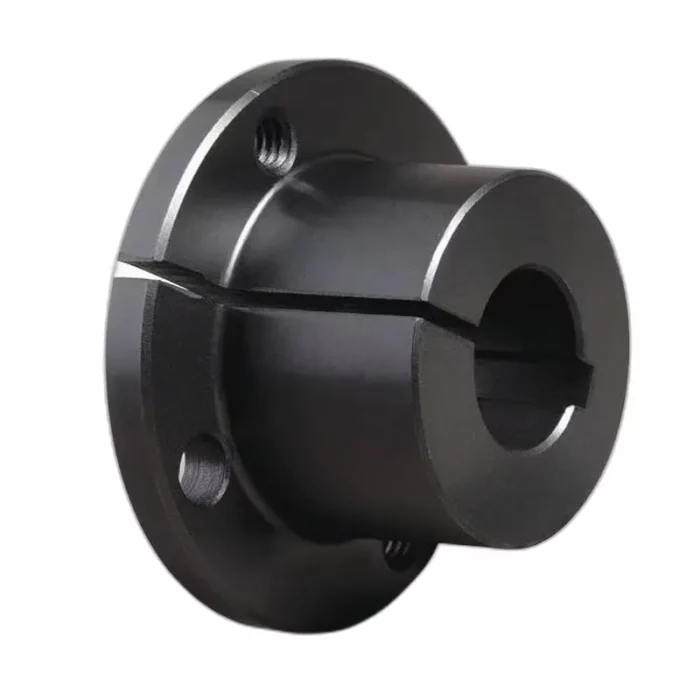

P Type QD (Quick Detachable) bushings are precision-engineered components used to mount pulleys, sprockets, or sheaves onto shafts in power transmission systems. They feature a flanged, tapered design with a split through one side, allowing easy installation and removal. By tightening cap screws, the bushing securely grips the shaft, ensuring a tight, reliable fit. Made typically from high-quality steel. Their quick-disconnect design simplifies maintenance, reduces downtime, and supports applications requiring frequent component changes, such as in industrial machinery, conveyors, and heavy-duty equipment.
P Type QD (Quick Detachable) bushings are precision-engineered components used to mount pulleys, sprockets, or sheaves onto shafts in power transmission systems. They feature a flanged, tapered design with a split through one side, allowing easy installation and removal. By tightening cap screws, the bushing securely grips the shaft, ensuring a tight, reliable fit. Made typically from high-quality steel, P Type QD bushings offer torque capacities of 5,400 pounds and accommodate large bore sizes, often up to 7 inches. Their quick-disconnect design simplifies maintenance, reduces downtime, and supports applications requiring frequent component changes, such as in industrial machinery, conveyors, and heavy-duty equipment.

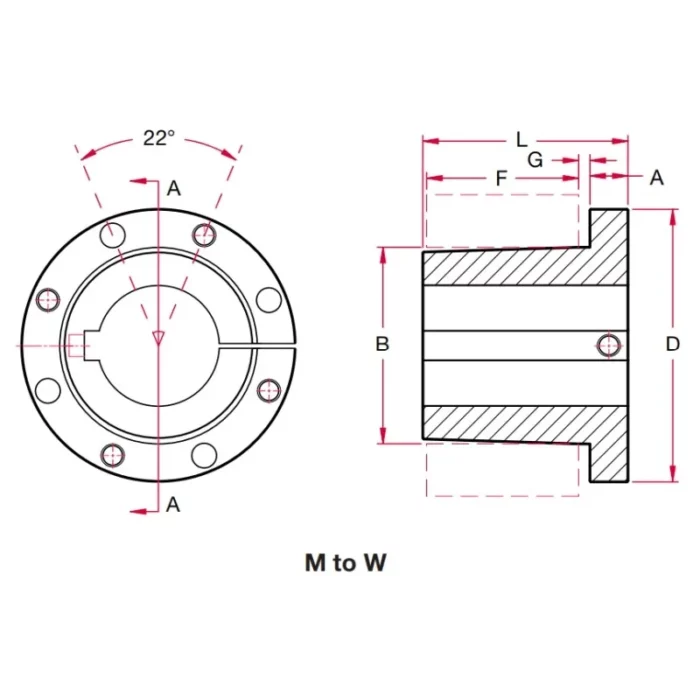

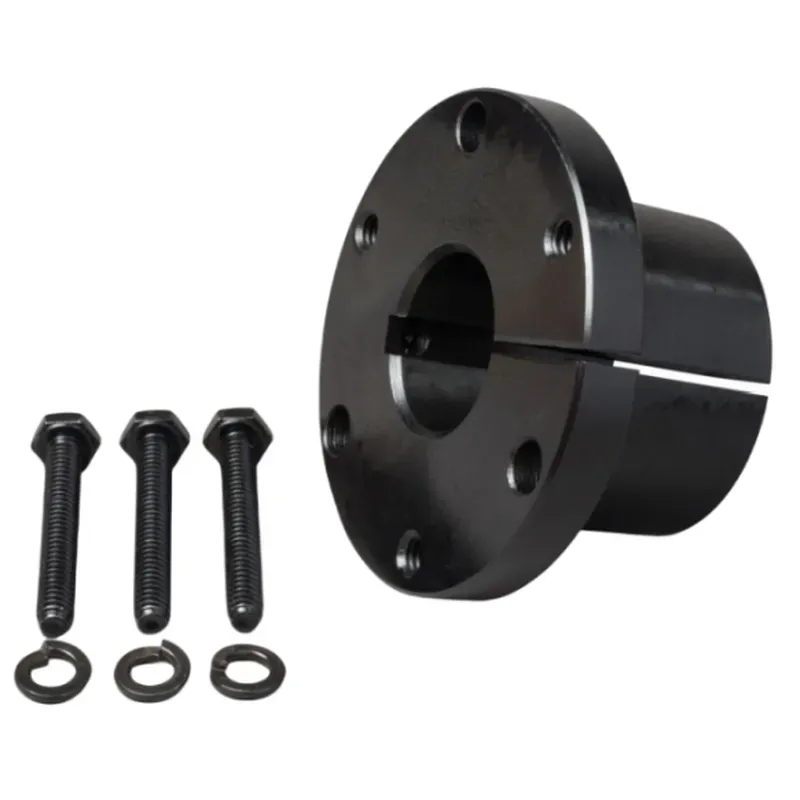

P Type QD Bushing Dimensions
 |  |
| QD Bushing Type: | P | |
| Dimensions(in): | A | 1-3/4 |
| B | 8.250 | |
| D | 11-3/4 | |
| E | 7-5/8 | |
| F | 7-1/4 | |
| G | 1/2 | |
| L | 9-3/8 | |
| Bolt Circle (in): | 10 | |
| Stock Bore Range(in): | Min. | 2-15/16 |
| Max. | Standard Keyway 5-15/16 Shallow Keyway 7 No Keyway - | |
| Cap Screws Included: | No. | 4 |
| Thread | 1-8 | |
| Length (in) | 9-1/2 | |
| Set Screw Size: | 7/8 | |
| Wrench-Torque (in-Ibs): | 5,400 | |
| Approx.Weight (Ibs): | 120.0 | |
Key Advantages of P Type QD Bushings
P Type QD (Quick Detachable) bushings offer several key advantages in mechanical applications, particularly for mounting pulleys, sprockets, and sheaves onto shafts. Below are the primary benefits, each described in detail with at least 35 words:
- Ease of Installation and Removal: P Type QD bushings are designed for quick and straightforward installation and removal, requiring only a few cap screws to secure or detach them from the shaft. This reduces downtime during maintenance or component replacement, enhancing operational efficiency in industrial settings where frequent adjustments are necessary.
- High Torque Capacity: These bushings provide robust torque transmission, with capacities of 5,400 pounds, ensuring reliable performance in heavy-duty applications. Their precision-machined, tapered design ensures a tight, secure fit, minimizing slippage and maximizing power transfer.
- Versatile Mounting Configurations: P QD bushings support both conventional (flange outboard) and reverse (flange inboard) mounting, offering flexibility for various machinery designs. This adaptability allows them to be used in diverse applications, accommodating different shaft sizes and component types.
- Strong Clamping Force: The split, tapered flange design of QD bushings delivers superior clamping force compared to standard bored-to-size bushings. This ensures a secure grip on the shaft, reducing vibration and enhancing the stability of connected components during operation.
- Durability and Material Quality: Constructed from high-quality materials like steel or cast iron, P Type QD bushings are built to withstand demanding conditions. Their durability ensures long service life, reducing replacement frequency and maintenance costs in industrial environments.
Difference Between QD Bushings and Split Taper Bushings
QD (Quick Disconnect) bushings and Split Taper bushings are both used to mount pulleys, sprockets, or sheaves onto shafts in power transmission systems, but they differ in design, installation, and application.
QD Bushings: QD bushings feature a flanged design with a keyway and a set of cap screws for mounting. They are installed by sliding the bushing onto the shaft, aligning the component (e.g., pulley), and tightening the cap screws to compress the bushing’s split barrel, securing it to the shaft. Removal is quick, requiring only the loosening of screws and insertion of a puller screw into a designated hole, which pushes the bushing off. QD bushings are ideal for applications needing frequent component changes, offering high torque capacity and ease of maintenance. They typically have a shallower taper (3/4 inch per foot) for a strong grip.
Split Taper Bushings: Split Taper bushings have a double-tapered barrel with a flange and a keyway, using screws to secure the bushing to both the shaft and the mounted component. The split design allows the bushing to compress tightly around the shaft when screws are tightened, providing a secure fit. They have a longer taper (typically 1-1/2 inches per foot), which ensures a tighter grip over a larger contact area, reducing slippage in high-torque applications. Installation and removal are more involved than QD bushings, requiring careful alignment and screw tightening in a specific sequence.
Key Differences: QD bushings prioritize ease of installation and removal, making them suitable for applications requiring quick maintenance. Split Taper bushings offer a stronger, more precise fit due to their longer taper and are preferred in heavy-duty, high-torque scenarios. QD bushings are more compact, while Split Taper bushings may require more axial space. Both are versatile, but the choice depends on the application’s torque, maintenance frequency, and space constraints.
 |  |
| QD Bushings | Split Taper Bushings |
