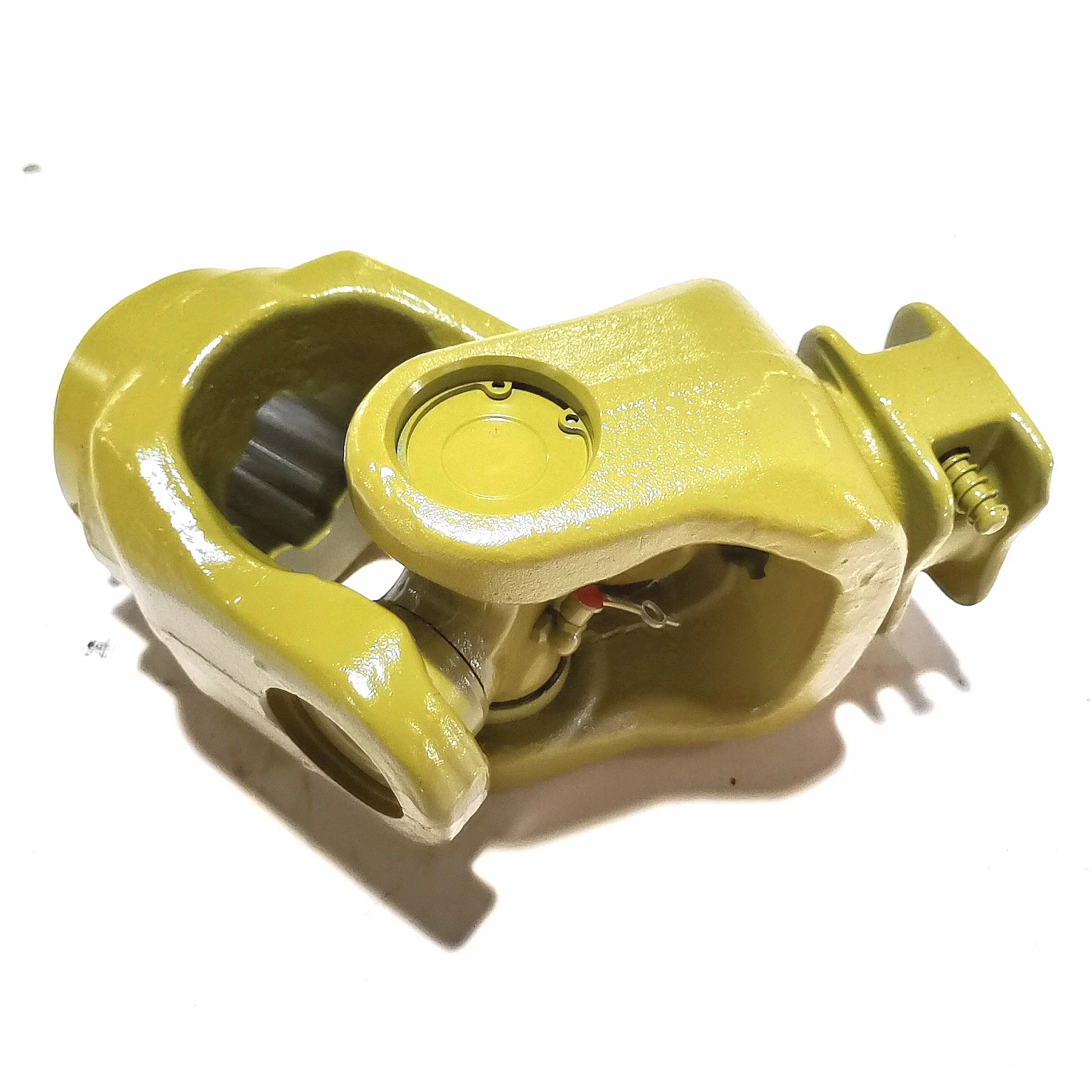

PTO Driveshaft Parts 30.2*92 U-Joint Push Pin Spline Yoke Star Tube Universal Joint Assembly

Introducing the 30.2*92 Universal Joint Assembly, an essential part of your PTO driveshaft needs. This new, high-quality assembly comes with a 1-year warranty and is suitable for various industries including Hotels, Garment Shops, Building Material Shops, Manufacturing Plants, Machinery Repair Shops, Food & Beverage Factories, Farms, Restaurants, Home Use, Retail, Food Shops, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, and Advertising Companies. Weighing a mere 3 KG, this double joint yoke is designed for use in tractors and tractor implements. The product is made from durable steel, with a visually pleasing yellow color. The manufacturing process involves forging, ensuring a hardy and long-lasting product. The assembly is CE, ISO, and TS certified and includes a 1 3/8'' Z6 teeth cross kit and a 05B Push Pin Yoke for the spline yoke.

SD Double Universal Joint Specifications

Features of the 30.2*92 U-Joint Push Pin Spline Yoke Star Tube Universal Joint Assembly

Our product offers several advantages over other similar parts on the market:

1. Durable Material: The 30.2*92 U-Joint Assembly is made from high-quality steel, ensuring longevity and resilience under strain.
2. Forging Process: The assembly undergoes a forging process that provides superior strength and durability compared to those made using traditional casting methods.
3. Double Joint Yoke: The featured double joint yoke is perfect for tractors and their implements, offering enhanced power transmission and efficiency.
4. Compatibility: This product is compatible with a wide range of tractor models and brands, making it a versatile choice for agricultural applications.
5. Certification: The product holds CE, ISO, and TS certification, guaranteeing its quality and safety for use.

We pride ourselves on our ability to manufacture this product, offering a perfect replacement for damaged parts on the SD Double Universal Joint for PTO Shaft.

Applications of the Universal Joint Assembly

The SD Double Universal Joint for a tractor PTO shaft is a crucial component in the power transmission system of agricultural machinery. Here are some key agricultural applications of the SD Double Universal Joint:

1. 1. Operation of Implements: The primary function of the SD Double Universal Joint is to transfer power from the tractor's PTO shaft to various agricultural implements such as mowers, balers, seeders, sprayers, and harvesters.
   2. Flexibility on Uneven Terrain: The SD Double Universal Joint accommodates the changes in angle and misalignment that occur when the tractor traverses uneven ground, ensuring continuous power transmission.
   3. Reduction of Vibrations and Shock: The SD Double Universal Joint minimizes vibrations and shock during the operation of agricultural machinery, resulting in smoother operation and reduced wear and tear on the equipment.
   4. Compatibility with Various Implements: The SD Double Universal Joint is designed to be compatible with a wide range of agricultural implements, enhancing the versatility and productivity of agricultural machinery.
   5. Safety and Equipment Protection: The SD Double Universal Joint reduces the risk of equipment failure and accidents, prolonging the lifespan of the PTO shaft and reducing maintenance costs.
   6. Efficient Attachment and Removal of Implements: The SD Double Universal Joint facilitates the quick and easy attachment and removal of implements to the tractor's PTO shaft.

Types of Tractor PTO shaft torque limiters

Tractor PTO shaft torque limiters are safety devices designed to protect the PTO system and connected equipment from excessive torque and prevent damage or accidents. Here are some common types of PTO shaft torque limiters used in tractors:

1. Shear Pin Torque Limiter: This type of torque limiter uses a shear pin to transmit torque. When the torque exceeds a predetermined limit, the shear pin shears off, disconnecting the power transmission.
2. Friction Clutch Torque Limiter: Friction clutch torque limiters use a disc or plate clutch mechanism to limit torque transmission. When the torque exceeds a certain threshold, the clutch slips, decoupling the power transmission temporarily.
3. Ball Detent Torque Limiter: Ball detent torque limiters utilize a ball mechanism to limit torque transmission. When the torque exceeds a specific limit, the balls are forced out of their detents, causing the clutch to slip and interrupting power transmission.
4. Ratchet Torque Limiter: Ratchet torque limiters employ a ratchet mechanism to limit torque transmission. They consist of a series of teeth that engage and disengage under torque load.
5. Slip Clutch Torque Limiter: Slip clutch torque limiters utilize a clutch mechanism with adjustable friction to limit torque transmission. The clutch slips when the torque exceeds a certain threshold, temporarily interrupting power transmission.

How Does the SD Double Universal Joints for PTO Shaft Work?

The SD Double Universal Joint for a tractor PTO (Power Take-Off) shaft is a mechanical device that allows for the transmission of power from the tractor's engine to attached implements. Here's how it works:

1. Universal Joints: The SD Double Universal Joint incorporates two universal joints, also known as Cardan joints. Each universal joint consists of a cross-shaped yoke with four arms.
2. Centering Yoke: The centering yoke connects the two universal joints. It is typically a square or rectangular-shaped yoke with a center hole that fits over the tractor's PTO shaft.
3. Attached Implements: One end of the SD Double Universal Joint is connected to the tractor's PTO shaft, which is driven by the engine power. The other end of the universal joint is connected to the implement or machinery that requires power.
4. Power Transmission: As the tractor's engine generates rotational power, it is transferred to the PTO shaft. The PTO shaft, in turn, transmits this power to the universal joint at one end of the SD Double Universal Joint.
5. Flexibility: The SD Double Universal Joint provides flexibility and compensates for misalignment between the tractor and the implement.
6. Reducing Vibrations and Shock: The universal joints in the SD Double Universal Joint help absorb and reduce vibrations and shock during operation.

Maintenance of the Universal Joint Assembly

Proper maintenance of the SD Double Universal Joint for a tractor PTO shaft is essential to ensure its longevity and optimal performance. Here are some maintenance methods to consider:

1. Regular Inspection: Perform regular visual inspections of the SD Double Universal Joint to check for any signs of wear, damage, or loose connections.
2. Lubrication: Proper lubrication is crucial for the smooth operation of the universal joint. Apply grease or oil to the universal joint's bearing caps and needle bearings, ensuring they are adequately lubricated.
3. Grease Fittings: Check the grease fittings on the SD Double Universal Joint and ensure they are clean and functional.
4. Tighten Fasteners: Periodically check and tighten all fasteners, such as bolts and nuts, that secure the universal joint and the centering yoke.
5. Avoid Overloading: Ensure that the tractor's PTO system and the attached implements are not subjected to excessive loads beyond their recommended capacity.
6. Cleanliness: Keep the SD Double Universal Joint and the surrounding area clean from dirt, debris, and crop residues.
7. Replacement of Worn Parts: If any components of the SD Double Universal Joint show signs of significant wear or damage, they should be promptly replaced.

Why Choose AGKNX's SD Double Universal Joint for PTO Shaft?

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, specializes in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, industrial cardan shafts, PTO shaft tubes, PTO shaft yokes, PTO shaft universal joints, PTO shaft torque limiters, car driveshafts, and u-joint coupling shafts, etc. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. AGKNX Driveshaft insisted on our principles: Quality first, Deliver quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.

Our company is renowned for its professionalism, international certifications, customized services, advanced production facilities, and reliable after-sales services. We export our products to over 50 countries across five continents, positioning ourselves as a global leader in the industry. With best-in-class brands under our product range, AGKNX continues to strive for global recognition in the fields we operate in.
