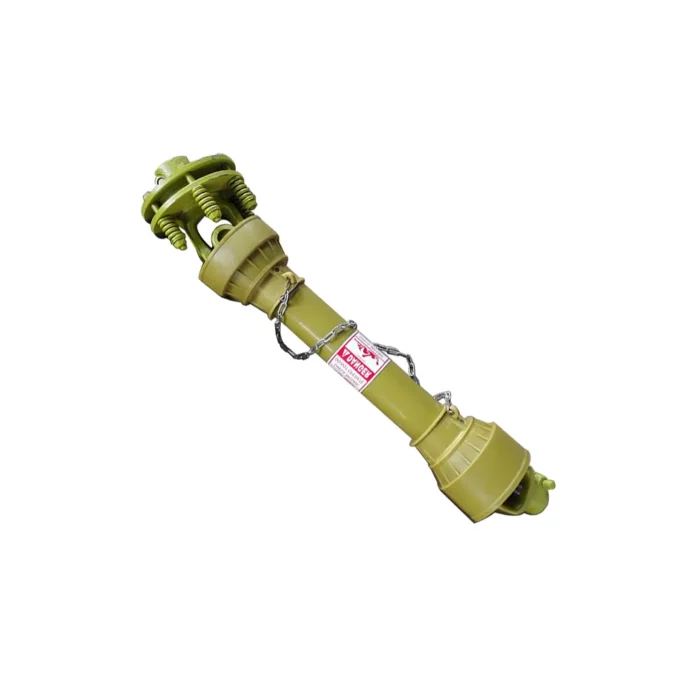

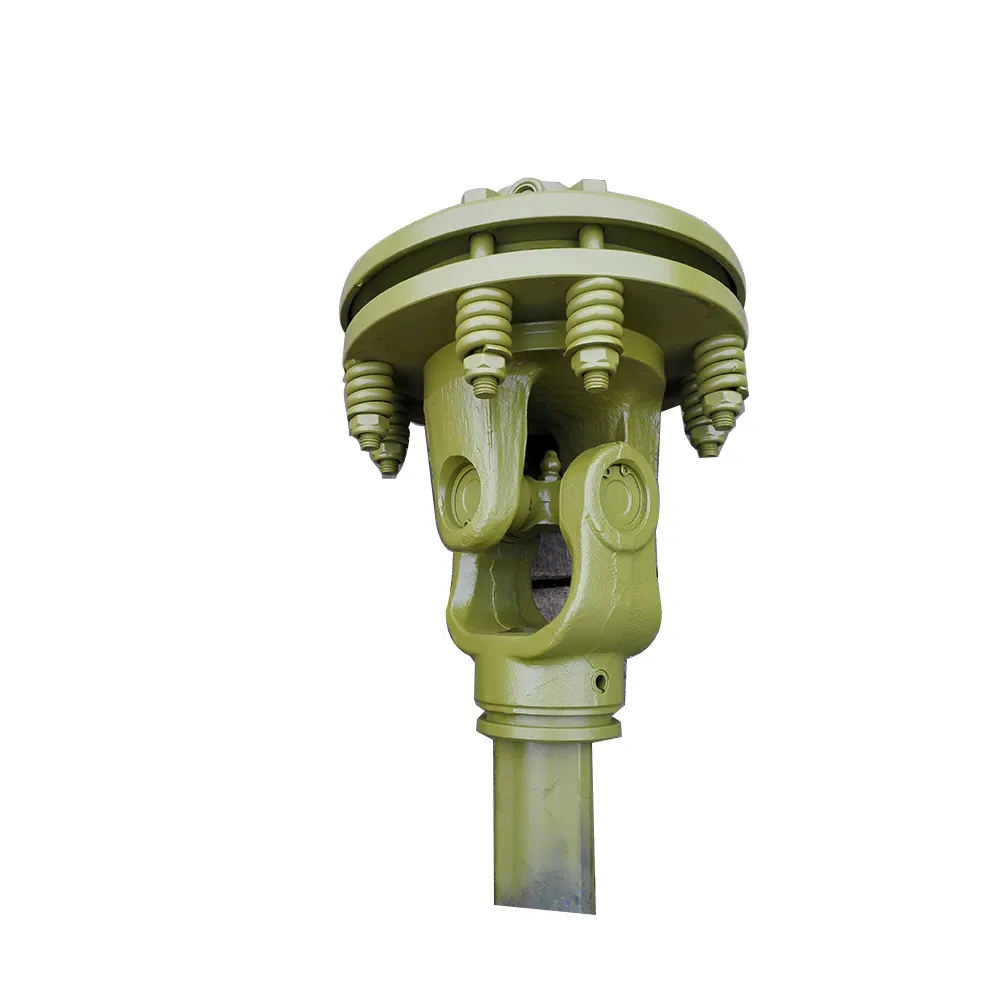

PTO Shaft FFT4*1000mm with slip clutch (friction disc 180*8/200*8mm)Crossφ27*74.5; 1-3/8″ 6 Spline Triangle Pipe Yellow for Tractor

The Pto Shaft FFT4*1000mm with a slip clutch is a versatile and efficient tool for various agricultural applications. Manufactured by the China AGKNX Group, the product features a power rating of 45HP at 540RPM, with a torque range of 335-1240Nm. The lightweight design, weighing just 6Kg, is available in colors like green, orange, yellow, and black. The shaft is made of 20CrMnTi / Q345 steel, with forging as the yoke material. Its tube type includes Triangular, Star, Square, Hexangular, Spline, and Special, fitting a wide range of tractors and farm implements like mowers, toppers, and rotovators.

The Structure of PTO Shaft:

PTO Shaft Parts:

PTO Shaft Tube:

PTO Shaft Cross Joint:

Features of PTO Shaft FFT4*1000mm

The PTO Shaft FFT4*1000mm stands out for its distinctive features, ensuring it's an ideal replacement for damaged Agricultural PTO shafts, including:

1. High Power Rating: With a power rating of 45HP at 540RPM, it provides strong and efficient performance.
2. Versatile Tube Types: It offers various tube types, including Triangular, Star, Square, Hexangular, Spline, and Special.
3. Lightweight Design: Weighing just 6Kg, it ensures easy handling and installation.
4. Durable Material: Made of 20CrMnTi / Q345 steel, it guarantees long-lasting use.
5. Wide Compatibility: It fits a range of tractors and farm implements, making it a versatile choice.

Applications of PTO Shaft FFT4*1000m

The PTO Shaft FFT4*1000m is widely used in various agricultural applications, including:

1. 1. Tractors: It serves as an essential component in transmitting power from tractors to various implements.
   2. Farm Implements: It is used in mowers, toppers, and rotovators for efficient operation.
   3. Harvesting Machines: It is used in various harvesting machines, facilitating the harvesting process.
   4. Tillage Equipment: It is used in tillage equipment for preparing soil for planting.
   5. Planting Machines: It is used in planting machines for sowing seeds.

How Does the Agricultural PTO Shaft Work?

The agricultural power take-off (PTO) shaft, such as the PTO Shaft FFT4*1000m, plays a vital role in transmitting power from a tractor to agricultural implements or machinery. The working mechanism involves:

1. Power Source: The PTO shaft is connected to the rear of a tractor or other power source with a PTO, which is a rotating driveshaft extending from the engine's rear.
2. PTO Shaft: The PTO shaft, a telescopic, splined shaft, connects to the PTO output on the power source. It consists of two or more sections that can adjust the length.
3. Implement Connection: The other end of the PTO shaft connects to the agricultural implement's input.
4. Splined Coupling: A splined coupling mechanism connects the PTO shaft to the implement.
5. Power Transmission: Once connected, power is transmitted from the power source to the implement through the rotating PTO shaft. The rotational energy enables the implement to perform its function.
6. Safe Operation: Safety mechanisms ensure the shaft does not disconnect during operation.

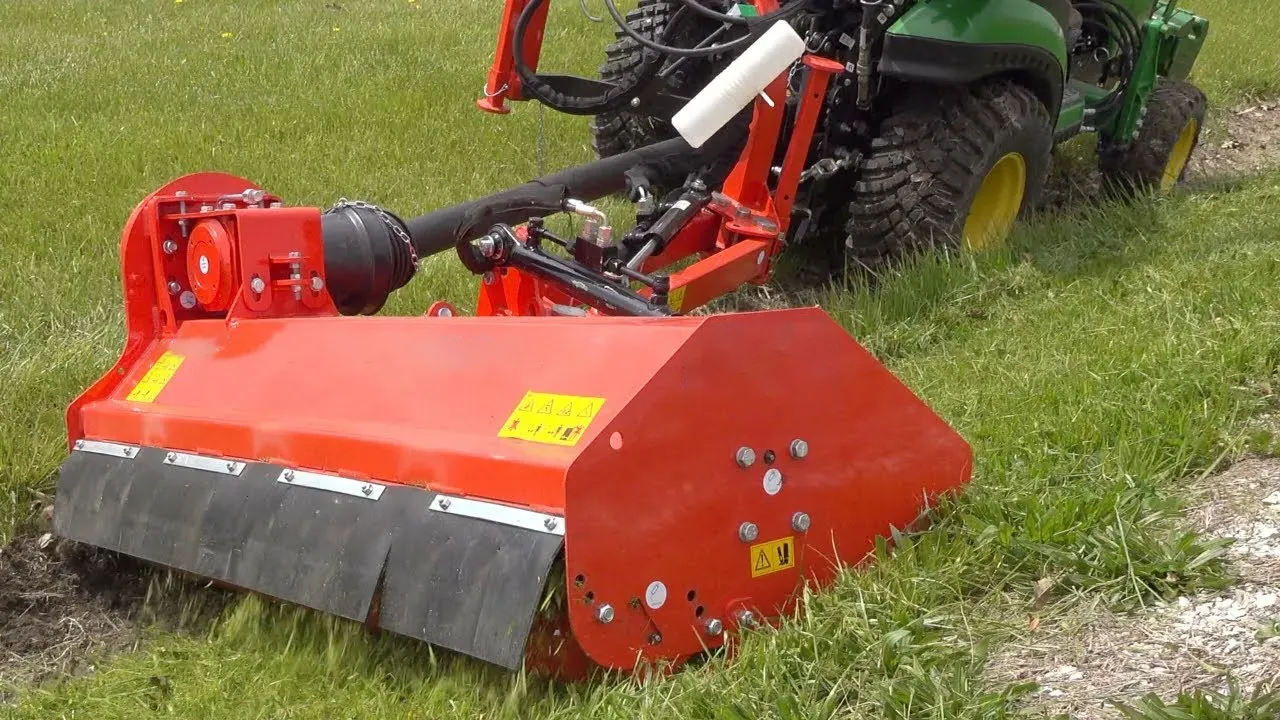

Installation of PTO Shaft FFT4*1000m

The installation of the PTO Shaft FFT4*1000m involves the following steps:

1. Safety Precautions: Ensure the power source is turned off, and personal protective equipment is used.
2. Select the Correct PTO Shaft: Match the shaft with your equipment and tractor's needs.
3. Adjust Shaft Length: Adjust the telescopic shaft length to match the distance between the PTO output and input.
4. Attach the PTO Shaft to the Power Source: Connect one end of the shaft to the power source's PTO output.
5. Connect the PTO Shaft to the Implement: Align the splined coupling on the other end with the implement's PTO input shaft.
6. Secure the PTO Shaft: Use any provided locking mechanisms to secure the shaft connections.
7. Install Protective Shields: Ensure the PTO shaft is protected by installing the appropriate shields or guards.
8. Test the PTO Shaft: Start the power source, engage the PTO, and observe for smooth operation.

Maintenance and Care of PTO Shaft FFT4*1000m

Maintaining the PTO Shaft FFT4*1000m ensures its efficient operation and longevity. The maintenance and care tips include:

1. Regular Inspections: Check for signs of wear, damage, or loose connections.
2. Lubrication: Apply lubrication to the PTO shaft as per the manufacturer's recommendations.
3. Shield Maintenance: Regularly check the condition of the protective shields and replace if damaged.
4. Tighten Loose Connections: Check all bolts, pins, and fasteners and tighten them as necessary.
5. Balance and Alignment: If vibrations are noticed during operation, inspect the shaft for balance and alignment issues.
6. Replace Worn or Damaged Parts: Replace any worn or damaged components promptly.
7. Safe Storage: Store the PTO shaft in a clean, dry area when not in use.

Why Choose AGKNX's Agricultural PTO Shafts?

AGKNX HZPT Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a leading manufacturer of PTO Shafts, agricultural gearboxes, Industrial Cardan Shafts, Car Driveshafts, U-Joint Coupling Shafts, Torque Limiters, PTO Shaft Tubes, and Universal Joints, etc. The company is renowned for its quality products, quick delivery, and competitive prices.

With international certifications like CE, TS/16949, and ISO9001, AGKNX ensures the highest quality of its products. The company offers customized services, advanced production facilities, and excellent after-sales services, making it a trusted choice for customers worldwide.
