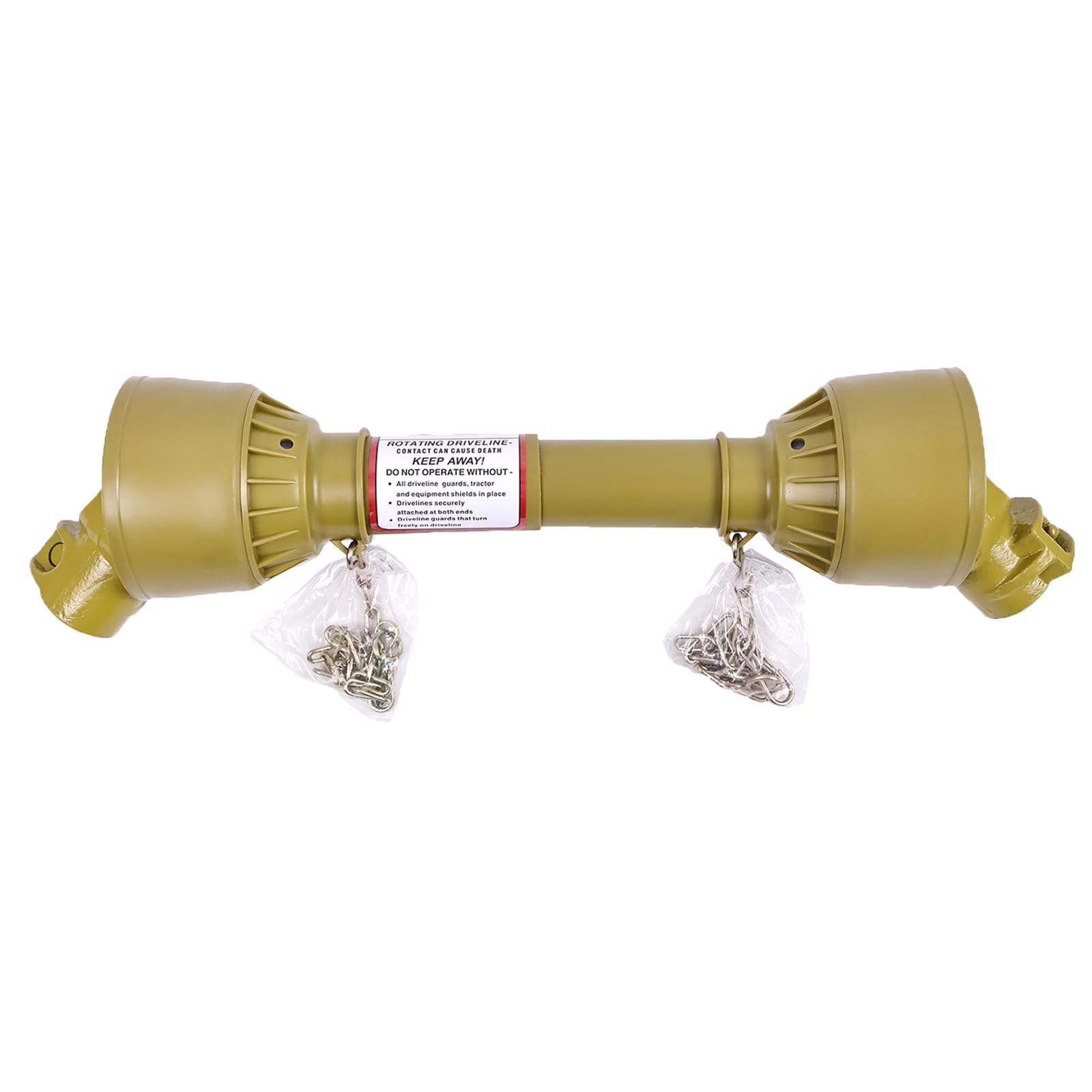

PTO Shaft T1 Crossφ22*54; 1-3/8″ 6 Spline Triangle Pipe 20”-24” Yellow for Tractor

The PTO Shaft T1, produced by China AGKNX Group, is a power-packed tool that is indispensable to the modern farming industry. This robust and versatile component is ideal for a variety of farm machinery and tractors. With its powerful rating of 16HP at 540RPM, it offers substantial power to enhance your farm operations. It is available in multiple colors including green, orange, yellow, and black, and made from robust 20CrMnTi / Q345 steel.

The Structure of PTO Shaft:

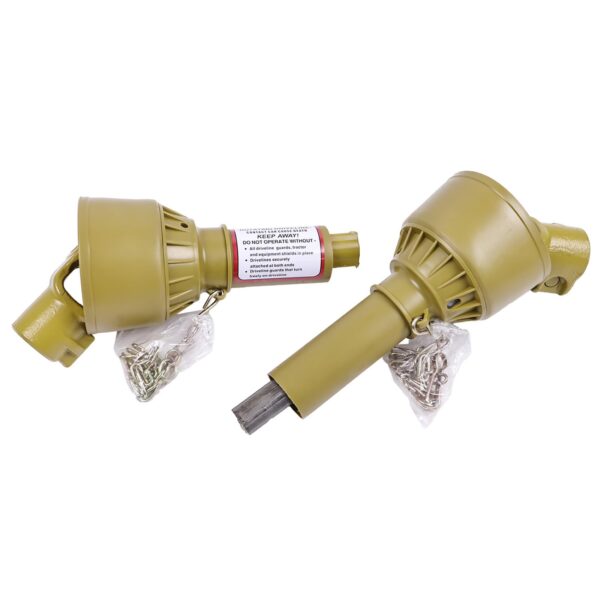

PTO Shaft Parts:

PTO Shaft Tube:

PTO Shaft Cross Joint:

Features of the PTO Shaft T1

Our PTO Shaft T1 is packed with numerous features that make it stand out:

• It is made from high-quality, robust 20CrMnTi / Q345 steel that ensures durability and longevity.
• It has a powerful power rating of 16HP at 540RPM, ensuring efficient operation of your farm equipment.
• The PTO Shaft T1 is available in various colors including green, orange, yellow, and black, allowing you to choose the one that fits your needs.
• It has a versatile tube type, available in triangular, star, square, hexangular, spline, and special shapes, catering to a wide range of agricultural implements.
• It features an extended overall length of 23.6″ / 600 mm, providing the necessary reach for your farm machinery.

Our PTO Shaft T1 is a perfect replacement for damaged parts on Agricultural PTO shafts. Produced with meticulous attention to detail and quality, it is designed to enhance the performance and lifespan of your farm machinery.

Applications of the PTO Shaft T1

The PTO Shaft T1 is versatile and can be used in various applications:

• Tractors: This PTO Shaft is ideal for all types of tractors, providing them with the necessary power to operate efficiently.
• Farm Implements: It can be used with a variety of farm implements to enhance their performance and productivity.
• Mowers: Use this PTO Shaft to power your mowers for efficient grass cutting.
• Rotovator: It provides the necessary power for your rotovator to work efficiently.
• Topper: This PTO Shaft is perfect for toppers, enabling them to operate at their maximum potential.

How Does the Agricultural PTO Shaft Work?

The agricultural power take-off (PTO) shaft is a critical component in connecting the tractor's power to various equipment such as mowers, balers, tillers, and more. Here's how it works:

1. Power Source: The PTO shaft is typically connected to the rear of a tractor or other power source equipped with a PTO. The PTO is a rotating driveshaft that extends from the rear of the tractor's engine.
2. PTO Shaft: The PTO shaft is a telescopic, splined shaft that connects to the PTO output on the power source. It consists of two or more sections that can slide in and out to adjust the length. The shaft is usually made of steel and has a specific number of splines that match those on the PTO output.
3. Implement Connection: The other end of the PTO shaft is connected to the input of the agricultural implement. The implement typically has a PTO input shaft that matches the splines on the PTO shaft.
4. Splined Coupling: To connect the PTO shaft to the implement, a splined coupling mechanism is used. It consists of two halves with matching splines. One half is attached to the PTO shaft, and the other half is attached to the implement's input shaft. When the two halves are aligned, they are engaged by sliding them together, creating a solid connection.
5. Power Transmission: Once the PTO shaft is connected, power is transmitted from the power source to the implement through the rotating PTO shaft. As the power source rotates the PTO shaft, the implement's input shaft also rotates, driving the machinery or implements attached to it. The PTO shaft transfers the rotational energy, enabling the implement to perform its intended function, such as cutting grass, tilling soil, or harvesting crops.

Installation of the PTO Shaft T1

Installing the PTO Shaft T1 is a straightforward process, provided you follow these steps:

1. Safety Precautions: Before beginning the installation process, ensure that the power source is turned off, the engine is shut down, and the tractor is parked on a level surface. Use appropriate personal protective equipment, such as gloves and safety glasses, to protect yourself during the installation process.
2. Select the Correct PTO Shaft: Ensure that you have the right PTO shaft for your equipment and tractor. Consider the required length, spline size, and RPM rating of the PTO shaft to match your specific needs.
3. Adjust Shaft Length: If your PTO shaft is telescopic, adjust the length to match the distance between the power source's PTO output and the implement's PTO input. Avoid extending the shaft to its maximum length, as it may reduce stability and increase the risk of damage.
4. Attach the PTO Shaft to the Power Source: Connect one end of the PTO shaft to the power source's PTO output. Align the splines on the PTO shaft with those on the PTO output and slide the shaft onto the output until it fits securely. Ensure that the locking mechanism, such as a collar or pin, engages to prevent the shaft from disconnecting during operation.
5. Connect the PTO Shaft to the Implement: Align the splined coupling on the other end of the PTO shaft with the implement's PTO input shaft. Slide the two halves of the splined coupling together until they are fully engaged. Ensure that the coupling locks securely and that there is no excessive play or movement.
6. Secure the PTO Shaft: Use any provided locking mechanisms, such as retaining pins or collars, to secure the PTO shaft connections on both ends. These mechanisms prevent accidental disconnection of the shaft during operation.
7. Install Protective Shields: Ensure that the PTO shaft is adequately protected by installing the appropriate shields or guards. These shields should cover all rotating sections of the PTO shaft and prevent accidental contact. Secure the shields in place using the provided fasteners.
8. Test the PTO Shaft: Once the installation is complete, start the power source and engage the PTO. Observe the PTO shaft and connections to ensure smooth and balanced operation. Listen for any unusual noises or vibrations that may indicate misalignment or other issues. If any problems are detected, immediately turn off the power source and address the concerns before proceeding.

Maintenance and Care of the PTO Shaft T1

Proper maintenance and regular care of agricultural power take-off (PTO) shafts are crucial for ensuring their safe and efficient operation. Here are some maintenance tips to keep your PTO shaft in good condition:

1. Regular Inspections: Perform visual inspections of the PTO shaft before each use. Check for signs of wear, damage, or loose connections. Look for any cracks, bends, or missing parts. Inspect the protective shields or guards for any signs of damage or wear as well.
2. Lubrication: Apply lubrication to the PTO shaft according to the manufacturer's recommendations. Lubricate the splines, sliding sections, and any moving parts. Proper lubrication reduces friction, prevents corrosion, and ensures smooth operation. Use a suitable lubricant recommended by the manufacturer.
3. Shield Maintenance: Check the condition of the protective shields or guards regularly. Ensure that they are securely fastened and not damaged. Replace any shields that are cracked, broken, or missing. These shields are essential for preventing accidental contact with the rotating shaft, reducing the risk of injury.
4. Tighten Loose Connections: Over time, connections on the PTO shaft may become loose due to vibrations and normal usage. Check all bolts, pins, and fasteners and tighten them as necessary. Be careful not to overtighten, as it can cause damage or deformation.
5. Balance and Alignment: Imbalanced or misaligned PTO shafts can cause excessive vibrations, leading to premature wear and potential failure. If you notice vibrations during operation, have the shaft inspected for balance and alignment issues.
6. Replace Worn or Damaged Parts: If you identify any worn or damaged components during inspections, replace them promptly. This includes worn-out splines, damaged couplings, or any other parts that affect the performance or safety of the PTO shaft.
7. Safe Storage: When not in use, store the PTO shaft in a clean, dry area away from moisture, chemicals, and direct sunlight. Protect it from any potential physical damage or contact with sharp objects. Proper storage helps prevent corrosion and extends the lifespan of the shaft.
