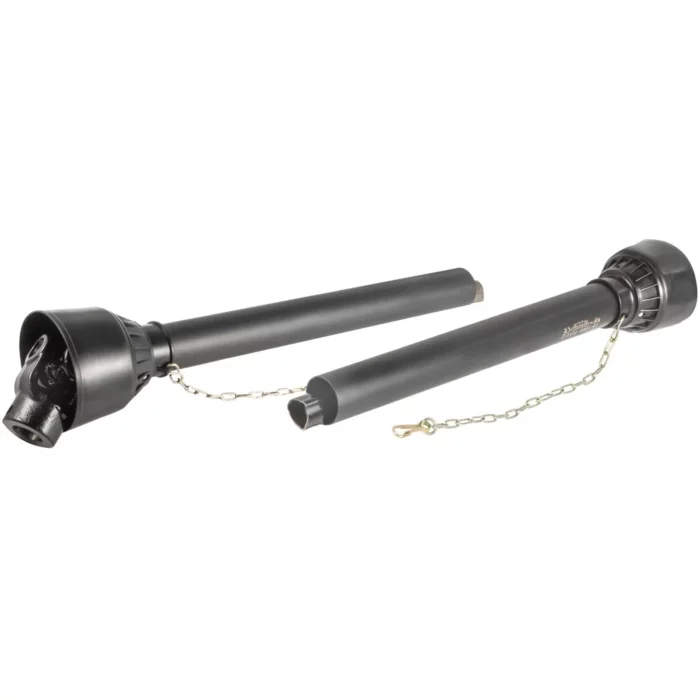

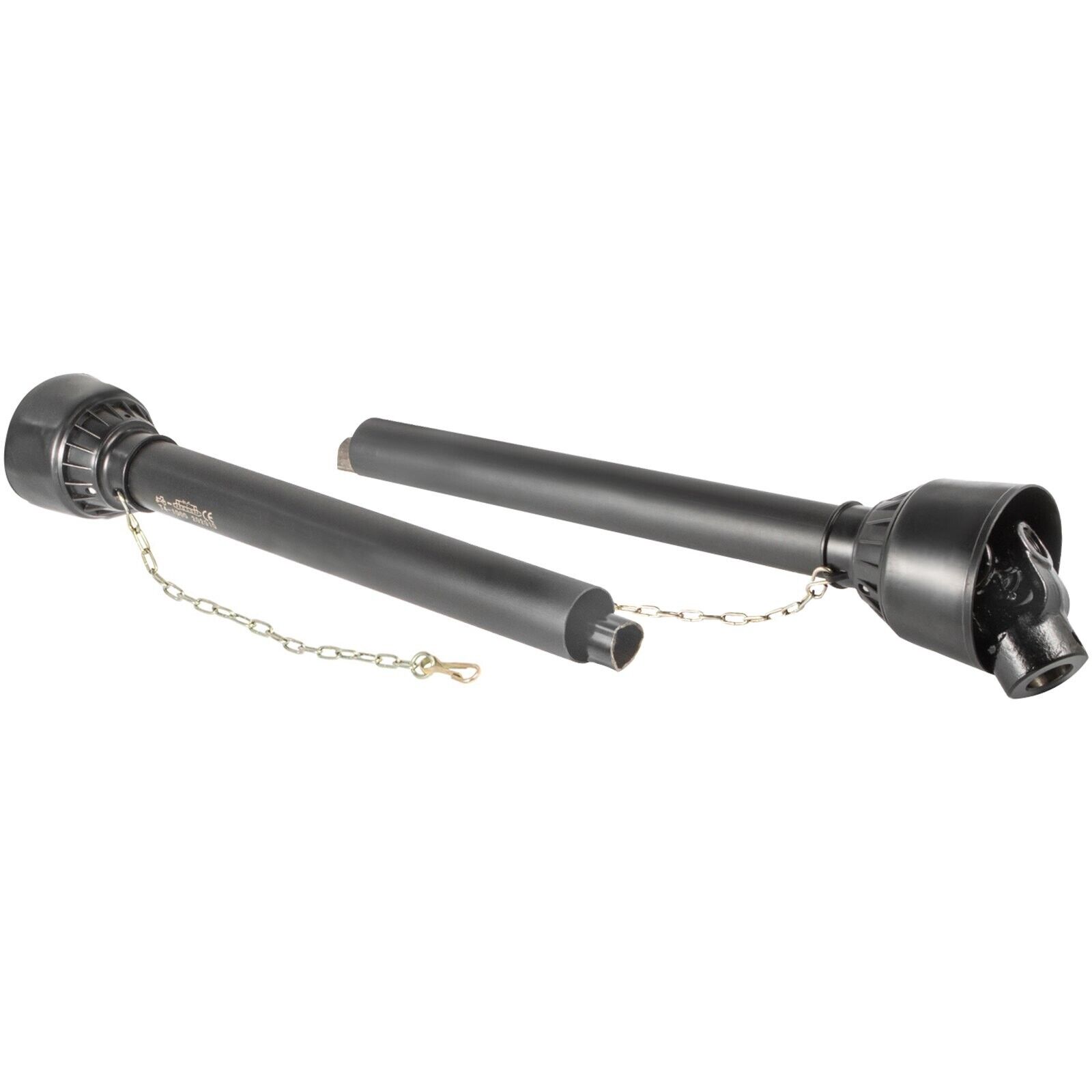

PTO Shaft T2 Crossφ23.8*61.3; 1-3/8″ 6 Spline Triangle Pipe 1000mm Yellow for Tractor

China AGKNX Group is a renowned manufacturer of PTO Shaft T2. This product is a vital component for various agricultural machines. It features a cross section of 23.8*61.3, 1-3/8" 6 Spline Triangle Pipe with an overall closed length of 1000mm. The universal joint size stands at 23.8mm x 61.3mm, and the tractor end is 1-3/8" x 6 Spline. The pipe material is 20CrMnTi / Q345 steel and the yoke material is made by forging. It weighs 8Kg and is available in various colors including green, orange, yellow, and black. This PTO shaft can fit various types of tractors and farm implements including mowers, toppers, and rotovators.

The Structure of PTO Shaft:

PTO Shaft Parts:

PTO Shaft Tube:

PTO Shaft Cross Joint:

Features of the PTO Shaft T2

The PTO Shaft T2 is more than just a component; it's a game-changer in the agricultural world. Here are some of its standout features:

• Durability: Made from 20CrMnTi / Q345 steel, this PTO shaft is built to last and withstand the rigors of farm work.
• Compatibility: It fits a wide variety of tractors and farm implements, making it a versatile choice for farmers and agricultural professionals.
• Power Rating: With a power rating of 21HP at 540RPM, this PTO shaft can handle heavy-duty tasks with ease.
• Variety of Colors: Available in green, orange, yellow, and black, you can choose the one that suits your preference.
• Weight: Weighing just 8kg, it's lightweight yet sturdy making it easy to install and use.

China AGKNX Group can produce this product in large quantities and at an excellent quality level. It's a perfect replacement for corresponding parts that are damaged on Agricultural PTO shafts.

Applications of the PTO Shaft T2

The PTO Shaft T2 isn't just versatile in terms of the tractors it can fit, but it's also flexible when it comes to its applications. Here are some of its uses:

• It can be used in various farm implements such as mowers, enhancing their efficiency and productivity.
• It's an ideal choice for toppers, making them more reliable and durable.
• Rotovators can benefit from this PTO shaft, as it can enhance their performance and longevity.
• It can also be used in various types of tractors, making them more powerful and efficient.
• Other farm machinery and implements can also benefit from this PTO shaft, making it a versatile choice for agricultural professionals.

How Does the Agricultural PTO Shaft Work?

The agricultural power take-off (PTO) shaft is a mechanical device used to transmit power from a tractor or other power source to agricultural implements or machinery. Let's delve into how it works:

1. Power Source: The PTO shaft is typically connected to the rear of a tractor or other power source equipped with a PTO. The PTO is a rotating driveshaft that extends from the rear of the tractor's engine.
2. PTO Shaft: It's a telescopic, splined shaft that connects to the PTO output on the power source. It consists of two or more sections that can slide in and out to adjust the length.
3. Implement Connection: The other end of the PTO shaft is connected to the input of the agricultural implement. The implement typically has a PTO input shaft that matches the splines on the PTO shaft.
4. Splined Coupling: This mechanism connects the PTO shaft to the implement. It consists of two halves with matching splines. One half is attached to the PTO shaft, and the other half is attached to the implement's input shaft.
5. Power Transmission: Once connected, power is transmitted from the power source to the implement through the rotating PTO shaft. This rotational energy enables the implement to perform its intended function, such as cutting grass, tilling soil, or harvesting crops.
6. Efficiency: The PTO shaft can significantly enhance the efficiency of various farm implements, making them more productive and reliable.

Installation of the PTO Shaft T2

Installing the PTO Shaft T2 can be a straightforward process if the following steps are observed:

1. Safety Precautions: Before beginning the installation process, ensure that the power source is turned off, the engine is shut down, and the tractor is parked on a level surface. Use appropriate personal protective equipment, such as gloves and safety glasses, to protect yourself during the installation process.
2. Select the Correct PTO Shaft: Ensure that you have the right PTO shaft for your equipment and tractor. Consider the required length, spline size, and RPM rating of the PTO shaft to match your specific needs.
3. Adjust Shaft Length: If your PTO shaft is telescopic, adjust the length to match the distance between the power source's PTO output and the implement's PTO input. Avoid extending the shaft to its maximum length, as it may reduce stability and increase the risk of damage.
4. Attach the PTO Shaft to the Power Source: Connect one end of the PTO shaft to the power source's PTO output. Align the splines on the PTO shaft with those on the PTO output and slide the shaft onto the output until it fits securely.
5. Connect the PTO Shaft to the Implement: Align the splined coupling on the other end of the PTO shaft with the implement's PTO input shaft. Slide the two halves of the splined coupling together until they are fully engaged.
6. Secure the PTO Shaft: Use any provided locking mechanisms, such as retaining pins or collars, to secure the PTO shaft connections on both ends. These mechanisms prevent accidental disconnection of the shaft during operation.
7. Install Protective Shields: Ensure that the PTO shaft is adequately protected by installing the appropriate shields or guards. These shields should cover all rotating sections of the PTO shaft and prevent accidental contact.
8. Test the PTO Shaft: Once the installation is complete, start the power source and engage the PTO. Observe the PTO shaft and connections to ensure smooth and balanced operation. Listen for any unusual noises or vibrations that may indicate misalignment or other issues.

Maintenance and Care of the PTO Shaft T2

Proper maintenance and regular care of agricultural power take-off (PTO) shafts are crucial for ensuring their safe and efficient operation. Here are some maintenance tips to keep your PTO shaft in good condition:

1. Regular Inspections: Perform visual inspections of the PTO shaft before each use. Check for signs of wear, damage, or loose connections.
2. Lubrication: Apply lubrication to the PTO shaft according to the manufacturer's recommendations. Lubricate the splines, sliding sections, and any moving parts.
3. Shield Maintenance: Check the condition of the protective shields or guards regularly. Ensure that they are securely fastened and not damaged.
4. Tighten Loose Connections: Over time, connections on the PTO shaft may become loose due to vibrations and normal usage. Check all bolts, pins, and fasteners and tighten them as necessary.
5. Balance and Alignment: Imbalanced or misaligned PTO shafts can cause excessive vibrations, leading to premature wear and potential failure. If you notice vibrations during operation, have the shaft inspected for balance and alignment issues.
6. Replace Worn or Damaged Parts: If you identify any worn or damaged components during inspections, replace them promptly. This includes worn-out splines, damaged couplings, or any other parts that affect the performance or safety of the PTO shaft.
7. Safe Storage: When not in use, store the PTO shaft in a clean, dry area away from moisture, chemicals, and direct sunlight. Protect it from any potential physical damage or contact with sharp objects.

Why Choose AGKNX's Agricultural PTO Shafts?

AGKNX HZPT Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a leading manufacturer and supplier of PTO Shafts, agricultural gearboxes, Industrial Cardan Shafts, Car Driveshafts, U-Joint Coupling Shafts, Torque Limiters, PTO Shaft Tubes, and Universal Joints. Our products have gained a great reputation from customers worldwide thanks to our commitment to quality, speedy delivery, and competitive pricing.

Our annual turnover is 60 million RMB, 9 Million Dollars, and It??s increasing year by year. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. HZPT Driveshaft insisted on our ??QDP?? principles: Quality first, Deliver quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery.

We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, AGKNX continues its activities with the aim of becoming a global company in the fields it works.
