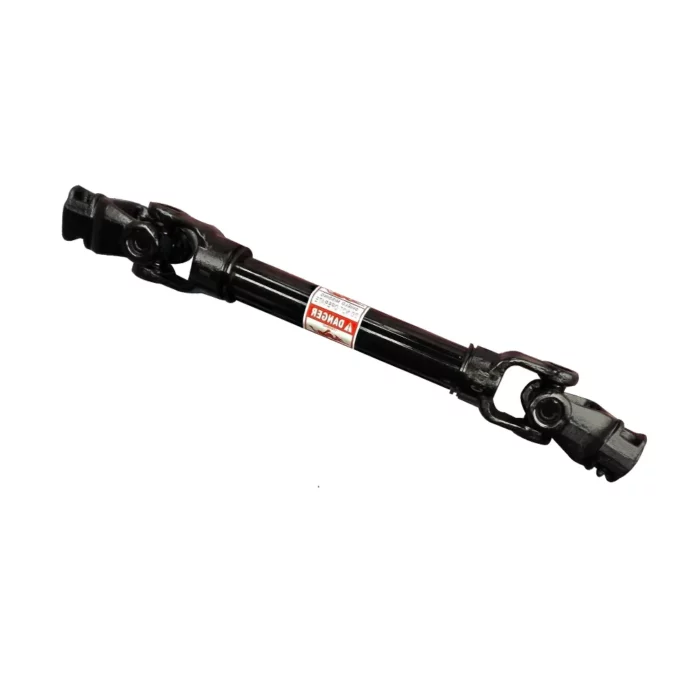

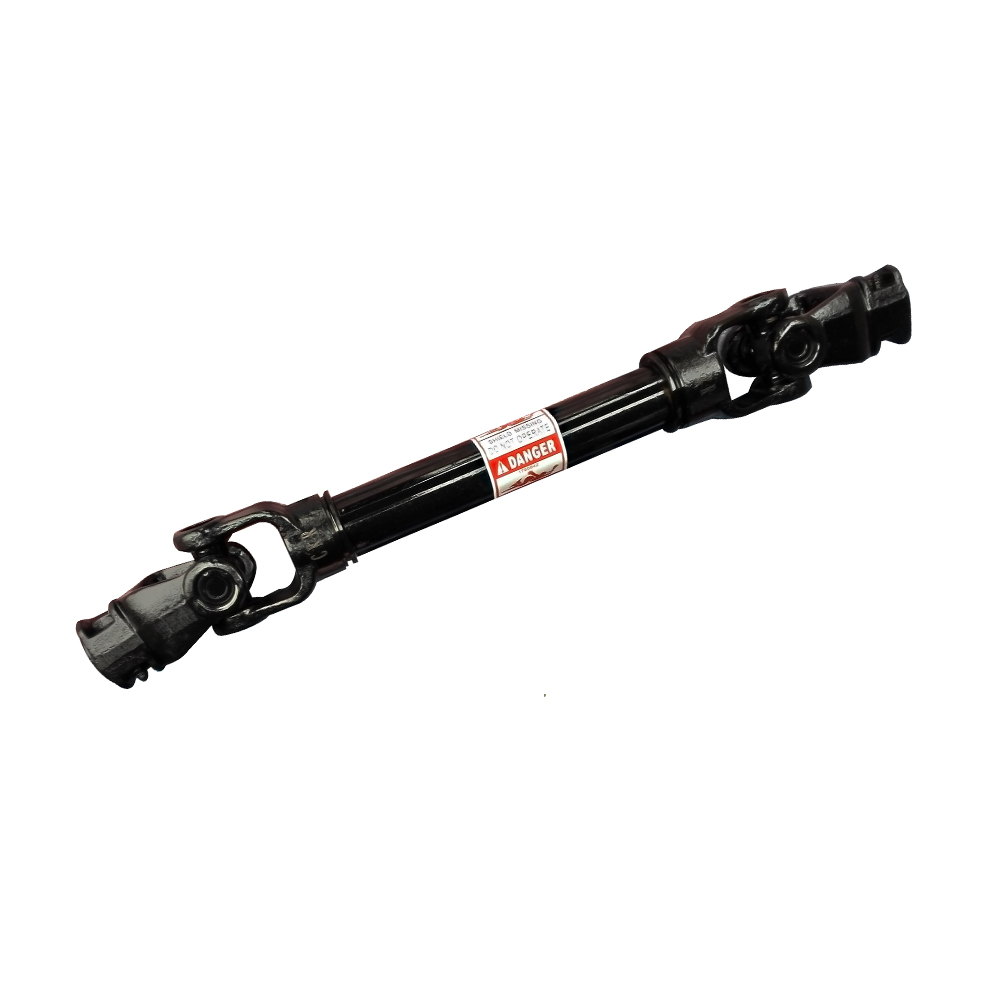

PTO Shaft T5 Crossφ30.2*80; 1-3/8″ 6 Spline Triangle Pipe 1300mm Black for Tractor

This product is manufactured by the China AGKNX Group, a reputable name in the industry. It has a power rating of 47HP at 540RPM, an overall closed length of 1300mm, and a universal joint size of 30.2mm x 80mm. The tractor end, as well as the implement end, features a 1-3/8″ Z6 spline. Made from high-quality 20CrMnTi / Q345 steel, the pipe material guarantees durability while the yoke material is crafted through forging. The tube boasts a variety of types - triangular, star, square, hexangular, spline, special - making it versatile and adaptable. Weighing 15.8Kg, it is available in a number of colours: green, orange, yellow, and black.

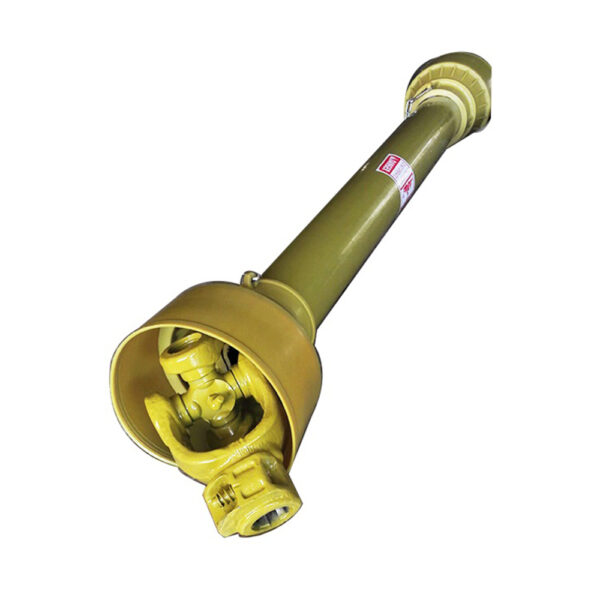

The Structure of PTO Shaft:

PTO Shaft Parts:

PTO Shaft Tube:

PTO Shaft Cross Joint:

Key Features of PTO Shaft T5

The PTO Shaft T5 is a robust, reliable, and versatile product that serves as an ideal replacement for damaged agricultural PTO shafts. Here are some of its key features:

1. Durability: Made from high-quality 20CrMnTi / Q345 steel, it ensures a long lifespan.
2. Versatility: With a variety of tube types and colours, it caters to a vast range of applications and preferences.
3. High Power Rating: With a power rating of 47HP @ 540RPM, it can handle heavy-duty tasks efficiently.
4. Universal Fit: The universal joint size and the 1-3/8" Z6 spline on both ends ensure compatibility with various tractors and implements.
5. Improved Performance: The forged yoke material and the precise spline dimensions enhance the overall performance of the shaft.

Our manufacturing capabilities make us the perfect choice for producing this highly functional and durable product, ensuring a seamless fit for your agricultural needs.

Applications of PTO Shaft

The PTO Shaft T5 is an essential component for various tractors and farm implements. Here are some of its main applications:

1. Power transmission in tractors
2. Operation of farm implements and machinery
3. Use in mowers for effective grass cutting
4. Application in toppers for topping plants
5. Use in rotovators for breaking up soil

Working of the Agricultural PTO Shaft

The agricultural power take-off (PTO) shaft is a mechanical device used to transmit power from a tractor or other power source to agricultural implements or machinery. Here??s how it works:

1. Power Source: The PTO shaft is connected to the rear of a tractor or other power source equipped with a PTO. The PTO is a rotating driveshaft that extends from the rear of the tractor's engine.
2. PTO Shaft: The PTO shaft is a telescopic, splined shaft that connects to the PTO output on the power source. It has two or more sections that can slide in and out to adjust the length.
3. Implement Connection: The other end of the PTO shaft is connected to the input of the agricultural implement. The implement typically has a PTO input shaft that matches the splines on the PTO shaft.
4. Splined Coupling: A splined coupling mechanism is used to connect the PTO shaft to the implement. It consists of two halves with matching splines. One half is attached to the PTO shaft, and the other half is attached to the implement's input shaft.
5. Power Transmission: Once the PTO shaft is connected, power is transmitted from the power source to the implement through the rotating PTO shaft. The implement's input shaft also rotates, driving the machinery or implements attached to it.
6. Equipment Operation: The PTO shaft transfers the rotational energy, enabling the implement to perform its intended function, such as cutting grass, tilling soil, or harvesting crops.

Installation of the PTO Shaft

Proper installation of the PTO shaft is crucial for its safe and efficient operation. Here are the steps for a correct installation:

1. Safety Precautions: Ensure that the power source is turned off, the engine is shut down, and the tractor is parked on a level surface. Use appropriate personal protective equipment.
2. Select the Correct PTO Shaft: Ensure that you have the right PTO shaft for your equipment and tractor. Consider the required length, spline size, and RPM rating.
3. Adjust Shaft Length: If your PTO shaft is telescopic, adjust the length to match the distance between the power source's PTO output and the implement's PTO input.
4. Attach the PTO Shaft to the Power Source: Connect one end of the PTO shaft to the power source's PTO output. Align the splines on the PTO shaft with those on the PTO output and slide the shaft onto the output.
5. Connect the PTO Shaft to the Implement: Align the splined coupling on the other end of the PTO shaft with the implement's PTO input shaft. Slide the two halves of the splined coupling together until they are fully engaged.
6. Secure the PTO Shaft: Use any provided locking mechanisms to secure the PTO shaft connections on both ends.
7. Install Protective Shields: Ensure that the PTO shaft is adequately protected by installing the appropriate shields or guards. Secure the shields in place using the provided fasteners.
8. Test the PTO Shaft: Once the installation is complete, start the power source and engage the PTO. Observe the PTO shaft and connections to ensure smooth and balanced operation. If any problems are detected, immediately turn off the power source and address the concerns before proceeding.

Maintenance and Care of the PTO Shaft

Proper maintenance and regular care of agricultural power take-off (PTO) shafts are crucial for ensuring their safe and efficient operation. Here are some maintenance tips:

1. 1. Regular Inspections: Perform visual inspections of the PTO shaft before each use. Check for signs of wear, damage, or loose connections. Look for any cracks, bends, or missing parts.
   2. Lubrication: Apply lubrication to the PTO shaft according to the manufacturer's recommendations. Lubricate the splines, sliding sections, and any moving parts.
   3. Shield Maintenance: Check the condition of the protective shields or guards regularly. Ensure that they are securely fastened and not damaged. Replace any shields that are cracked, broken, or missing.
   4. Tighten Loose Connections: Over time, connections on the PTO shaft may become loose due to vibrations and normal usage. Check all bolts, pins, and fasteners and tighten them as necessary.
   5. Balance and Alignment: Imbalanced or misaligned PTO shafts can cause excessive vibrations, leading to premature wear and potential failure. If you notice vibrations during operation, have the shaft inspected for balance and alignment issues.
   6. Replace Worn or Damaged Parts: If you identify any worn or damaged components during inspections, replace them promptly. This includes worn-out splines, damaged couplings, or any other parts that affect the performance or safety of the PTO shaft.
   7. Safe Storage: When not in use, store the PTO shaft in a clean, dry area away from moisture, chemicals, and direct sunlight. Protect it from any potential physical damage or contact with sharp objects.

Why Choose AGKNX's Agricultural PTO Shafts?

AGKNX HZPT Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a leading manufacturer of PTO Shafts, agricultural gearboxes, Industrial Cardan Shafts, Car Driveshafts, U-Joint Coupling Shafts, Torque Limiters, PTO Shaft Tubes, and Universal Joints. Our annual turnover is 60 million RMB, 9 Million Dollars, and It??s increasing year by year. We have a great reputation among our clients from Europe, America, Asia, Australia, and North America. We are a top professional OEM supplier for many agricultural implement factories in the domestic market. HZPT Driveshaft insists on our ??QDP?? principles: Quality first, Deliver quickly, and Price Competitive. We have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Our company exports its products to more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, AGKNX continues its activities with the aim of becoming a global company in the fields it works.

Meet AGKNX's Professionalism

AGKNX exudes professionalism in every aspect of our business. We possess international certifications such as CE, TS/16949, and ISO9001, which attest to our adherence to global quality standards. We offer customized services to meet the unique requirements of our customers. Our state-of-the-art production facilities are equipped with advanced machinery and tools, ensuring high-quality product output. Our dedicated after-sales service team is always ready to assist our clients with their needs and queries.
