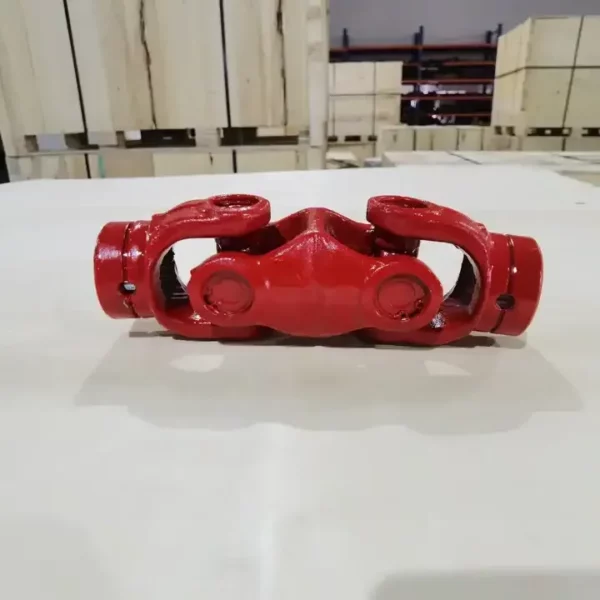

Red Spraying 23.8*61 Tractor Parts PTO Drive Shaft Double Joint Torque Limiter for Power Mower

Introducing the red spraying 23.8*61 tractor parts PTO drive shaft double joint torque limiter for power mower. This brand-new product, suitable for various industries, weighs 1.5 KG and comes with a 1-year warranty. It's a double joint yoke type, perfect for tractors and tractor implements. The product is made from 1045C material, processed by forging, and comes with a CE ISO TS certificate. It features a 1 3/8'' Z21 teeth and is designed for PTO shaft parts usage. The cross kit measures 23.8*61.3, while the spline yoke has 21 teeth round yoke. This product comes in a stunning red color, adding a touch of vibrancy to your machinery.

SD Double Universal Joint Specifications

Features of the Red Spraying 23.8*61 Tractor Parts PTO Drive Shaft Double Joint

The red spraying 23.8*61 tractor parts PTO drive shaft double joint is a top-tier component designed to replace corresponding parts on SD Double Universal Joint for PTO Shaft. It brings to the table numerous exceptional features:

• • Quality Material: Crafted from 1045C, a top-quality material known for its durability and reliability.
  • Forging Process: The product undergoes a forging process, ensuring its strength and longevity.
  • Double Joint Yoke: This feature ensures smoother power transmission between the tractor and the implement.
  • CE ISO TS Certified: The product comes with a CE ISO TS certificate, confirming its high-quality standards and safety.
  • 1 Year Warranty: This PTO shaft double joint comes with a 1-year warranty, ensuring customer satisfaction and product reliability.

Our production capabilities ensure that this product is readily available for your tractor needs. It's a perfect replacement for damaged parts on your SD Double Universal Joint for PTO Shaft.

Applications of the SD Double Universal Joint for a Tractor PTO Shaft

The SD Double Universal Joint for a tractor PTO shaft has numerous agricultural applications, making it a vital component in the power transmission system of agricultural machinery. Here are some key agricultural applications:

• Operation of Implements: The SD Double Universal Joint transfers power from the tractor's PTO shaft to various agricultural implements, enabling efficient operation of mowers, balers, seeders, sprayers, and harvesters.
• Flexibility on Uneven Terrain: The SD Double Universal Joint accommodates changes in angle and misalignment when the tractor traverses uneven ground, ensuring continuous power transmission.
• Reduction of Vibrations and Shock: The SD Double Universal Joint minimizes vibrations and shock during the operation of agricultural machinery.
• Compatibility with Various Implements: The SD Double Universal Joint is compatible with a wide range of agricultural implements, enhancing the versatility and productivity of agricultural machinery.
• Safety and Equipment Protection: The SD Double Universal Joint contributes to the safety of agricultural operations by reducing the risk of equipment failure and accidents.
• Efficient Attachment and Removal of Implements: The SD Double Universal Joint facilitates the quick and easy attachment and removal of implements to the tractor's PTO shaft.

Types of Tractor PTO Shaft Torque Limiters

Tractor PTO shaft torque limiters are safety devices designed to protect the PTO system and connected equipment from excessive torque and prevent damage or accidents. Here are some common types:

• Shear Pin Torque Limiter: This type of torque limiter uses a shear pin to transmit torque. When the torque exceeds a predetermined limit, the shear pin shears off, disconnecting the power transmission.
• Friction Clutch Torque Limiter: Friction clutch torque limiters use a disc or plate clutch mechanism to limit torque transmission. When the torque exceeds a certain threshold, the clutch slips, decoupling the power transmission temporarily.
• Ball Detent Torque Limiter: Ball detent torque limiters utilize a ball mechanism to limit torque transmission. When the torque exceeds a specific limit, the balls are forced out of their detents, causing the clutch to slip and interrupting power transmission.
• Ratchet Torque Limiter: Ratchet torque limiters employ a ratchet mechanism to limit torque transmission. They consist of a series of teeth that engage and disengage under torque load.
• Slip Clutch Torque Limiter: Slip clutch torque limiters utilize a clutch mechanism with adjustable friction to limit torque transmission. The clutch slips when the torque exceeds a certain threshold, temporarily interrupting power transmission.

How Does the SD Double Universal Joints for PTO Shaft Work?

The SD Double Universal Joint for a tractor PTO (Power Take-Off) shaft is a mechanical device that allows for the transmission of power from the tractor's engine to attached implements. Here's how it works:

• • Universal Joints: The SD Double Universal Joint incorporates two universal joints, also known as Cardan joints. Each universal joint consists of a cross-shaped yoke with four arms.
  • Centering Yoke: The centering yoke connects the two universal joints. It is typically a square or rectangular-shaped yoke with a center hole that fits over the tractor's PTO shaft.
  • Attached Implements: One end of the SD Double Universal Joint is connected to the tractor's PTO shaft, which is driven by the engine power. The other end of the universal joint is connected to the implement or machinery that requires power.
  • Power Transmission: As the tractor's engine generates rotational power, it is transferred to the PTO shaft. The PTO shaft, in turn, transmits this power to the universal joint at one end of the SD Double Universal Joint.
  • Flexibility: The SD Double Universal Joint provides flexibility and compensates for misalignment between the tractor and the implement. As the tractor moves, the PTO shaft and the implement may be at different angles or experience slight misalignment.

• Reducing Vibrations and Shock: The universal joints in the SD Double Universal Joint help absorb and reduce vibrations and shock during operation. They allow for slight movements and misalignment, preventing the transmission of excessive vibrations and shocks to the PTO system and attached implements.

Maintenance Methods for the SD Double Universal Joint for a Tractor PTO Shaft

Proper maintenance of the SD Double Universal Joint for a tractor PTO shaft is essential to ensure its longevity and optimal performance. Here are some maintenance methods to consider:

• Regular Inspection: Perform regular visual inspections of the SD Double Universal Joint to check for any signs of wear, damage, or loose connections.
• Lubrication: Proper lubrication is crucial for the smooth operation of the universal joint. Apply grease or oil to the universal joint's bearing caps and needle bearings, ensuring they are adequately lubricated.
• Grease Fittings: Check the grease fittings on the SD Double Universal Joint and ensure they are clean and functional. If any fittings are clogged or damaged, replace them promptly.
• Tighten Fasteners: Periodically check and tighten all fasteners, such as bolts and nuts, that secure the universal joint and the centering yoke.
• Avoid Overloading: Ensure that the tractor's PTO system and the attached implements are not subjected to excessive loads beyond their recommended capacity.
• Cleanliness: Keep the SD Double Universal Joint and the surrounding area clean from dirt, debris, and crop residues.
• Replacement of Worn Parts: If any components of the SD Double Universal Joint show signs of significant wear or damage, they should be promptly replaced.

Why Choose AGKNX's SD Double Universal Joint for PTO Shaft?

AGKNX Drive Shaft Co., Ltd. is a leading provider of top-quality PTO shafts, agricultural gearboxes, industrial cardan shafts, and more. Our company, located in Hangzhou Zhejiang City, is just a short drive from Pudong Airport and Xiaoshan Airport. We have a dedicated team of over 100 staff members working in a facility covering more than 12,000 m2. We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, industrial cardan shafts, PTO shaft tubes, PTO shaft yokes, PTO shaft universal joints, PTO shaft torque limiters, car driveshafts, and U-joint coupling shafts.

AGKNX Drive Shaft Co., Ltd. has earned a sterling reputation for the quality of our products. We insist on quality first, deliver quickly, and price competitively. Our products, including the SD Double Universal Joint for PTO shaft, are CE, TS/16949, and ISO9001 certified. We export our products to over 50 countries across five continents. We aim to become a global company in the fields we work in, offering the best-in-class brands in our product range. We warmly welcome everyone to visit us and establish a mutually beneficial long-term relationship.

Our systematic manufacturing equipment and QC team ensure our quality and delivery. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. Our annual turnover is 60 million RMB, 9 Million Dollars, and it??s increasing year by year. We offer customized services, professional after-sales services, and have a production facility that is more than equipped to meet the demands of our customers.

Experience the difference with AGKNX's SD Double Universal Joint for PTO Shaft. Quality, durability, and performance ?C all in one product.
