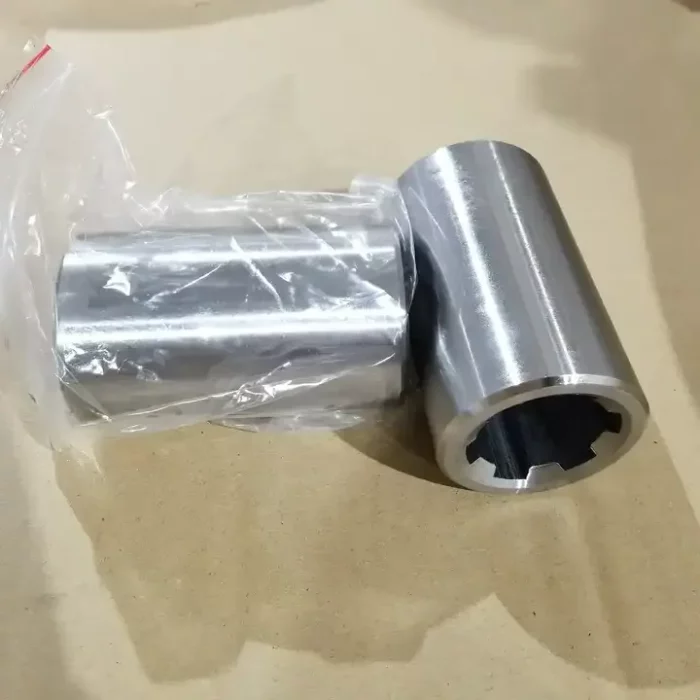

Round Splined Hubs – DIN ISO 14 made of Steel C45

Introducing the Round Splined Hubs made of Steel C45, compliant with DIN ISO 14. This brand new product comes with a year-long warranty, making it a reliable choice for various industries. From hotels, restaurants, retail shops, manufacturing plants, to advertising companies, this product caters for a wide range of businesses. With a weight of 0.5kg and no showroom location, this product is easy to handle and can be dispatched to your preferred location. Furthermore, the product's outgoing-inspection video and machinery test report are provided for customers' peace of mind. The product is a pin type and fits perfectly for tractors and tractor implements. It is a perfect replacement for PTO Adaptor & Spline Bushings for PTO Shaft.

Specifications of PTO Spline Bushings

Features of the Round Splined Hubs

The Round Splined Hubs - DIN ISO 14 made of Steel C45 stand out due to their unique features. These are:

1. Certification: The product is certified with CE, ISO, and TS, ensuring its quality and reliability.
2. Usage: It serves as a transmission part in tractors and tractor implements.
3. Customizability: The length and diameter of the tube can be customized according to the customers' specifications, between 30-100mm and 40-50mm respectively.
4. Design: It features 1 3/8 Z6 teeth and is designed for a 32*55*86 shaft.
5. OEM Support: The product supports OEM, making it suitable for a broad range of applications.

Our Round Splined Hubs are a perfect replacement for damaged parts on PTO Adaptor & Spline Bushings for PTO Shaft. Our production process ensures high-quality products that meet the needs and standards of our diverse clientele.

Applications of Round Splined Hubs

Tractor PTO shaft adapters and spline bushings are widely used in various agricultural applications to connect tractors with implements and equipment. Here are some specific agricultural applications where these components are commonly utilized:

1. PTO-driven Implements: Agricultural implements such as rotary mowers, hay balers, hay rakes, sprayers, fertilizer spreaders, and seeders often require a PTO connection to receive power from the tractor. PTO shaft adapters and spline bushings ensure compatibility between the tractor's PTO shaft and the implement's input shaft, allowing efficient power transfer.
2. Tillage and Cultivation: Implements used for tillage and cultivation, such as plows, harrows, cultivators, and seed drills, require a reliable PTO connection. PTO shaft adapters and spline bushings enable tractors to connect with these implements, ensuring proper power transmission for soil preparation, seed placement, and crop establishment.
3. Crop Harvesting: Harvesting equipment like combine harvesters, forage harvesters, and cotton pickers often rely on a PTO connection to the tractor for power. PTO shaft adapters and spline bushings facilitate the connection between the harvesting equipment and the tractor, enabling efficient and precise crop harvesting.
4. Material Handling: Various material handling tasks in agriculture, including bale handling, forklift operations, and grain augers, require a PTO connection to the tractor. PTO shaft adapters and spline bushings allow tractors to power these material handling implements, making tasks such as lifting, moving, and transferring agricultural products more efficient.
5. Livestock Management: Equipment used in livestock management, such as feed mixers, feeders, and barn cleaners, often utilize a PTO connection. PTO shaft adapters and spline bushings enable tractors to power these implements, assisting in efficient feeding and manure management on farms.

How Does the Tractor PTO Shaft Adapter and Spline Bushing Work?

The tractor PTO (Power Take-Off) shaft adapter and spline bushing are crucial components that facilitate the connection between a tractor's PTO shaft and various implements. These parts are designed to adapt the size and spline configuration of the tractor's PTO shaft to match that of the implement's drive shaft. Here's an overview of how they work:

1. PTO Shaft Adapter: The PTO shaft adapter is used when the PTO shaft of the tractor and the input shaft of the implement have different sizes or spline (teeth) configurations. It essentially acts as a bridge between the two shafts, allowing them to connect securely despite their differences. Adapters come in various designs to match common sizes and spline configurations in agricultural machinery.
2. Spline Bushing: The spline bushing is used to modify the internal spline configuration of a shaft. It fits inside the implement's PTO shaft and adapts its internal spline pattern to match that of the tractor's PTO shaft. This is particularly useful when the implement's internal splines are worn or if the implement is designed for a different spline pattern.
3. Connecting the Adapter: The adapter is attached to the tractor's PTO shaft. One end of the adapter is designed to fit the tractor??s shaft size and spline configuration, while the other end matches the implement's shaft.
4. Using the Spline Bushing: If the internal splines of the implement's shaft are different or worn out, a spline bushing is inserted into the shaft. The bushing's external splines match the implement's internal splines, while its internal splines match the adapter or tractor's PTO shaft.
5. Engagement: Once the adapter and bushing are in place, the implement's shaft is aligned and connected to the adapter. This connection allows the tractor's PTO to effectively transmit power to the implement, regardless of differing original sizes or spline configurations.
6. Power Transmission: With the adapter and bushing properly installed and secured, the PTO shaft can safely transmit power from the tractor to the implement, ensuring efficient operation.

Choose the Right PTO Shaft Adapter and Spline Bushing for Your Tractor

Choosing the right PTO shaft adapter and spline bushing for your tractor involves considering several factors to ensure compatibility and safe operation. Here are some steps to help you make the right choice:

1. Determine the PTO Shaft Size: Measure the PTO shaft's diameter and count the number of splines. Common PTO shaft sizes include 1 3/8 inches with 6 splines or 1 3/4 inches with 20 splines. It's essential to know the specific dimensions of your tractor's PTO shaft to ensure compatibility with the adapter.
2. Identify the Implement's Input Shaft: Examine the input shaft of the implement you intend to connect to the tractor. Measure the diameter and count the number of splines on the implement's input shaft. Make sure to note any variations in spline sizes or configurations.
3. Determine Compatibility: Compare the measurements of the PTO shaft and the implement's input shaft to the specifications provided by the manufacturer or the supplier of the PTO shaft adapter and spline bushing. Ensure that the adapter and bushing you choose can accommodate both the PTO shaft and the implement's input shaft.
4. Consider the Bushing Requirements: If the splines on the PTO shaft adapter and the implement's input shaft do not match, you will need a spline bushing. Determine the size and type of spline bushing required based on the differences between the splines. Take note of the inner diameter and the outer diameter of the bushing, as well as the spline count and configuration.

Maintenance and Lubrication of the PTO Shaft Adapter and Spline Bushing

Proper maintenance and lubrication of your tractor's PTO shaft adapter and spline bushing are essential to ensure smooth operation and extend their lifespan. Here are some tips to help you maintain and lubricate these components:

1. Regular Inspection: Inspect the PTO shaft adapter and spline bushing for any signs of wear, damage, or misalignment. Look for cracks, excessive play, or worn-out splines. If you notice any issues, it's important to address them promptly by repairing or replacing the damaged parts.
2. Cleanliness: Keep the PTO shaft adapter and spline bushing clean to prevent the accumulation of dirt, debris, and contaminants. Regularly remove any buildup of dirt or grease using a brush or compressed air. This will help maintain proper functioning and prevent premature wear.
3. Lubrication: Proper lubrication is crucial to reduce friction and ensure smooth operation of the PTO shaft adapter and spline bushing. Apply the grease to the splined surfaces of the PTO shaft adapter and spline bushing. Ensure that the grease is distributed evenly and covers all the splines.
4. Storage: If you store your tractor or detach the implement for an extended period, it's important to properly clean and lubricate the PTO shaft adapter and spline bushing before storage. This will help prevent rust and corrosion during the idle period.

Why Choose AGKNX's PTO Shaft Adapter and Spline Bushing?

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, is a leading manufacturer of top-quality PTO shafts, agricultural gearboxes, industrial cardan shafts, PTO shaft tubes, PTO shaft yokes, PTO shaft universal joints, PTO shaft torque limiters, car driveshafts, and u-joint coupling shafts. With over 100 staff members, our company covers more than 12,000 m2 and has an annual turnover of 60 million RMB, 9 Million Dollars. Our products have gained a great reputation from European, American, Asia, Australian, and North American customers. We are a top professional OEM supplier for many agricultural implement factories in the domestic market.

AGKNX Driveshaft is committed to delivering quality first, quickly, and at competitive prices. We have the CE, TS/16949, and ISO9001 certificates, indicating our products' high-quality standards. Our systematic manufacturing equipment and QC team guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. AGKNX exports its products to valued customers in over 50 countries across five continents. As a company working towards becoming a global leader in our field, AGKNX is proud to offer best-in-class brands in its product range.
