S2 Series PTO Shaft-Replacement of Bondioli & Pavesi S2 Series PTO Drive Shaft

The S2 Series PTO shaft replacement of the Bondioli & Pavesi S2 Series PTO drive shaft is a high-performance component designed specifically for agricultural machinery, ensuring efficient and reliable power transmission between a tractor and its implement. The S2 Series is built to handle medium to high torque applications, making it ideal for equipment like mowers, balers, tillers, and other PTO-driven attachments. It features telescopic tubing that accommodates variable lengths, allowing for flexibility during operation. The yokes and cross kits are manufactured from high-strength materials, ensuring resistance to wear and vibration.

The S2 Series PTO shaft replacement of the Bondioli & Pavesi S2 Series PTO drive shaft is a high-performance component designed specifically for agricultural machinery, ensuring efficient and reliable power transmission between a tractor and its implement. The S2 Series is built to handle medium to high torque applications, making it ideal for equipment like mowers, balers, tillers, and other PTO-driven attachments. It features telescopic tubing that accommodates variable lengths, allowing for flexibility during operation. The yokes and cross kits are manufactured from high-strength materials, ensuring resistance to wear and vibration. Additionally, the shaft incorporates safety features such as a shield or guard to protect operators from rotating components.

Available in various configurations, the S2 Series PTO shaft can be paired with multiple tractor and implement combinations. Its robust construction and user-friendly design make it a trusted choice for farmers seeking reliable, long-lasting PTO drive solutions.

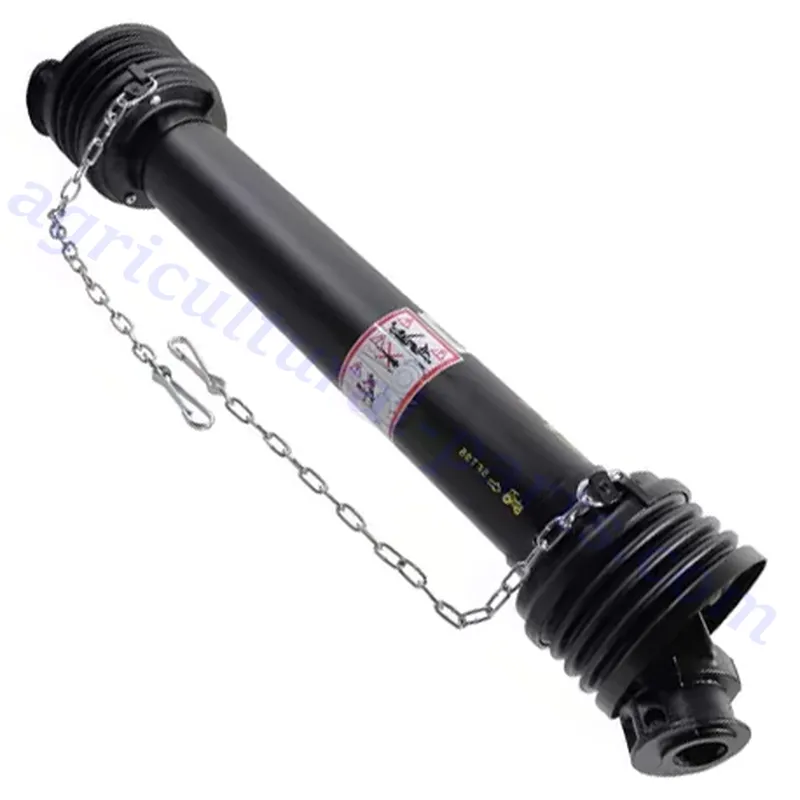

Bondioli & Pavesi S2 Series PTO Drive Shaft

Note: Our products are replacement parts and not original equipment. We provide perfect replacement products for original equipment. If you need to purchase the original equipment, please contact the original supplier.

Products Specifications

Model
PTO Drive Shafts – SFT, series S2
Details
  • Square profile tube for maximum torsional stiffness
  • Torque is evenly distributed over the wide contact surfaces
  • Extended lubrication intervals of up to 50 hours
Application range
  • Small crop sprayers
  • Small wood splitters
  • Tedders
  • Hay rakes
  • Chemical fertiliser spreaders
Properties
CE marking available
Technical info
  • Refer to the Bondioli & Pavesi instruction manual
  • Values at working angle 5° and service life 1000 hours
Benefits
  • Low slide resistance
  • Low wear
  • Longer service life
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Consists of
  • Pto shaft with guard tube
  • Declaration of conformity
  • Instruction manual
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Size code
S2
Length
860 mm
Power 540 rpm
21 kW
Power 1000 rpm
31 kW
Cross joint bush diameter by tractor side
23,8 mm
Cross joint length by tractor side
61,3 mm
Cross joint bush diameter by machine side
23,8 mm
Cross joint length by machine side
61,3 mm

Replacement of Bondioli & Pavesi S2 Series PTO Drive Shaft Parts

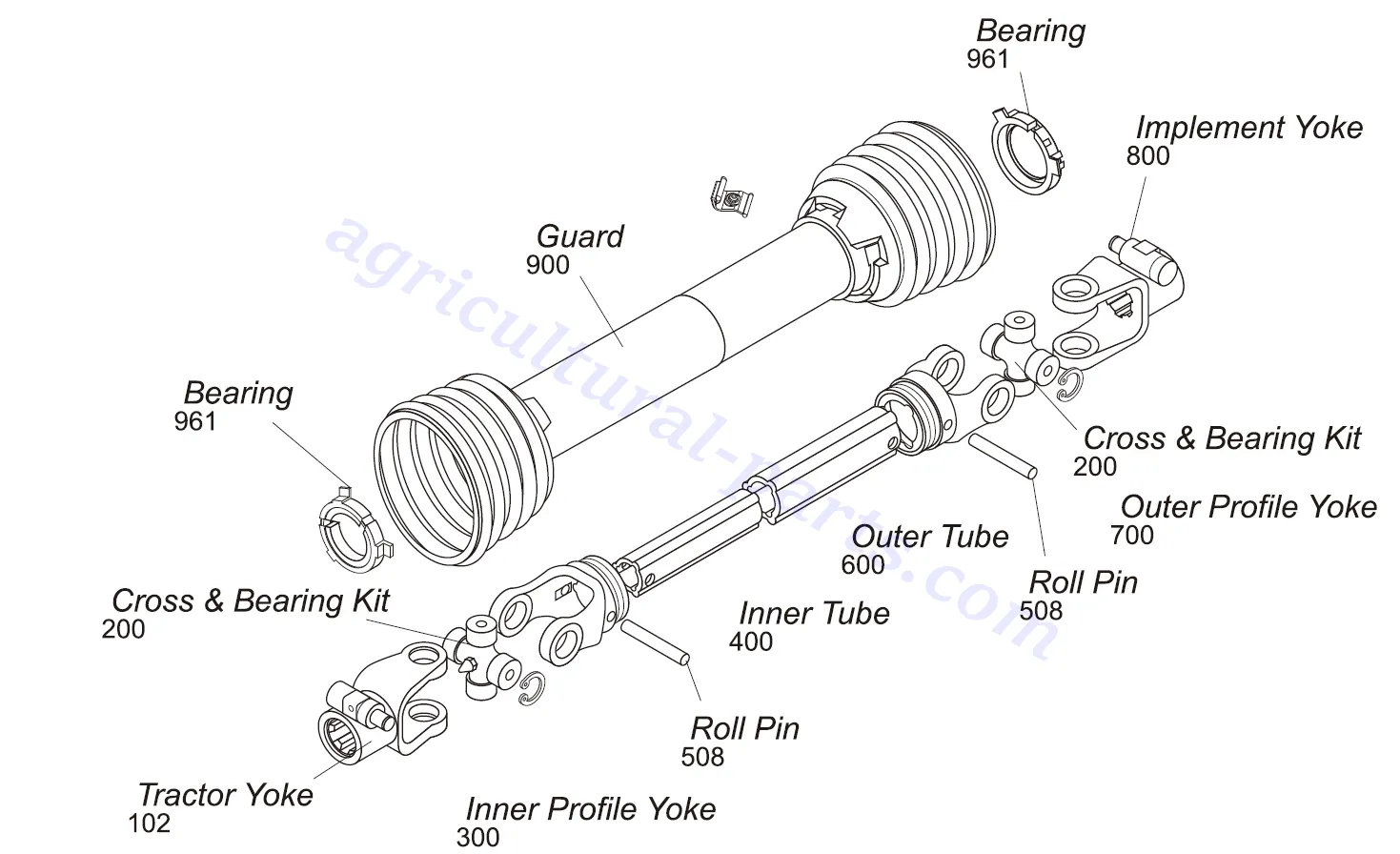

Bondioli & Pavesi S2 Series PTO Drive Shaft Parts

Tractor Yoke

Dim. “A”Dim. “B”
mm
in.
Safety Slide Lock Yoke Safety Slide Lock1 3/8” x 6 Spl.106.04.17”
1 3/8” x 21 Spl.106.04.17”
Quick Disconnect YokeQuick Disconnect Yoke1 1/8” x 6 Spl.94.03.70”
1 3/8” x 6 Spl.98.03.86”
1 3/8” x 21 Spl.98.03.86”

PTO Shaft Cross and Bearing Kit

Dim. “A”
mm
in.Dim. “B”
mm
in.
Cross and Bearing Kit23.8.94”61.22.41”

Inner Profile Yoke

Dim. “A”
mm
in.Dim. “B”
mm
in.
Inner Profile YokeWith Bearing Groove29.81.17”75.02.95”

Outer Profile Yoke

Dim. “A”
mm
in.Dim. “B”
mm
in.
Outer Profile YokeWith Bearing Groove36.81.45”75.02.95”

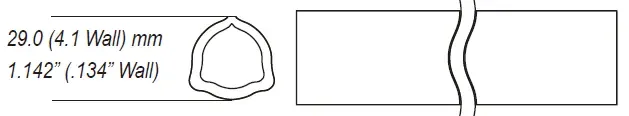

PTO Shaft Inner Tube

Length
mm
in.
S2 Series PTO Shaft Inner Tube1.559.06”
1.039.37”

PTO Shaft Roll Pin

Dim. “A”
Dim. “B”
Roll Pinmmin.mmin.
8.0.31”602.36”

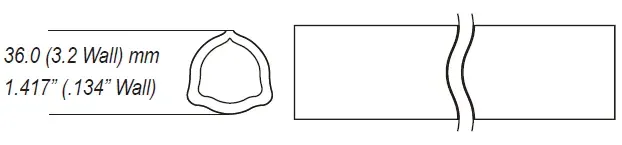

PTO Shaft Outer Tube

Length
mm
in.
S2 Series PTO Shaft Outer Tube1.559.06”
1.039.37”

 Implement Yoke

Dim. “A”Dim. “B”Standard Keyway
mmin.mmin.mmin.
Round Bore YokeRound Bore
With Keyway & Set Screw
25.0.98”80.03.15”8.0.31”
25.01.0”80.03.15”6.35.25”
28.61.13”80.03.15”6.35.25”
30.01.18”80.03.15”8.0.31”
31.81.25”80.03.15”6.35.25”
31.81.25”80.03.15”8.0.31”
34.91.38”80.03.15”8.0.31”
Dim. “A”Dim. “B”
Pinhole
mmin.mmin.mmin.
Shear Pin YokeShear Pin
With PinHole
31.81.25”80.03.15”6.35.25”
34.91.38”92.03.62”12.9.50”

Drivelines

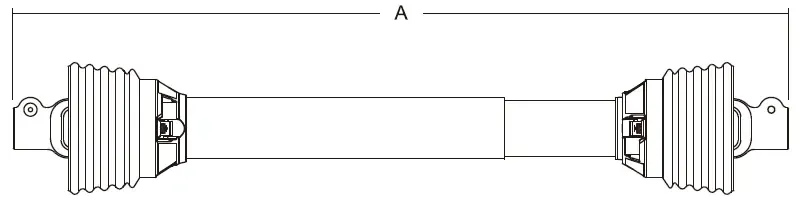

S2 Series PTO Shaft Drivelines

Overall Comp.
Length Dim. “A”
Max. Running
Length
Tractor YokeImplement Yoke
47”70”1 3/8” x 6 Spl. QD1 3/8” x 6 Spl. QD
51”76”1 3/8” x 6 Spl. QD1 3/8” Rd w/Pinhole
52”79”1 3/8” x 6 Spl. QD1 1/4” Rd w/Pinhole
48”70”1 3/8” x 6 Spl. QD*
60”89”1 3/8” x 6 Spl. QD*
33”58”1 3/8” x 6 Spl. QD1 3/8” x 6 Spl. w/Friction Clutch
52”77”1 3/8” x 6 Spl. QD1 3/8” x 6 Spl. w/Radial Pin Clutch
31”41”1 3/8” x 6 Spl. Safety Side Lock1” Rd. w/1/4” Key Ball Shear

Applications of S2 Series PTO Drive Shafts

The replacement of Bondioli & Pavesi S2 Series PTO drive shafts are versatile components that find various applications in agricultural machinery, enhancing the performance and efficiency of farming operations. Here are some common applications of the S2 Series PTO drive shafts in agriculture:

  1. Small Crop Sprayers: The S2 Series PTO drive shafts are essential for powering small crop sprayers, ensuring precise and consistent spraying of pesticides, herbicides, or fertilizers. Their efficient torque transfer allows the sprayer pump to operate smoothly, providing reliable performance in diverse field conditions while reducing power loss and operational downtime.
  2. Small Wood Splitters: For small wood splitters, the S2 Series PTO shafts delivers the necessary power to split logs efficiently. Its robust design ensures the transmission of adequate torque to the splitter’s hydraulic system or mechanical components, enabling quick and effective splitting of firewood, even in demanding tasks with varying log sizes.
  3. Tedders: When used with tedders, the S2 Series PTO drive shaft ensures optimal rotation and movement of the tedding arms to spread and aerate hay evenly. Its precise engineering minimizes vibration and energy loss, improving machine efficiency and ensuring high-quality forage preparation in both small-scale and mid-size farming operations.
  4. Hay Rakes: The S2 Series PTO shaft is perfectly suited for hay rakes, providing smooth power transmission to move rake tines gently across the field. This ensures hay is collected into uniform windrows without damage, promoting faster drying and easier baling, while maintaining reliable operation under continuous use in harsh field conditions.
  5. Chemical Fertilizer Spreaders: In chemical fertilizer spreaders, the S2 Series PTO shafts power the spreading mechanism, ensuring consistent and uniform distribution of fertilizers across fields. Its durable construction and high torque capacity enable the spreader to handle various terrain types effectively, enhancing productivity and reducing waste during fertilizer application.

S2 Series PTO Drive Shaft Applications

How to Choose the Right Tractor PTO Shaft for Orchard Sprayer?

Choosing the right tractor PTO shaft for an orchard sprayer is crucial to ensure efficient operation and optimal performance. Here are some key factors to consider when selecting a PTO shaft for an orchard sprayer:

  1. Determine the Required Torque Capacity: Start by identifying the torque demands of your orchard sprayer. The PTO shaft must handle the equipment's power requirements without exceeding safe limits. Selecting a shaft with the proper torque rating prevents excessive wear, ensures efficient power transfer, and avoids mechanical failures during operation.
  2. Measure the Length of the PTO Shaft: Accurately measure the distance between your tractor’s PTO and the sprayer’s input shaft. The PTO shaft should have enough telescopic range to accommodate both close coupling and full extension during use. Improper length can lead to binding, excessive strain, or shaft disengagement.
  3. Choose the Correct PTO Shaft Series: Match your orchard sprayer’s power needs with the appropriate PTO shaft series. For instance, a medium-duty sprayer may require an S2 series shaft, while heavier-duty equipment may need a higher-rated series. Ensure compatibility with the horsepower output of your tractor.
  4. Verify the Connection Type: Check the type of yoke or coupling required for both the tractor and the sprayer. Ensure the PTO shaft you choose has compatible end fittings, such as standard spline profiles or quick-release mechanisms, to ensure secure and efficient attachment during operation.
  5. Inspect Safety Features: Prioritize PTO shafts with robust safety features, such as protective guards or shielding, to prevent accidents caused by rotating components. Safety is critical when working with orchard sprayers, as operators often work in close proximity to the equipment during spraying operations.
  6. Consider Build Quality and Durability: Select a PTO shaft made from high-quality materials to withstand orchard conditions, such as exposure to chemicals, dirt, and moisture. Look for corrosion-resistant components and well-sealed bearings to ensure long-term reliability and minimize maintenance needs during extended use.

S2 Series PTO Drive Shaft Applications

Why Choose AGKNX's Agricultural PTO Shaft?

AGKNX specializes in developing, manufacturing, and marketing PTO shafts, industrial cardan shafts, car driveshafts, u-joint coupling shafts, universal joints, and more. With an impressive annual turnover of 60 million RMB, or approximately 9 million dollars, our growth continues year by year. Our products have gained a stellar reputation among customers in Europe, America, Asia, Australia, and North America. We are proud to be among the top 3 professional OEM suppliers for numerous agricultural implement factories in the domestic market. Our commitment to quality is underscored by our CE, TS/16949, and ISO9001 certifications, coupled with a systematic manufacturing process and a dedicated QC team ensuring both quality and timely delivery. We warmly welcome every friend to visit us and establish mutually beneficial long-term cooperative relationships.

When it comes to choosing the right Agricultural PTO Shaft, AGKNX stands out for several compelling reasons:

  1. Safety Shield Types and Colors Based on Your Requirements: We offer a variety of safety shield types and colors to meet your specific needs. Whether you require shields for agricultural or industrial applications, we can customize designs to ensure durability and compliance with safety standards, providing optimal protection.
  2. Wide Range of Universal Joints: Our product range includes a comprehensive selection of universal joints for various applications. Designed to ensure reliability and performance, our universal joints are compatible with multiple machines and equipment, delivering smooth operation and reduced wear over time.
  3. Large Inventory for Fast Delivery: We maintain a substantial inventory of products, allowing us to provide quick and efficient delivery to meet your deadlines. Our streamlined logistics and stock management systems ensure that you receive the products you need without unnecessary delays.
  4. Variety of Abrasives, Tools, and Parts: In addition to shafts and joints, we supply a wide range of abrasives, tools, and components to support your agricultural and industrial operations. Our diverse selection guarantees that you have access to the parts necessary for efficient and seamless workflows.
  5. Customization and OEM Support: We specialize in providing highly customized solutions and OEM services tailored to your specific requirements. Whether you need unique designs, branding, or specialized manufacturing, our team works closely with you to deliver products that match your exact specifications.

At AGKNX, we pride ourselves on our commitment to quality, customer satisfaction, and fostering long-term partnerships. Our dedicated team is always available to assist you with your needs, ensuring that you receive the best products and services in the industry. We invite our customers to bring in their designs and samples for custom orders to better meet their operational requirements. Choose AGKNX for your Agricultural PTO Shaft needs and experience the difference in quality, service, and value.
