SF Type QD Bushings
SF Type QD (Quick Detachable) Bushings are precision-machined, tapered components designed to mount sprockets, pulleys, or sheaves onto shafts securely. Made typically from steel or cast iron, they feature a split flange and a gradual taper for a tight press fit when cap screws are tightened. This design allows easy installation and removal without lubricants, using bolts as jackscrews for disassembly. SF bushings accommodate various bore sizes, including metric and inch measurements, ensuring compatibility with multiple shaft diameters. Their robust construction ensures reliable torque transmission in power transmission systems.
SF Type QD (Quick Detachable) Bushings are precision-machined, tapered components designed to mount sprockets, pulleys, or sheaves onto shafts securely. Made typically from steel or cast iron, they feature a split flange and a gradual taper for a tight press fit when cap screws are tightened. This design allows easy installation and removal without lubricants, using bolts as jackscrews for disassembly. SF bushings accommodate various bore sizes, including metric and inch measurements, ensuring compatibility with multiple shaft diameters. Their robust construction ensures reliable torque transmission in power transmission systems.
SF Type QD Bushing Dimensions
![]() | ![]() |
QD Bushing Type: | SF | |
Dimensions(in): | A | 9/16 |
B | 3.125 | |
D | 4-5/8 | |
E | 1-1/2 | |
F | 1-1/4 | |
G | 1/4 | |
L | 2-1/16 | |
Bolt Circle (in): | 3-7/8 | |
Stock Bore Range(in): | Min. | 1/2 |
Max. | Standard Keyway 2-1/4 Shallow Keyway 2-15/16 No Keyway - | |
Cap Screws Included: | No. | 3 |
Thread | 3/8-16 | |
Length (in) | 2 | |
Set Screw Size: | 5/16 | |
Wrench-Torque (in-Ibs): | 360 | |
Approx.Weight (Ibs): | 3.0 |

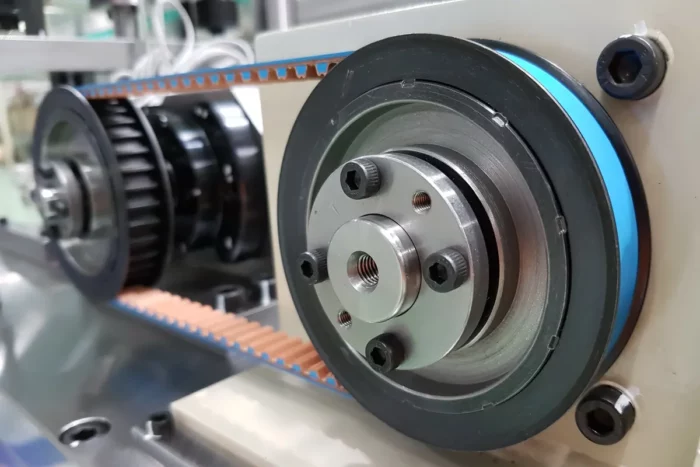

Common Applications of SF Type QD Bushings
SF Type QD bushings are widely used in mechanical power transmission systems due to their ease of installation, secure fit, and versatility. Below are common applications:
(1) Conveyor Systems: SF Type QD bushings are used in conveyor systems to mount sprockets or pulleys securely onto shafts, ensuring reliable power transfer. Their quick-detach design simplifies maintenance, allowing fast replacements in high-throughput environments like warehouses or manufacturing plants.
(2) Industrial Fans and Blowers: In industrial fans and blowers, SF QD bushings connect pulleys to motor shafts, enabling efficient torque transmission. Their precision fit reduces vibration, and the detachable design facilitates easy adjustments or repairs in HVAC or processing systems.
(3) Pumps and Compressors: SF QD bushings are employed in pumps and compressors to attach pulleys or couplings to drive shafts. Their tight grip ensures consistent performance, while the quick-release feature simplifies maintenance in water treatment or air compression systems.
(4) Agricultural Machinery: In agricultural equipment like harvesters or tillers, SF QD bushings secure sprockets or pulleys to shafts. Their robust design withstands harsh conditions, and the detachable feature allows quick part swaps during fieldwork, minimizing downtime.
(5) Material Handling Equipment: SF QD bushings are used in material handling systems, such as forklifts or cranes, to mount drive components. Their secure clamping and easy removal support reliable operation and fast maintenance in logistics or construction settings.
![]() | ![]() |
![]() | ![]() |
QD Bushings vs. Split Taper Bushings
QD (Quick Detachable) bushings and Split Taper bushings are both used to mount components like pulleys or sprockets onto shafts, but they differ in design and application.
QD bushings have a flange on the outside diameter and a split through both the flange and the tapered barrel. This design allows for easy installation and removal by tightening or loosening cap screws, which pull the bushing into the component hub for a secure fit. The split flange enhances clamping force, making QD bushings ideal for applications requiring frequent component changes or maintenance. They’re versatile, often used in V-belt drives, synchronous belt drives, and roller chain systems, and come in sizes like SD, SK, J, or JA.
Split Taper bushings also feature a split barrel, but they typically have two splits in the barrel and no split in the flange (if present). They’re keyed both to the shaft and the component for added stability, providing strong holding power even if fasteners loosen. The taper is gradual, ensuring a tight grip on the shaft, and they’re often used in high-torque applications like conveyors or heavy machinery. Common series include H, P1, or Q1, and they’re known for precise alignment and durability.
Key differences:
- Installation/removal: QD bushings are faster to mount or remove due to the split flange and cap screw system. Split Taper bushings require more effort but offer robust holding.
- Clamping: Split Taper bushings provide superior stability for high-torque or heavy loads, while QD bushings prioritize ease and versatility.
- Design: QD bushings have a flanged, single-split design; Split Taper bushings have a double-split barrel and often no split flange.
Choose QD for applications needing quick swaps and moderate loads, like in maintenance-heavy setups. Opt for Split Taper in demanding environments where stability and torque are critical, such as industrial conveyors.
![]() | ![]() |
