Side Shift Hydraulic Cylinder for Large Tonnage Forklift

A large tonnage forklift side shift hydraulic cylinder is a specialized hydraulic component designed for forklifts that handle heavy loads, typically in industrial settings such as ports, warehouses, and construction sites. This hydraulic cylinder is integral to the side-shifting function of the forklift's fork carriage, allowing the operator to move the tines (forks) laterally, either left or right, without repositioning the entire forklift. This movement enhances precision and efficiency when aligning heavy loads for placement or retrieval, particularly in tight spaces.

The cylinder operates by using pressurized hydraulic fluid to extend or retract its piston, which in turn shifts the fork carriage horizontally along a fixed rail or guide. It is built to withstand the extreme forces and stresses associated with handling large loads, often ranging from several tons to tens of tons. Constructed from high-strength materials like hardened steel, the cylinder is designed for durability, reliability, and resistance to wear. It is also equipped with seals to prevent hydraulic fluid leakage and ensure smooth operation under high pressure.

Side Shift Hydraulic Cylinder Specifications

Function of Side Shift Hydraulic Cylinder for Large Tonnage Forklift

The side shift hydraulic cylinder for a large tonnage forklift plays a critical role in enhancing the operational precision, efficiency, and flexibility of the forklift when handling heavy loads. Its primary function is to enable the lateral movement (side-to-side shifting) of the forklift's fork carriage, allowing the operator to adjust the position of the forks without moving the entire forklift. This functionality is especially valuable in environments where space is limited, and precise alignment is required, such as warehouses, docks, and industrial sites handling substantial loads.

The side shift hydraulic cylinder operates by utilizing hydraulic pressure to extend or retract its piston rod. When hydraulic fluid is directed into the cylinder, the piston moves horizontally, transferring this motion to the fork carriage. This movement allows the forks to shift left or right along a guide rail or frame, depending on the operator's input. The result is precise positioning of the forks, which is essential for picking up or placing heavy loads accurately, reducing the need for repeated adjustments and saving time.

In large tonnage forklifts, the side shift hydraulic cylinder is engineered to handle extreme pressures and forces because the loads being moved often weigh several tons or more. It is constructed from robust materials such as hardened alloy steel to provide durability, withstand high operating pressures, and resist wear over time. Additionally, the cylinder is equipped with high-quality seals to prevent hydraulic fluid leakage and ensure smooth, consistent operation under heavy-duty conditions.

How to Replace a Damaged Side Shift Hydraulic Cylinder for Forklift

Replacing a damaged side shift hydraulic cylinder for a forklift is a task that requires careful attention to detail and safety precautions. Here is are general step on how to replace a damaged side shift hydraulic cylinder for a forklift:

1. Prepare the Forklift for Maintenance: Park the forklift on a flat, stable surface and ensure the forks are lowered completely to the ground. Turn off the engine and disconnect the battery to prevent accidental movements. Engage the parking brake for added safety during the replacement process.
2. Inspect and Disconnect Hydraulic Hoses: Identify the hydraulic hoses connected to the side shift cylinder. Use a wrench to carefully loosen and disconnect the hoses. Be prepared to catch any residual hydraulic fluid in a container to prevent spills. Clean the hose fittings to avoid contamination during reinstallation.
3. Remove the Mounting Pins or Bolts: Locate the mounting pins or bolts securing the side shift cylinder to the fork carriage. Use appropriate tools (like a wrench or pin punch) to carefully remove them. Keep the removed hardware in a safe place, as it may be reused for the new cylinder.
4. Detach the Damaged Cylinder: With the hydraulic hoses and mounting hardware removed, carefully slide or lift the damaged cylinder out of its mounting bracket. Ensure the area is clean and free of debris to facilitate the installation of the replacement cylinder.
5. Install the New Hydraulic Cylinder: Position the new hydraulic cylinder in the mounting bracket, aligning it with the holes for the mounting pins or bolts. Secure the cylinder using the original hardware or those provided with the replacement cylinder. Ensure everything is tightened properly.
6. Reconnect the Hydraulic Hoses: Attach the hydraulic hoses to the new cylinder, ensuring the connections are clean and secure. Tighten the fittings properly to prevent leaks. Double-check that the hoses are routed correctly and are not pinched or twisted.
7. Test the New Cylinder: Reconnect the battery and start the forklift. Operate the side shift function to test the new hydraulic cylinder. Check for smooth movement and inspect for any fluid leaks. Make adjustments or retighten connections as needed before resuming normal forklift operations.

Other Types of Forklift Hydraulic Cylinders

In addition to the side shift hydraulic cylinder, there are several other types of hydraulic cylinders commonly used in large tonnage forklifts to perform various functions and operations efficiently. Some of these include:

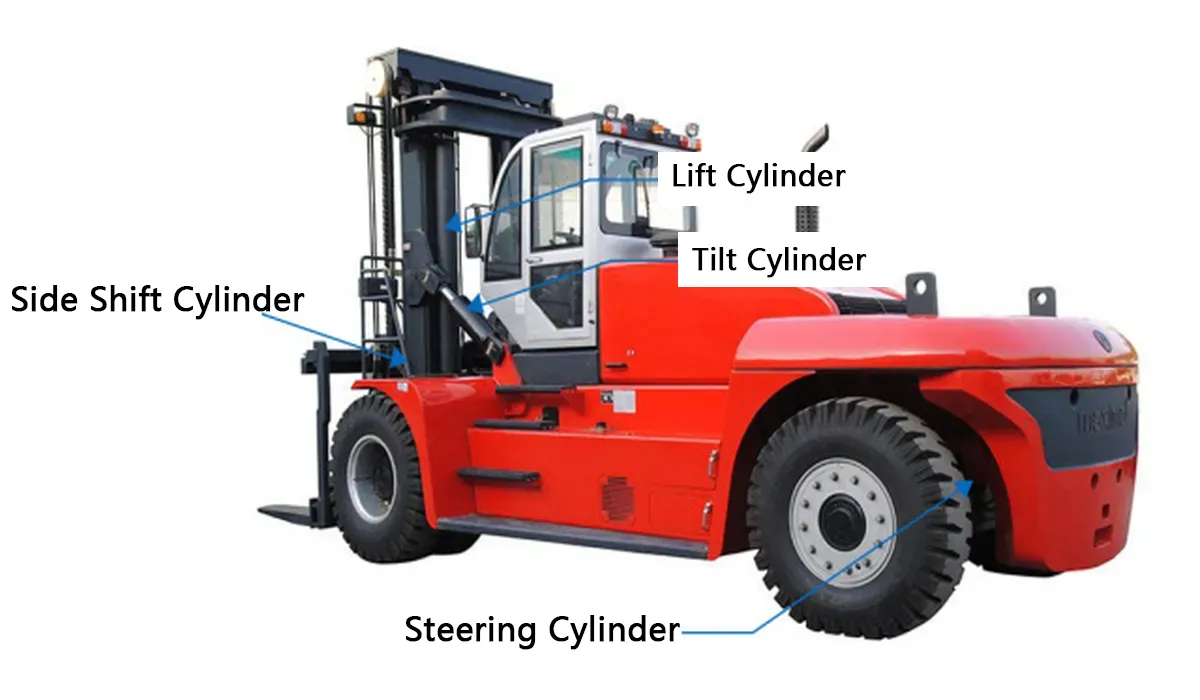

1. Tilt Hydraulic Cylinders: Tilt hydraulic cylinders are designed to control the forward and backward tilting motion of the forklift mast. These cylinders ensure that loads are securely adjusted to maintain balance and prevent spillage. Built to withstand heavy loads, they provide stability and precision, especially when handling oversized or fragile materials in industrial applications.

2. Lift Hydraulic Cylinders: Lift hydraulic cylinders are responsible for raising and lowering the forklift’s forks or lifting platform. They convert hydraulic pressure into vertical motion, enabling the forklift to lift heavy loads to significant heights. Engineered for durability and high load capacity, these cylinders are essential for operations in warehouses, construction sites, and loading docks.

3. Steering Hydraulic Cylinders: Steering hydraulic cylinders control the directional movement of the forklift’s wheels, enabling smooth and precise turns. They play a key role in maneuvering large tonnage forklifts in tight spaces or uneven terrains. These cylinders are designed to handle high pressure and provide reliable performance, ensuring safe and efficient forklift operation.
