Stainless Steel Short Pitch Conveyor Chain with Attachments

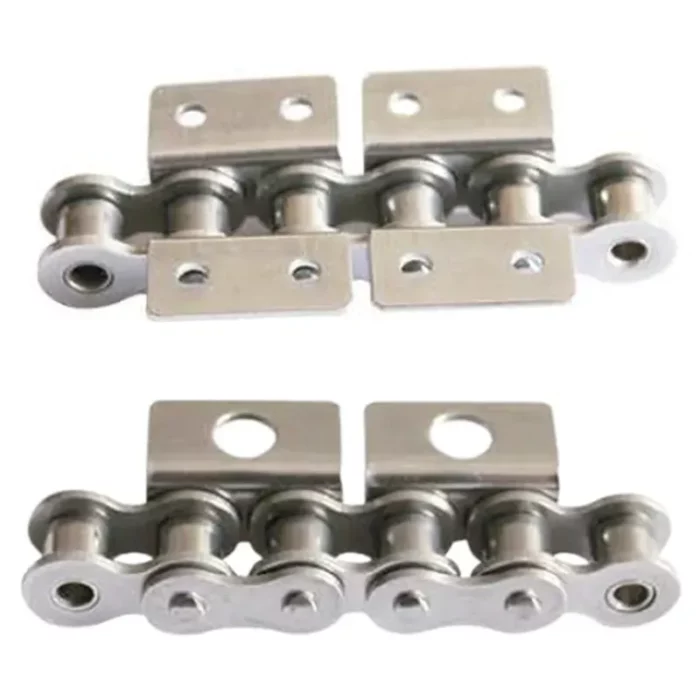

Stainless Steel Short Pitch Conveyor Chains with Attachments are specialized chains designed for industrial conveyor systems, providing durability, corrosion resistance, and efficient handling of materials. Made from high-grade stainless steel, they are ideal for harsh environments, including food processing, chemical, and pharmaceutical industries, where hygiene and resistance to moisture, chemicals, and extreme temperatures are critical. “Short pitch” refers to the smaller spacing between chain links, offering smoother operation and precise handling of loads. Attachments, such as extended pins, bent or straight plates, or custom fittings, are added to the links to secure specific items or accommodate unique applications, enhancing versatility and efficiency in material transport systems.

Stainless Steel Short Pitch Conveyor Chains with Attachments are specialized chains designed for industrial conveyor systems, providing durability, corrosion resistance, and efficient handling of materials. Made from high-grade stainless steel, they are ideal for harsh environments, including food processing, chemical, and pharmaceutical industries, where hygiene and resistance to moisture, chemicals, and extreme temperatures are critical. "Short pitch" refers to the smaller spacing between chain links, offering smoother operation and precise handling of loads. Attachments, such as extended pins, bent or straight plates, or custom fittings, are added to the links to secure specific items or accommodate unique applications, enhancing versatility and efficiency in material transport systems.

Stainless Steel Short Pitch Conveyor Chain with Attachments

Stainless Steel Short Pitch Conveyor Chain Dimensions

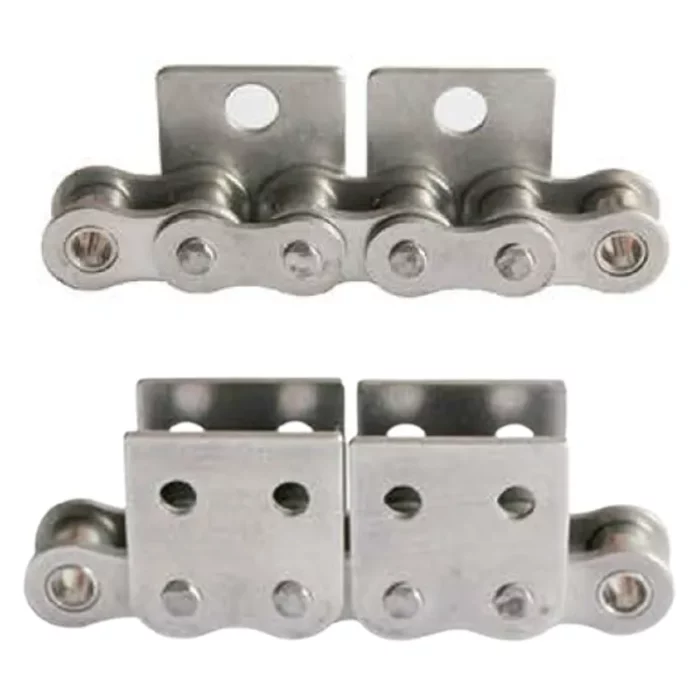

(1) Short Pitch Conveyor Chain with Attachment A1, K1

Stainless Steel Short Pitch Conveyor Chain Dimensions

DIN/ISO Chain No.ANSI Chain No.PGFWTh4d4
mmmmmmmmmmmmmm
06CSS35SS9.5257.91928.61.26.353.4
08ASS40SS12.79.525.435.21.57.93.4
085SS41SS12.79.52433.41.26.93.6
10ASS50SS15.87512.731.7546.2210.35.5
12ASS60SS19.0515.938.155.62.411.95.5
16ASS80SS25.419.150.864.8315.96.8
20ASS100SS31.7525.463.587.3419.89.2
24ASS120SS38.128.676.2108.54.8239.8
28ASS140SS44.4534.988.91235.628.611.4
32ASS160SS50.838.1101.6142.86.431.7513.1
40ASS200SS63.550.8127179842.8816.3
06BSS9.525819.04271.26.53.5
08BSS12.79.525.436.41.58.94.5
10BSS15.87514.331.7544.61.610.315.3
12BSS19.051638.152.41.813.466.4
16BSS25.419.150.872.6315.886.4
20BSS31.753563.5100.5419.89
24BSS38.13076.2108.44.826.6710.5
28BSS44.453588.9123628.5813.1
32BSS50.838.1101.6142.8631.7513.1

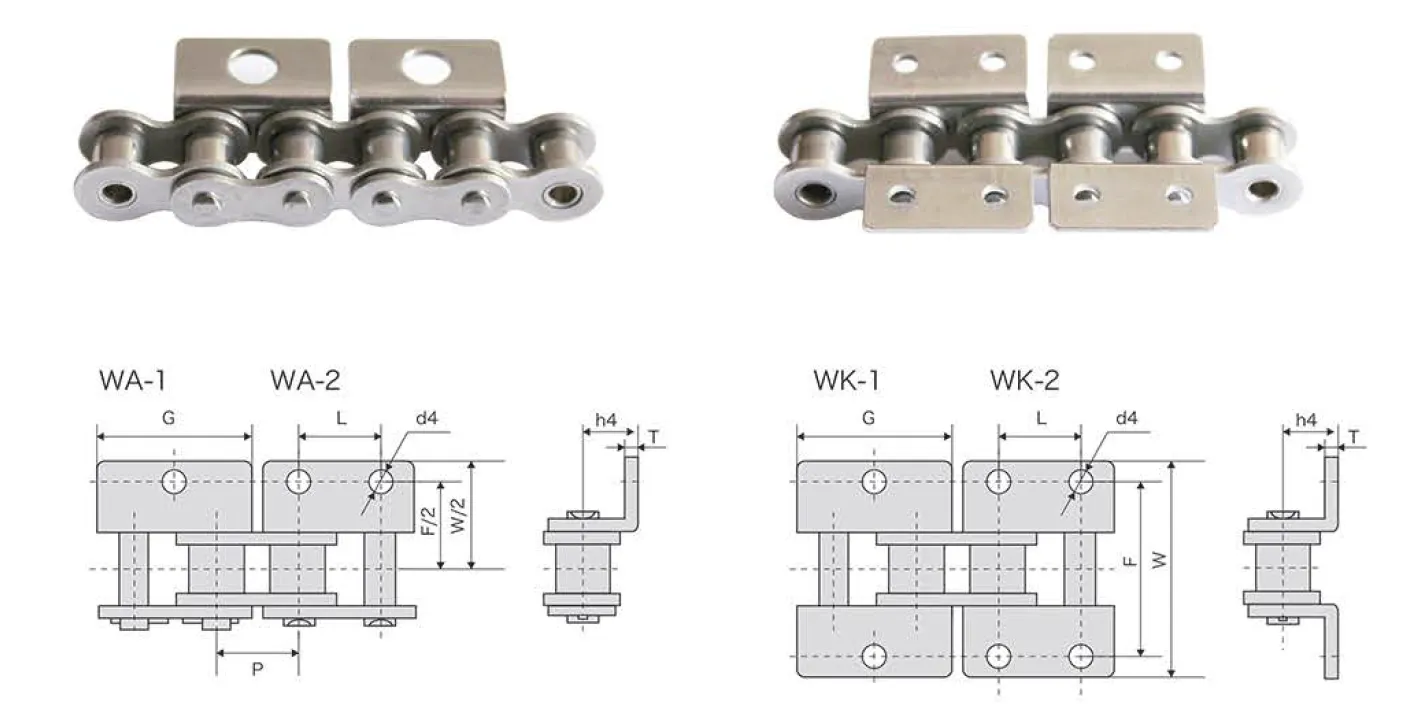

(2) Short Pitch Conveyor Chain with Attachment WA1, WA2, WK1, WK2

Stainless Steel Short Pitch Conveyor Chain Dimensions

DIN/ISO Chain No.ANSI Chain No.PGLFWTh4d4
mmmmmmmmmmmmmmmm
06CSS35SS9.52517.329.5251928.61.26.352.8
08ASS40SS12.72312.725.435.61.57.93.4
085SS41SS12.722.312.724351.27.24.85
10ASS50SS15.87528.815.87531.7546.8210.35.5
12ASS60SS19.0534.6519.0538.156.42.411.95.5
16ASS80SS25.445.925.450.873.2315.96.8
20ASS100SS31.7557.6531.7563.589.8419,809.2
24ASS120SS38.169.338.176.2108.84.8239.8
28ASS140SS44.4580.4544.4588.91235.628.611.4
32ASS160SS50.89250.8101.6142.86.431.7513.1
40ASS200SS63.5115.563.5127179842.8816.3
08BSS12.72412.725.436.41.58.94.3
10BSS15.87529.5815.87531,8044.61.610.315.3
12BSS19.0534.0519.0538.152.41.813.466.4
16BSS25.446.425.450.872.6315.886.4
20BSS31.7558.131.7563100.5419.89
24BSS38.171.338.176.2108.44.826.6710.5
28BSS44.4581.144.4588.9123628.5813.1
32BSS50.892.850.8101.6142.8631.7513.1

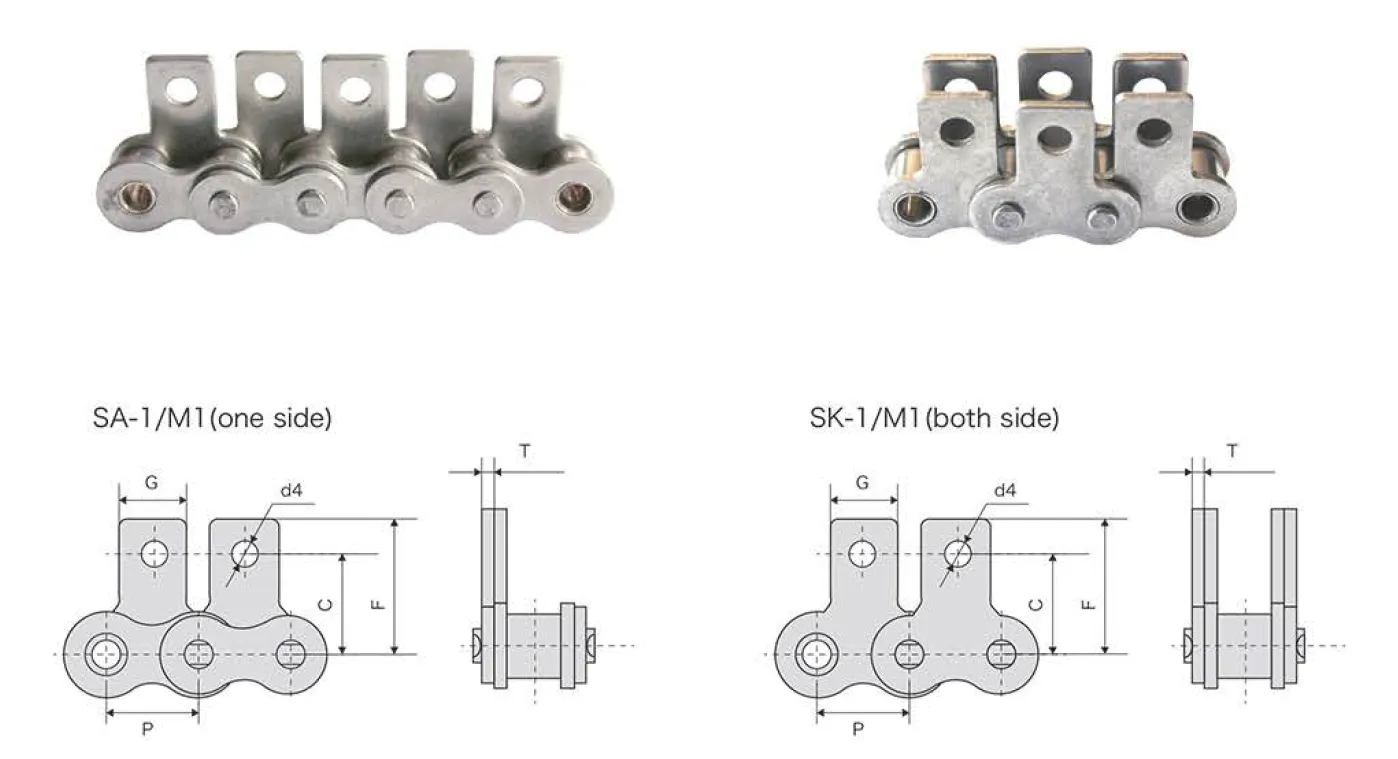

(3) Short Pitch Conveyor Chain with Attachment SA1, SK1

Stainless Steel Short Pitch Conveyor Chain Dimensions

DIN/ISO Chain No.ANSI Chain No.PGCFTd4
mmmmmmmmmmmm
06CSS35SS9.5257.99.514.551.23.4
08ASS40SS12.79.512.719.051.53.4
085SS41SS12.79.511.8516.551.23.6
10ASS50SS15.87512.715.925.2525.5
12ASS60SS19.0515.918.329.332.45.5
16ASS80SS25.419.124.634.736.8
20ASS100SS31.7525.431.843.349.2
24ASS120SS38.128.636.551.64.89.8
28ASS140SS44.4534.944.5625.611.4
32ASS160SS50.838.150.869.856.413.1
40ASS200SS63.550.863.588.9816.3
*06BSS9.52589.5213.51.23.5
08BSS12.79.513.3518.91.54.3
10BSS15.87514.316.522.951.65.3
12BSS19.051621.4528.61.86.4
16BSS25.419.123.153436.4
20BSS31.753530.545.749

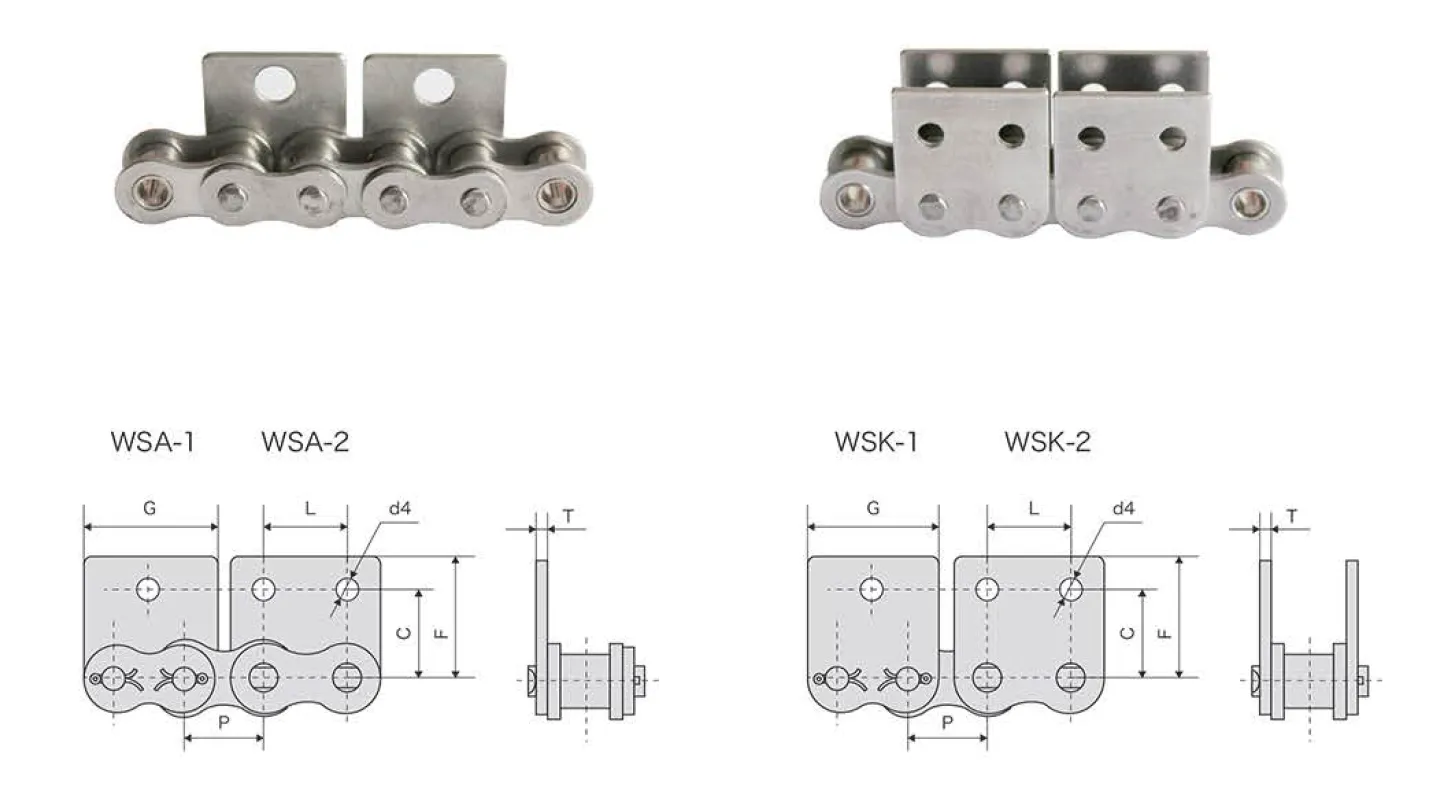

(4) Short Pitch Conveyor Chain with Attachment WSA1, WSA2, WSK1, WSK2

Stainless Steel Short Pitch Conveyor Chain Dimensions

DIN/ISO Chain No.ANSI Chain No.PGLCFTd4
mmmmmmmmmmmmmm
06CSS35SS9.52517.329.5259.514.551.22.8
08ASS40SS12.72312.712.717.41.53.4
085SS41SS12.721.212.711.8516.551.23.6
10ASS50SS15.87528.815.87515.923.0525.5
12ASS60SS19.0534.6519.0518.326.862.45.5
16ASS80SS25.445.925.424.635.4536.8
20ASS100SS31.7557.6531.7531.84449.2
24ASS120SS38.169.338.136.551.64.89.8
28ASS140SS44.4580.4544.4544.5625.611.4
32ASS160SS50.89250.850.869.856.413.1
40ASS200SS63.5115.563.563.588.9816.3
08BSS12.723.312.713.3518.91.54.3
10BSS15.87529.5815.87516.522.951.65.3
12BSS19.0534.0519.0521.4528.61.86.4
16BSS25.446.425.423.153436.4
20BSS31.7558.131.7530.545.749

Benefits of Stainless Steel Short Pitch Conveyor Chain with Attachments

  1. Corrosion Resistance: Stainless steel construction offers excellent resistance to rust, moisture, and chemicals, making these chains ideal for environments where exposure to water, acids, or other corrosive substances is common, such as food processing or chemical industries.
  2. Durability and Longevity: The robust material ensures long service life, even under continuous operation and heavy loads. Stainless steel resists wear, deformation, and fatigue, reducing maintenance costs and downtime compared to chains made of alternative materials.
  3. Smooth and Precise Operation: The short pitch design minimizes vibration and ensures smooth engagement with sprockets, enabling precise movement of materials. This feature is particularly beneficial in applications requiring accuracy, such as automated production lines.
  4. Hygienic and Easy to Clean: Stainless steel's non-porous surface is easy to clean and sanitize, meeting strict hygiene requirements. This makes these chains ideal for industries such as food processing, pharmaceuticals, and medical equipment manufacturing.
  5. Customizability with Attachments: With a wide range of attachment options, such as extended pins, bent plates, or custom designs, these chains can handle specific tasks like securing, lifting, or positioning items, increasing their versatility in diverse applications.
  6. Temperature and Environmental Resistance: Stainless steel chains perform reliably in extreme temperatures, whether in hot or freezing environments. Their ability to withstand such conditions makes them suitable for applications like industrial ovens, refrigerated systems, or outdoor operations.

Stainless Steel Short Pitch Conveyor Chain with Attachments

Applications of Stainless Steel Short Pitch Conveyor Chain with Attachments

Stainless steel short pitch conveyor chains with attachments are robust, corrosion-resistant, and versatile, making them ideal for various industrial applications. Here are some key applications:

  1. Food and Beverage Processing: These chains are widely used in food and beverage production lines for conveying products like baked goods, bottled drinks, and packaged foods. Their corrosion-resistant stainless steel construction ensures hygiene, durability, and compliance with strict sanitation standards, making them suitable for environments with frequent washdowns and exposure to moisture.

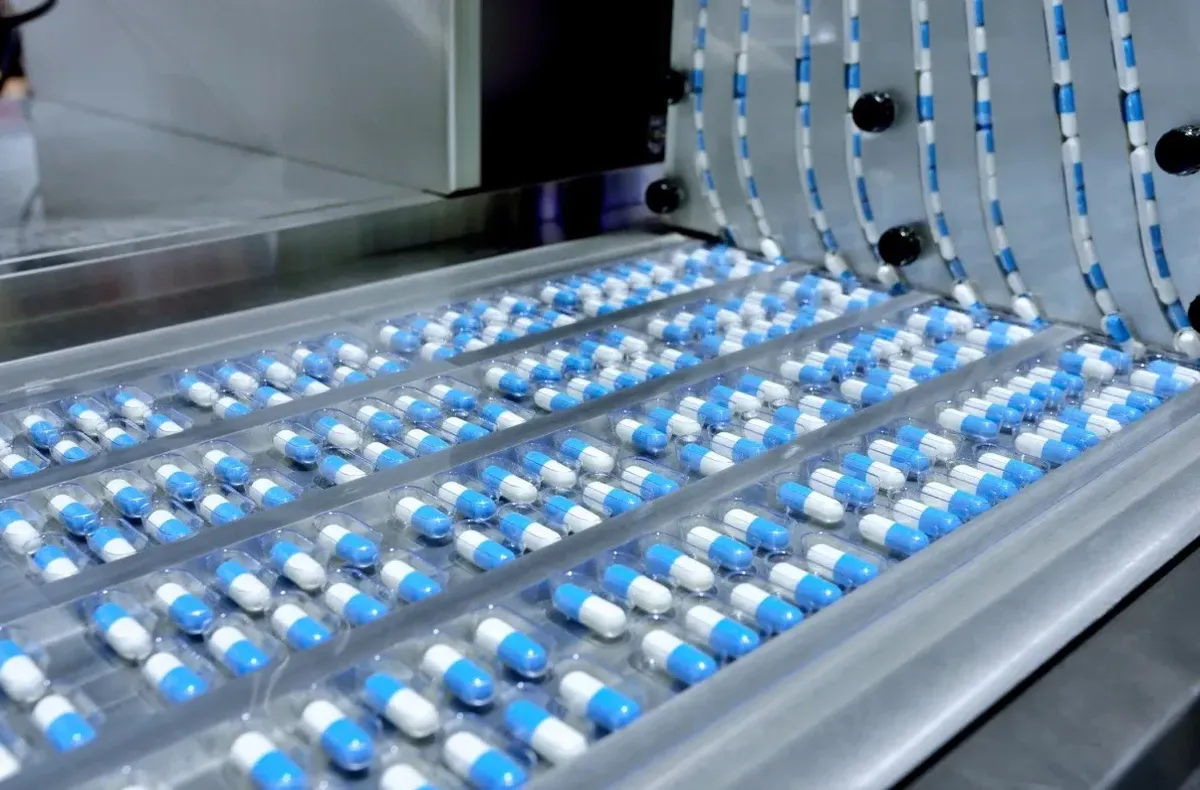

  2. Pharmaceutical Manufacturing: In pharmaceutical facilities, these stainless steel chains transport delicate components and packaged medicines along production lines. Their precision engineering ensures smooth, reliable movement, while the stainless steel material resists corrosion from cleaning agents and maintains cleanliness, meeting stringent regulatory requirements for sterile environments.

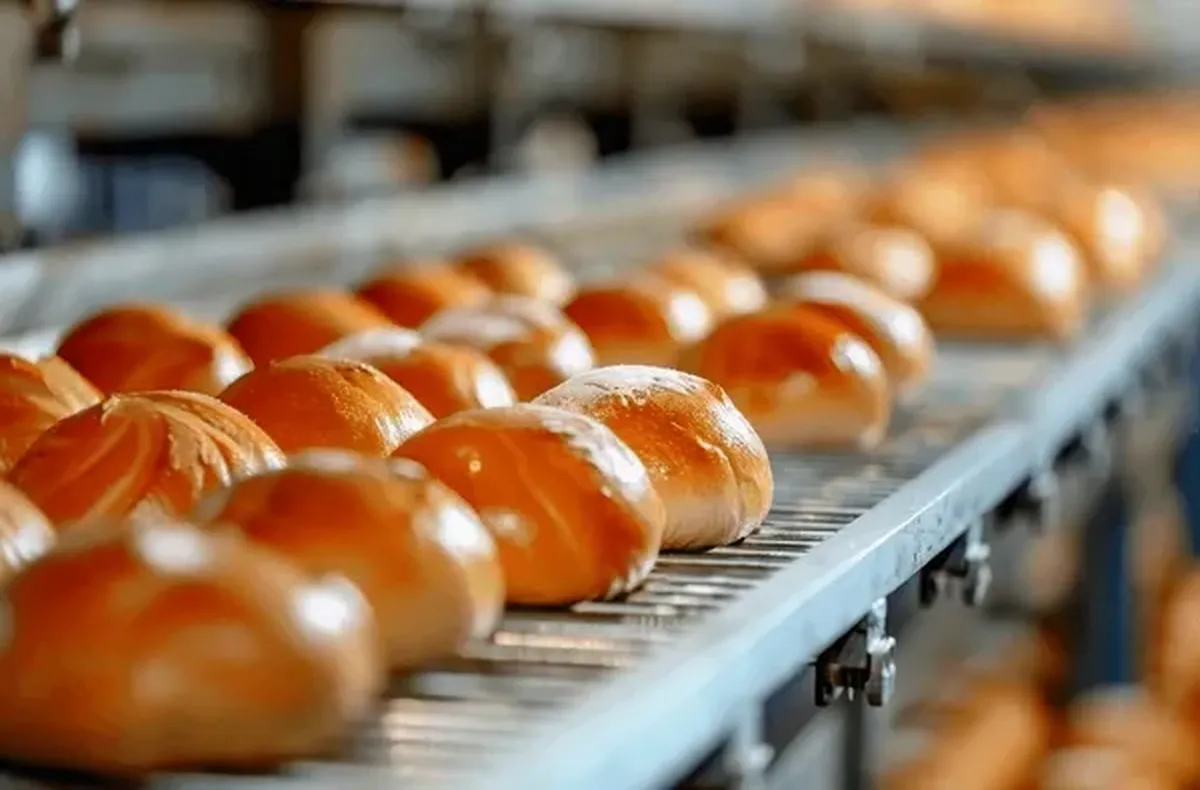

  3. Bakery Production Lines: These chains facilitate dough mixing, oven loading, cooling, and packaging in bakeries. Their hygienic stainless steel surface prevents contamination, while precision design ensures gentle handling, minimizing product damage and maintaining high throughput in fast-paced production.

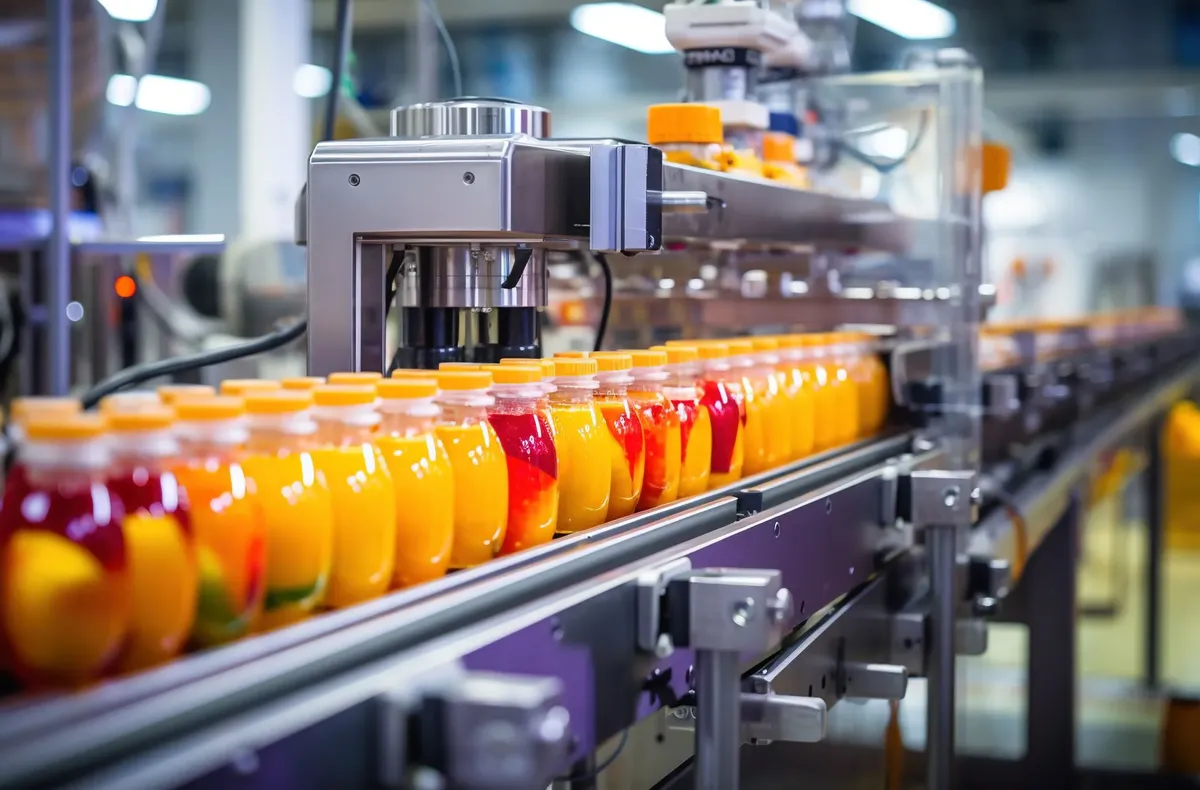

  4. Beverage Bottling Systems: Used in bottling plants, these stainless steel chains transport bottles through filling, capping, and packaging stages. Their durability, precise dimensions, and corrosion resistance ensure smooth, uninterrupted operation, reducing bottle jams and maintaining high efficiency in high-speed production lines.
  5. Packaging Machinery: In packaging industries, these stainless steel conveyor chains move products through sorting, filling, and sealing processes. Their flexibility for customization with attachments like hooks or brackets allows tailored solutions, enhancing efficiency and reliability in handling diverse packaging materials and shapes.
  6. Agricultural Machinery: These stainless steel chains are employed in agricultural equipment for tasks like harvesting or material transport. Their corrosion resistance and high strength make them ideal for outdoor use, withstanding exposure to moisture, dirt, and chemicals while maintaining reliable performance.
Stainless Steel Short Pitch Conveyor Chain ApplicationsStainless Steel Short Pitch Conveyor Chain Applications
Stainless Steel Short Pitch Conveyor Chain ApplicationsStainless Steel Short Pitch Conveyor Chain Applications
