Steel Straight Bevel Gears Straight Tooth System Ratio 3.5:1

Steel straight bevel gears with a straight tooth system and a 3.5:1 ratio are mechanical components designed to transmit power between intersecting shafts, typically at a 90-degree angle. These gears feature straight, conical teeth that are simpler to manufacture than spiral or zerol bevel gears, resembling conical spur gears. The 3.5:1 ratio indicates that the larger gear (crown gear) has 3.5 times more teeth than the smaller gear (pinion), enabling a speed reduction or torque increase. Commonly made from materials like C45 steel, they offer durability but produce more noise and vibration at high speeds due to abrupt tooth engagement. They are used in applications like machinery, vehicles, and industrial equipment, requiring rigid mountings for alignment.

Steel straight bevel gears with a straight tooth system and a 3.5:1 ratio are mechanical components designed to transmit power between intersecting shafts, typically at a 90-degree angle. These gears feature straight, conical teeth that are simpler to manufacture than spiral bevel gears or zerol bevel gears, resembling conical spur gears. The 3.5:1 ratio indicates that the larger gear (crown gear) has 3.5 times more teeth than the smaller gear (pinion), enabling a speed reduction or torque increase. Commonly made from materials like C45 steel, they offer durability but produce more noise and vibration at high speeds (typically limited to <1000 feet/min or <1000 rpm for small gears) due to abrupt tooth engagement. They are used in applications like machinery, vehicles, and industrial equipment, requiring rigid mountings for alignment.

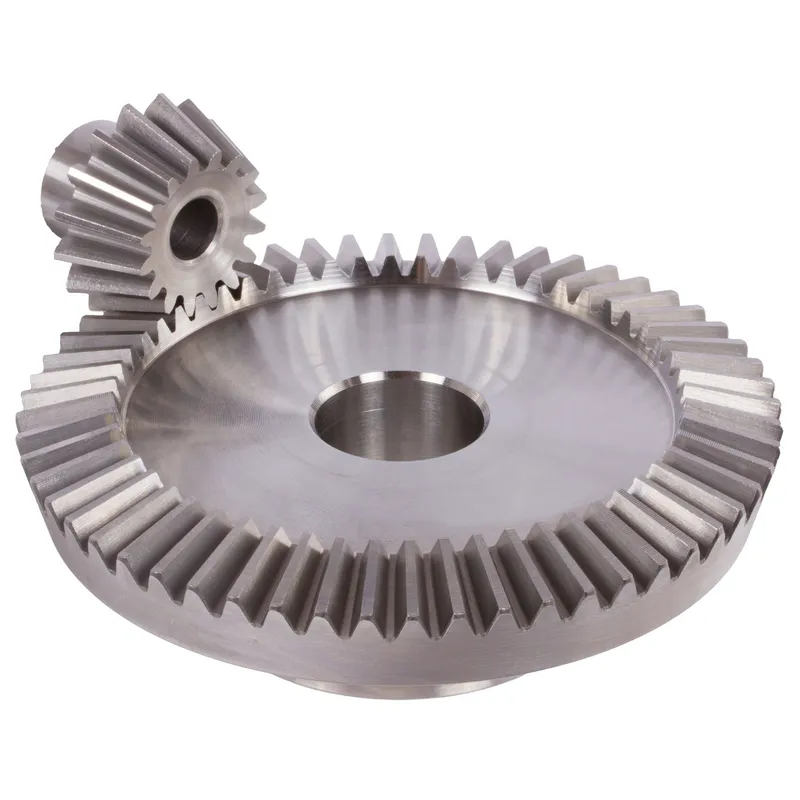

Steel Straight Bevel Gears

Steel Straight Bevel Gear Ratio 3.5:1

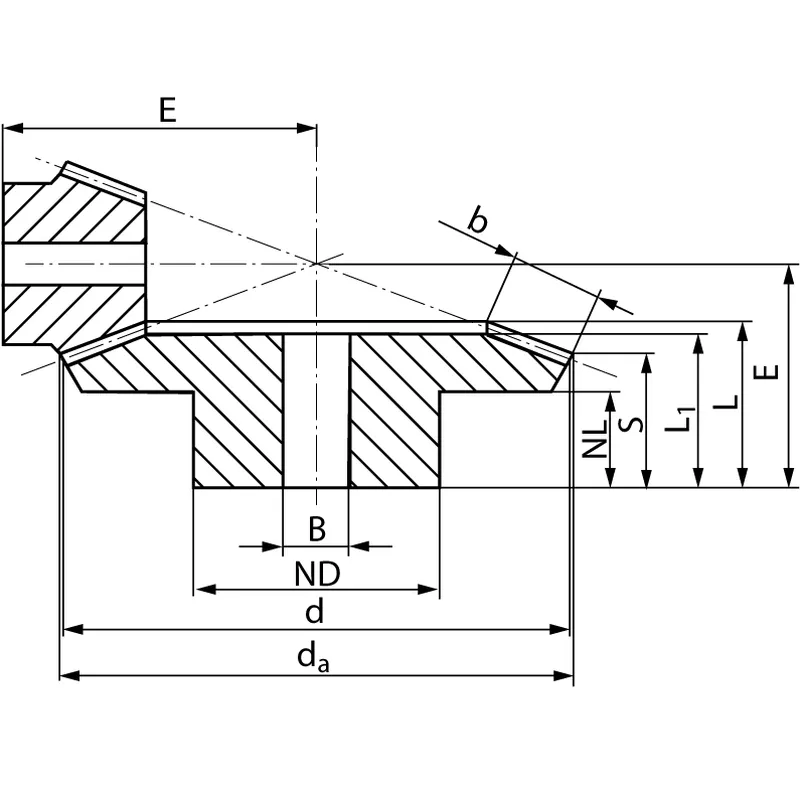

Steel Straight Bevel GearsSteel Straight Bevel Gear Dimensions
ModuleNumber
of teeth
dadNDNLL1LSbBH7ETorque*Weight
mmmmmmmmmmmmmmmmmmmmNcmg
11618,716137,61616,68,48,75360,12716
15656,3563010,01416,714,68,78220,445130
1,51628,1241812,2242613,613,18550,4548
1,55684,58450122427,123,813,115351,58634
21635,93220102526,812,51510680,9982
256113,111260183135,531,91525463,471200
2,51644,9403016,53637,718,72010886,0220
2,556141,414080183237,232,420255021,02300
31653,94840153940,616,8251510010,9340
356169,716880183339,834,025305538,23100
41671,96450134244,616,1302012724,7660
456226,322490204049,042,030307086,56900

Advantages of Steel Straight Bevel Gears

  • Cost-Effective Manufacturing: Steel straight bevel gears are simpler and less expensive to produce compared to spiral or hypoid gears. Their straight tooth design requires less complex machining, making them ideal for applications where budget constraints are a priority, while still delivering reliable performance in industrial settings.
  • High Durability and Strength: Made from robust materials like C45 steel, these gears withstand significant mechanical stress and wear. Their sturdy construction ensures long service life, even in demanding applications like automotive differentials or heavy machinery, reducing maintenance and replacement costs.
  • Efficient Power Transmission: The 3.5:1 gear ratio enables effective torque multiplication and speed reduction between intersecting shafts, typically at 90 degrees. This makes them suitable for applications requiring precise power transfer, such as in machine tools or conveyor systems, ensuring consistent performance.
  • Ease of Installation and Maintenance: The straightforward design of straight bevel gears simplifies installation and alignment in mechanical assemblies. Their rigid mounting requirements are easier to achieve, and maintenance is minimal, making them practical for systems where downtime must be kept to a minimum.
  • Versatility in Applications: These steel bevel gear sets are adaptable to various industries, including automotive, aerospace, and industrial machinery. Their ability to handle moderate speeds and loads makes them suitable for diverse systems, from small equipment to larger mechanical setups, enhancing design flexibility.
  • Reliable Performance at Low Speeds: Straight bevel gears excel in low-speed applications (typically <1000 feet/min or <1000 rpm for small gears), where their abrupt tooth engagement causes less noise and vibration. This reliability suits applications like manual machinery or low-speed drives, ensuring stable operation.

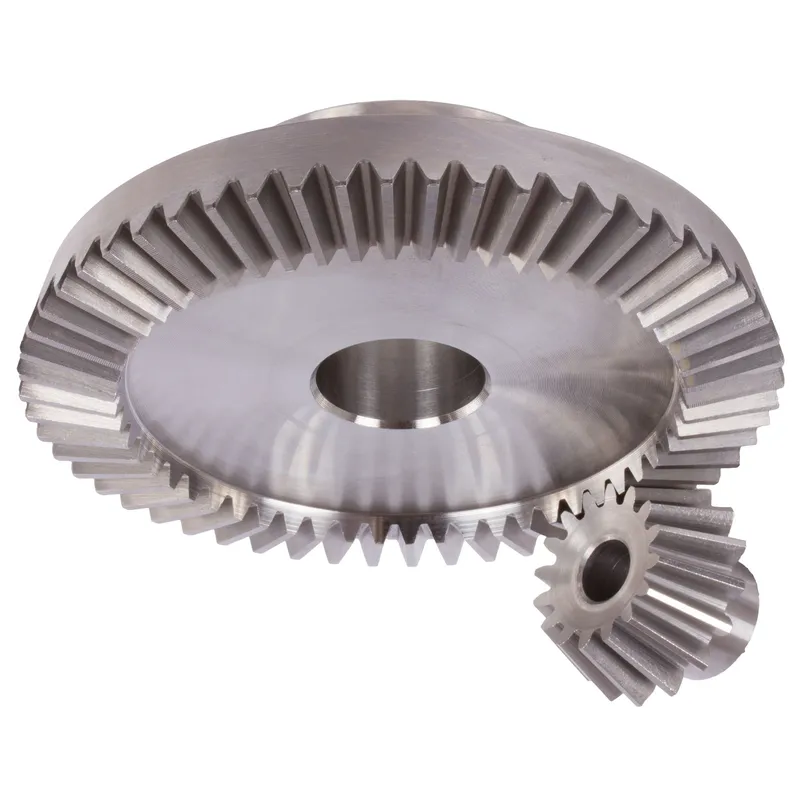

Steel Straight Bevel Gear Advantages

Steel Straight Bevel Gear Applications

  • Automotive Differentials: Steel straight bevel gears are critical in automotive differentials, enabling torque transfer between intersecting shafts at a 90-degree angle. The 3.5:1 ratio facilitates efficient power distribution to wheels, ensuring smooth vehicle handling, particularly in light-duty trucks or off-road vehicles under moderate loads.
  • Industrial Machinery: These gears are employed in industrial equipment like milling machines and lathes, where precise speed reduction is needed. Their robust steel construction handles moderate loads effectively, ensuring reliable operation in manufacturing processes requiring consistent power transmission at low to medium speeds.
  • Conveyor Systems: In conveyor belt systems, straight bevel gears transmit power to change shaft directions, supporting material handling in industries like mining or logistics. The 3.5:1 ratio provides adequate torque for moving heavy loads, enhancing system efficiency and operational stability.
  • Agricultural Equipment: Used in tractors and harvesters, these gears manage power transfer for attachments like plows or seeders. Their durability and ability to operate at low speeds (<1000 rpm) make them ideal for rugged agricultural environments, ensuring consistent performance in tough conditions.
  • Marine Applications: Straight bevel gears are utilized in marine propulsion systems, such as outboard motors, to transfer engine power to propellers. Their simple design and strength suit low-speed marine environments, providing reliable torque conversion for small to medium-sized vessels.
  • Power Tools: In power tools like drills or grinders, these bevel gear sets enable precise control of rotational speed and torque. The 3.5:1 ratio supports efficient power delivery in compact designs, ensuring durability and performance in handheld or stationary workshop tools.
Bevel Gear for Automotive IndustryBevel Gear for Marine Industry
Automotive IndustryMarine Industry
Bevel Gear for Agricultural MachineryBevel Gear for Industrial Machinery
Agricultural Machinery Industrial Machinery

Straight Bevel Gear Vs Miter Bevel Gear

Straight Bevel Gears feature straight teeth that are cut along the gear’s conical surface, converging at the apex. This simple design makes them easier and less expensive to manufacture compared to other bevel gears. They are highly efficient in transmitting power, typically achieving efficiencies above 95%, and are suitable for low to moderate speed applications. However, their straight teeth cause abrupt tooth engagement, leading to noise and vibration at high speeds. They are commonly used in automotive differentials, machine tools, and industrial machinery where cost-effectiveness and simplicity are prioritized. Their load-carrying capacity is limited by the single-point contact between teeth, which can lead to wear under heavy loads.

Miter Bevel Gears are a specific subset of straight bevel gears with a 1:1 gear ratio, meaning both gears have the same number of teeth and rotate at the same speed. They are designed solely to change the direction of power transmission without altering speed or torque. Miter gears are typically used in applications requiring precise 90-degree shaft intersections, such as in conveyors, printing presses, or small machinery. Their design ensures smooth operation but like straight bevel gears, they can be noisy at high speeds due to the straight tooth profile.

The primary distinction lies in their function: straight bevel gears can have varying gear ratios for speed or torque modification, while miter gears are strictly for directional changes with equal speeds. Both types are robust but less suitable for high-speed, high-torque applications compared to spiral bevel gears, which offer smoother and quieter operation.

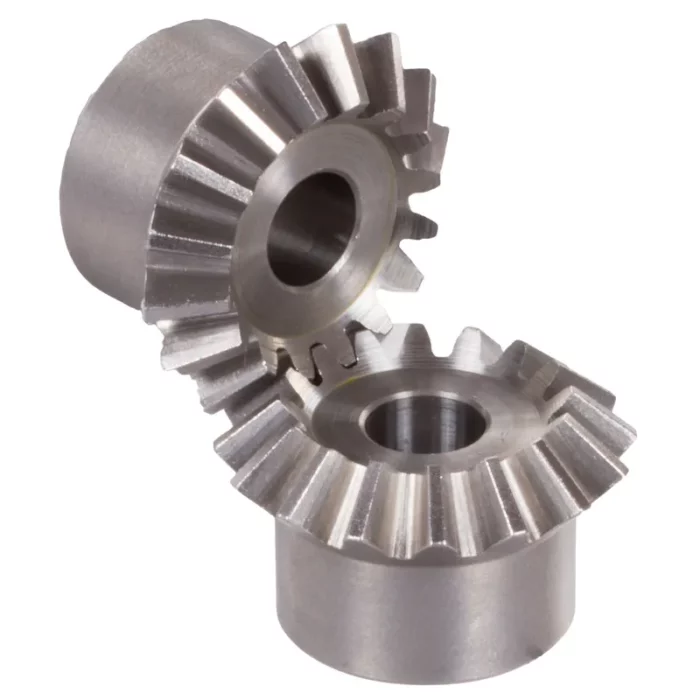

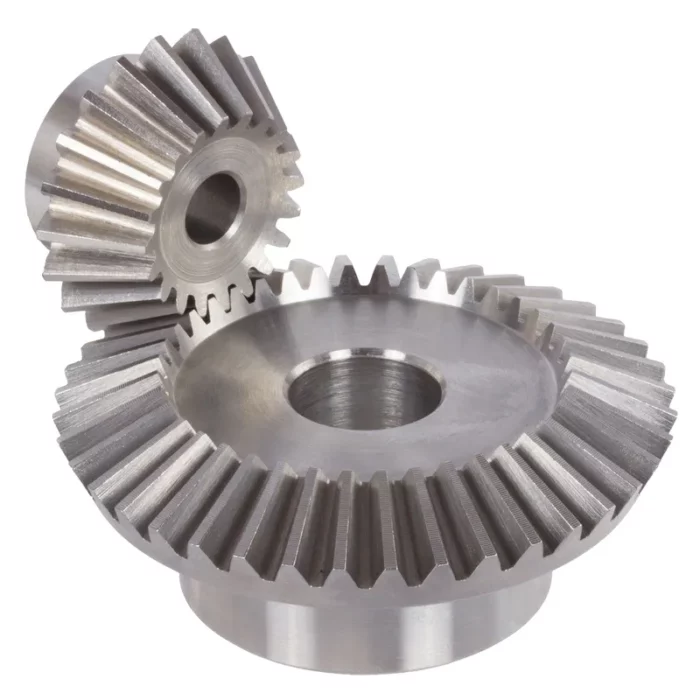

Straight Bevel GearsMiter Bevel Gears
Straight Bevel GearMiter Bevel Gear
