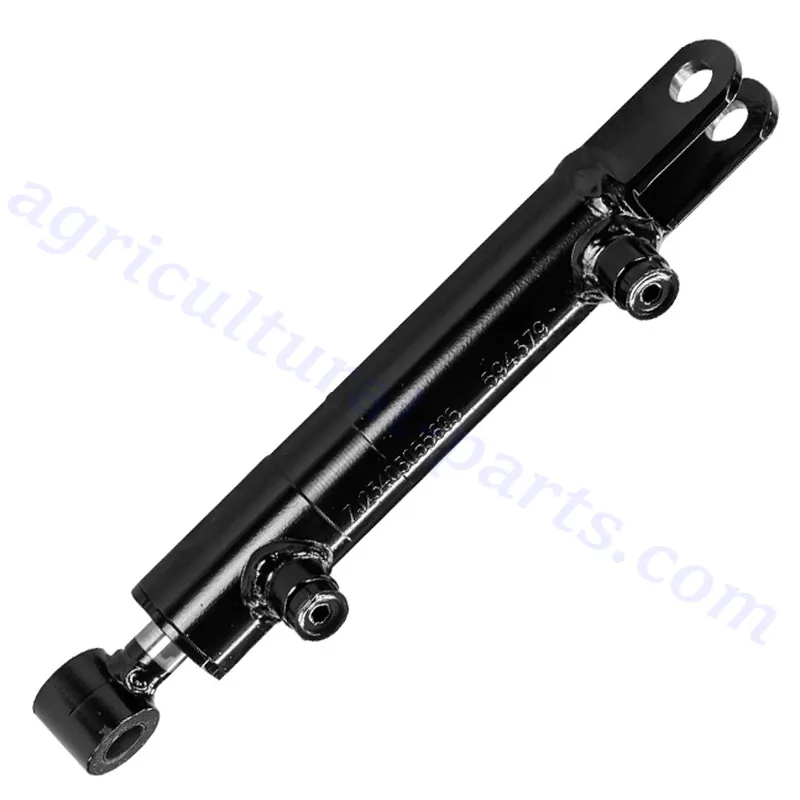

Steering Hydraulic Cylinder for Scissor Type Aerial Work Platforms

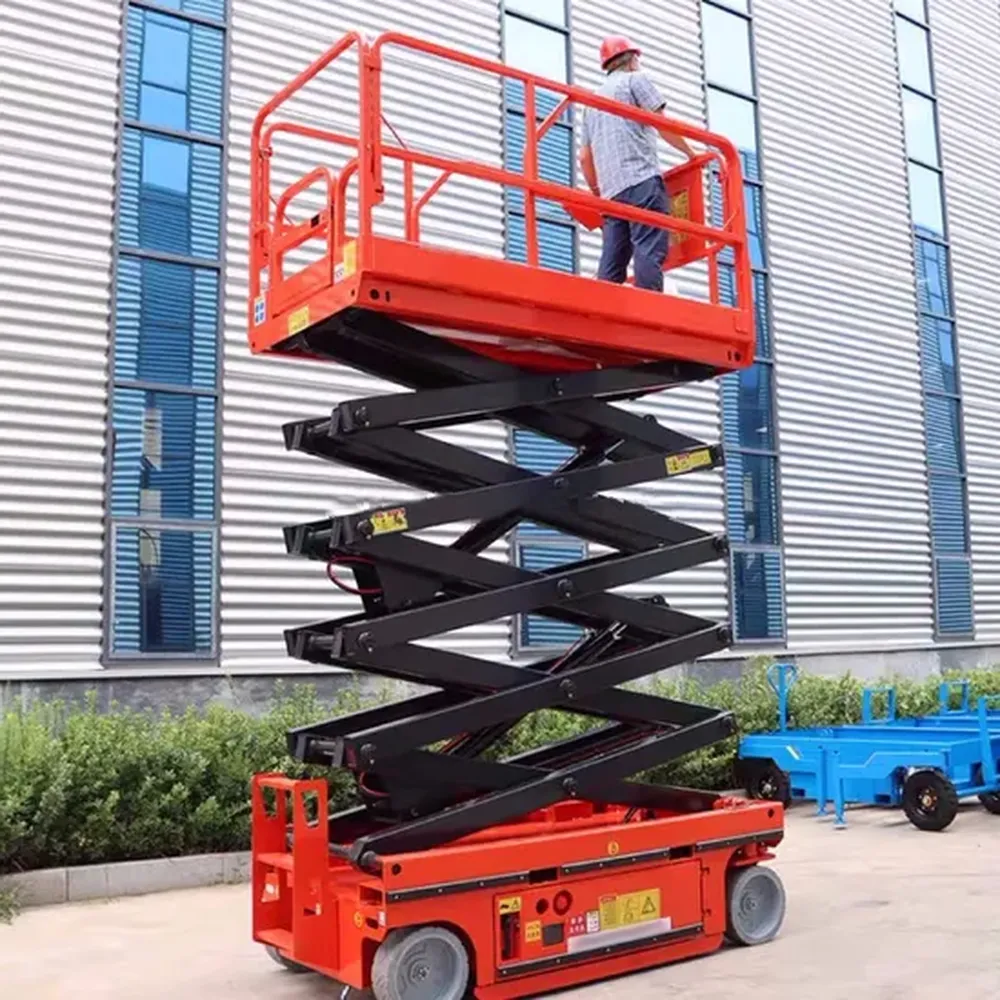

The steering hydraulic cylinder for scissor-type aerial work platforms is a critical component designed to facilitate precise steering and maneuverability of the platform. These aerial work platforms are often used in construction, maintenance, and other industries where workers need to access elevated areas safely. The steering hydraulic cylinder plays a crucial role by converting hydraulic pressure into mechanical force, which is then used to control the direction of the wheels or axles.

The steering cylinder consists of a robust steel body, a piston, a piston rod, and seals that prevent fluid leakage. When pressurized hydraulic fluid is directed into the cylinder, it moves the piston, which in turn moves the wheels to the desired angle. This allows the operator to steer the platform smoothly, even in tight or confined spaces. Designed for durability, the hydraulic cylinder can withstand heavy loads, repeated use, and harsh environmental conditions. It ensures reliable performance and enhances the safety and efficiency of the aerial work platform by providing precise and responsive steering control.

Steering Hydraulic Cylinder Specifications

Function of Steering Hydraulic Cylinder for Scissor Type Aerial Work Platforms

The steering hydraulic cylinder in scissor-type aerial work platforms is a crucial component that serves the primary function of enabling precise and controlled steering of the platform. This hydraulic mechanism is responsible for converting hydraulic energy into mechanical motion, allowing the wheels or axles of the platform to turn and change direction smoothly. Its primary role is to ensure the operator can safely and efficiently maneuver the platform in various working environments, including tight spaces or crowded work sites.

The steering hydraulic cylinder works by receiving pressurized hydraulic fluid from the platform's hydraulic system. This fluid enters the cylinder, causing the piston inside to move. The piston then pushes or pulls the piston rod, which is connected to the steering mechanism of the wheels. By directing the hydraulic fluid into specific ports of the cylinder, the piston moves in the desired direction, allowing the operator to steer the platform accurately. This precise control is critical for navigating narrow corridors, aligning the platform with work areas, or positioning it on uneven terrain.

Additionally, the steering hydraulic cylinder is designed to handle heavy loads and withstand tough operating conditions. It is constructed from high-strength materials, such as steel, to maintain durability and reliability over extended periods of use. Seals within the cylinder prevent hydraulic fluid leakage, ensuring consistent performance and minimizing the risk of system failure.

How to Replace a Damaged Steering Hydraulic Cylinder

Replacing a damaged steering hydraulic cylinder for a scissor type aerial work platform requires careful attention to detail and following specific steps to ensure the task is completed safely and effectively. Here are some steps on how to replace a damaged steering hydraulic cylinder:

1. Ensure Safety and Prepare the Platform: Begin by parking the platform on a flat, stable surface. Power off the machine and engage the emergency stop to prevent accidental operation. Use wheel chocks and ensure the platform is fully lowered to avoid any risk of instability during the replacement process.
2. Relieve Hydraulic System Pressure: Release the hydraulic pressure in the system by following the manufacturer’s guidelines. Typically, this involves operating the controls to release any residual pressure and disconnecting the hydraulic pump. This step is essential to avoid hydraulic fluid spray or accidental movement during cylinder removal.
3. Disconnect Hydraulic Lines: Locate the steering hydraulic cylinder and carefully disconnect the hydraulic hoses attached to it. Place a container or absorbent material beneath the connections to catch any leaking fluid. Be sure to cap the hydraulic lines and ports to prevent contamination or fluid loss.
4. Remove the Damaged Cylinder: Unbolt the damaged cylinder from its mounting points using the appropriate tools. This may involve loosening retaining bolts or pins that secure the cylinder to the steering mechanism. Once detached, inspect the mounting points for wear or damage and clean them thoroughly before installing the new cylinder.
5. Install the New Hydraulic Cylinder: Position the new steering hydraulic cylinder in place and secure it to the mounting points using bolts or pins. Tighten them to the manufacturer’s specified torque values. Reconnect the hydraulic hoses to the new cylinder, ensuring all connections are tight and free of leaks.
6. Test and Verify Proper Operation: Refill the hydraulic system with the appropriate fluid and bleed the system to remove air. Power on the platform and test the steering functionality to ensure the new cylinder operates smoothly. Inspect for leaks or abnormal noises and make adjustments as necessary before resuming normal operation.

Other Scissor Type Aerial Work Platform Hydraulic Cylinders

In addition to the steering hydraulic cylinder, scissor type aerial work platforms may include other types of hydraulic cylinders to facilitate various functions and movements. Here are some common types of hydraulic cylinders found in scissor type aerial work platforms:

• Floating Hydraulic Cylinders: Floating hydraulic cylinders are designed to provide flexibility and compensate for misalignment or uneven loads during operation. They allow for slight lateral or axial movement, ensuring smoother motion and reducing stress on the platform’s structural components. This helps maintain operational stability and prevents undue wear on the hydraulic system.
• Support Hydraulic Cylinders: Support hydraulic cylinders are primarily used to stabilize the scissor lift during operation. They provide additional structural support to maintain balance and prevent tilting or swaying when the platform is elevated. These cylinders are critical for ensuring worker safety, especially in environments with uneven ground or heavy loads.
• Lifting Hydraulic Cylinders: Lifting hydraulic cylinders are the core components responsible for raising and lowering the scissor platform. They convert hydraulic pressure into the vertical motion needed to extend or retract the scissor mechanism. These cylinders are built for durability and precision, as they must handle significant loads while maintaining smooth and controlled movement.

Why Choose AGKNX's Aerial Work Vehicle Hydraulic Cylinders?

AGKNX is a professional manufacturer of middle and high-end hydraulic cylinders. It is the largest domestic forklift hydraulic cylinder, aerial work truck hydraulic cylinder, industrial vehicle hydraulic cylinder, and manufacturing base. The company has a hydraulic products testing room and a high-tech research and development center, with key equipment development and production of independent intellectual property rights. Perfect quality assurance system, complete production and testing means, strong technical development ability.

The company's products mainly include forklift hydraulic cylinders, industrial vehicle hydraulic cylinders, construction machinery hydraulic cylinders, aerial work truck hydraulic cylinders, sanitation machinery hydraulic cylinders, wind power hydraulic cylinders, agricultural machinery hydraulic cylinders, and other supporting equipment. In addition to manufacturing medium and high-end hydraulic cylinders, we also produce hydraulic cylinder parts and forklift parts cylinders. At present, AGKNX's hydraulic cylinder products are sold to many countries and regions around the world. If you cannot find what you need in our inventory, please feel free to consult us for the manufacture of custom hydraulic cylinders. We can meet unique size or design requirements to meet your specific application needs.
