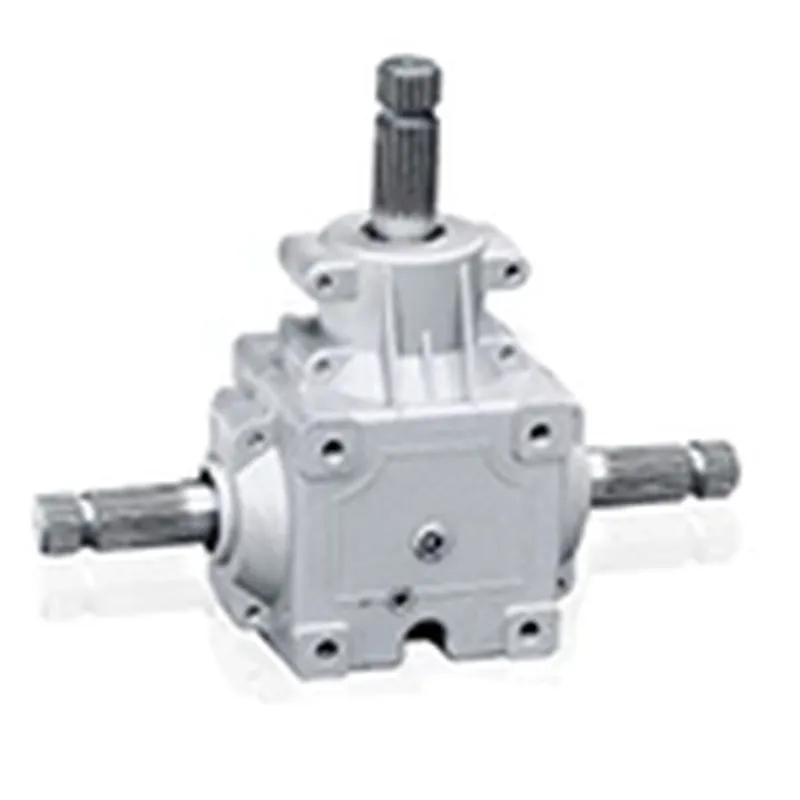

T Series Grain Storage Gearbox EP-4090 for Agricultural Grain Storage

The T Series Grain Storage Gearbox is an advanced mechanical component specifically designed for agricultural grain storage and handling systems. This gearbox plays a pivotal role in ensuring efficient, smooth, and reliable operation of machinery used in the movement and management of grain within various storage facilities.

Constructed from high-strength materials such as hardened steel or robust cast iron, the T Series is built to endure the abrasive and often corrosive environment of grain storage. Its engineering focuses on delivering maximum torque and power efficiency, enabling it to drive heavy-duty applications like grain elevators, conveyors, and augers with less energy consumption.

This series typically features customizable gear ratios, allowing precise control over output speed and torque to match specific operational requirements. It also incorporates advanced sealing technologies to prevent dust ingress and lubricant leakage, enhancing the longevity and reducing the maintenance needs of the gearbox.

T Series Grain Storage Gearbox EP-4090 Specifications

Benefits of Using the T Series Grain Storage Gearbox for Agricultural

The T Series Grain Storage Gearbox offers numerous benefits for agricultural grain storage and handling systems, enhancing both operational efficiency and reliability. Here are some of the key advantages:

• High Durability: The T Series is constructed from high-quality materials like hardened steel or cast iron, which are resistant to wear and corrosion. This robust construction ensures that the gearbox can withstand the demanding conditions of agricultural environments, including exposure to dust, moisture, and mechanical stress, thereby extending its operational life.
• Enhanced Efficiency: This series of gearboxes is designed to maximize power transmission efficiency. With precision-engineered gear ratios and minimized mechanical losses, the T Series gearboxes ensure that the maximum amount of power is delivered from the motor to the grain handling equipment, reducing energy consumption and lowering operating costs.
• Versatility: The T Series gearboxes are designed to be compatible with a variety of agricultural equipment, from conveyors and augers to elevators and grain stirrers. This versatility allows them to be easily integrated into existing systems without the need for extensive modifications or custom parts.
• Improved Performance: With customizable gear ratios, the T Series allows precise control over output speed and torque, enabling operators to optimize the performance of grain handling equipment according to specific tasks and conditions. This adaptability can lead to more efficient grain movement and better handling characteristics.
• Low Maintenance: Advanced sealing technologies in the T Series prevent dust ingress and lubricant leakage, critical factors in the harsh environment of grain storage. These features reduce the need for frequent maintenance checks and replacements, thus minimizing downtime and maintenance costs.
• Noise Reduction: Gearboxes in the T Series are designed to operate quietly, reducing noise pollution in the work environment. This is particularly beneficial in large-scale agricultural operations where multiple gearboxes are in use, improving the overall work environment and complying with noise regulations.

Common Applications:

The T Series Grain Storage Gearbox is designed to serve various essential functions within agricultural grain storage and handling systems. Its robust construction and versatile design enable it to be effectively used in numerous applications:

1. Grain Elevators: The gearbox is used to operate grain elevators, which are crucial for moving grains vertically from one level to another within a facility. Its ability to handle high torque requirements makes it ideal for this application, where efficient vertical transport is critical.
2. Conveyors: In conveyor systems, the T Series gearbox facilitates the smooth and continuous movement of grain across different sections of the storage facility. It helps to maintain consistent flow rates and can be adapted to various conveyor designs, enhancing system flexibility.
3. Augers: Commonly used in grain augers for transporting grain into or out of storage bins, the T Series gearbox provides the necessary power and torque to operate these spiral systems, ensuring efficient grain movement without clogging or delays.
4. Grain Dryers: Gearboxes in this series also drive grain dryers, which reduce the moisture content of the grain to safe levels for storage. The gearbox supports the operation of the mechanical components that move the grain through the dryer, maintaining the required throughput for effective drying.
5. Ventilation Systems: Proper ventilation is crucial in grain storage to prevent spoilage. The T Series gearbox powers ventilation systems that circulate air throughout the storage facilities, helping to control temperature and moisture levels.

Working Principle of T Series Grain Storage Gearbox for Grain Augers

The working principle of the T Series Grain Storage Gearbox when used in grain augers involves efficiently transferring power from a motor to the auger mechanism to facilitate the movement of grain. Here's a detailed breakdown of how the gearbox functions in this application:

• Power Input: The operation begins when the T Series Gearbox receives mechanical power from an external source, typically an electric motor. The motor’s shaft is connected to the input shaft of the gearbox, where rotational energy is transferred.
• Torque and Speed Adjustment: Inside the gearbox, a series of gears engage to convert the high-speed, low-torque input from the motor into a lower speed, higher torque output. This conversion is crucial because grain augers require substantial torque to move large volumes of grain against gravity and through the tubing.
• Transmission of Power: The transformed output from the gearbox is then transmitted through the output shaft, which is connected to the auger’s drive mechanism. This mechanism typically includes a spiral or helical screw blade coiled around a shaft.
• Driving the Auger Screw: As the output shaft rotates, it drives the auger screw, turning it within a tube. This rotation moves the grain along the screw’s helical blade from the intake point to the discharge end. The efficiency of the gearbox ensures that this movement is continuous and uniform, which is essential for consistent grain flow.
• Load Handling: The gearbox is specifically designed to handle varying loads. Grain augers often encounter different grain densities and moisture contents, which can affect the load on the auger. The T Series Gearbox is robust enough to adapt to these changes without faltering, ensuring reliable operation.

Proper Maintenance:

Proper maintenance of the T Series Grain Storage Gearbox when used in grain augers is critical to ensure long-term reliability and efficient operation. Here are essential steps and practices to maintain these gearboxes effectively:

1. Regular Lubrication: Ensuring the gearbox is adequately lubricated is crucial for smooth operation and longevity. Use the manual-recommended type and grade of lubricant. Check the oil level regularly and top up as necessary. Change the lubricant according to the recommended schedule, typically once per season or after a set number of operating hours, to prevent buildup of contaminants and degradation of oil quality.
2. Routine Inspections: Perform regular inspections to identify potential issues before they lead to failures. Check for signs of wear, damage, or corrosion on all visible parts, including the gears, bearings, seals, and housing. Look for any signs of oil leakage, which could indicate a seal failure or a crack in the gearbox housing.
3. Cleaning: Keep the gearbox and its surrounding area clean. Dirt, debris, and grain dust can accumulate and potentially enter the gearbox, which can cause abrasion and premature wear of internal components. Cleaning around the gearbox helps prevent contamination and overheating.
4. Monitoring Noise and Vibration: Pay attention to changes in noise and vibration levels during operation. Increased noise or vibration could indicate misalignment, imbalance, or bearing failure. Early detection of these symptoms can allow for timely corrective actions.
5. Alignment and Tightening: Regularly check and maintain the alignment between the gearbox and the auger motor. Misalignment can cause excessive wear and tear on bearings and gears. Also, ensure that all bolts and mounts are tight and secure to prevent any movement that could lead to misalignment or other mechanical issues.
6. Temperature Checks: Monitor the temperature of the gearbox during operation. Excessive heat can be a sign of overloading, inadequate lubrication, or internal friction. Installing temperature sensors can help monitor this if the gearbox doesn’t already include them. Avoid operating the gearbox beyond its thermal limits to prevent heat-related damage.
