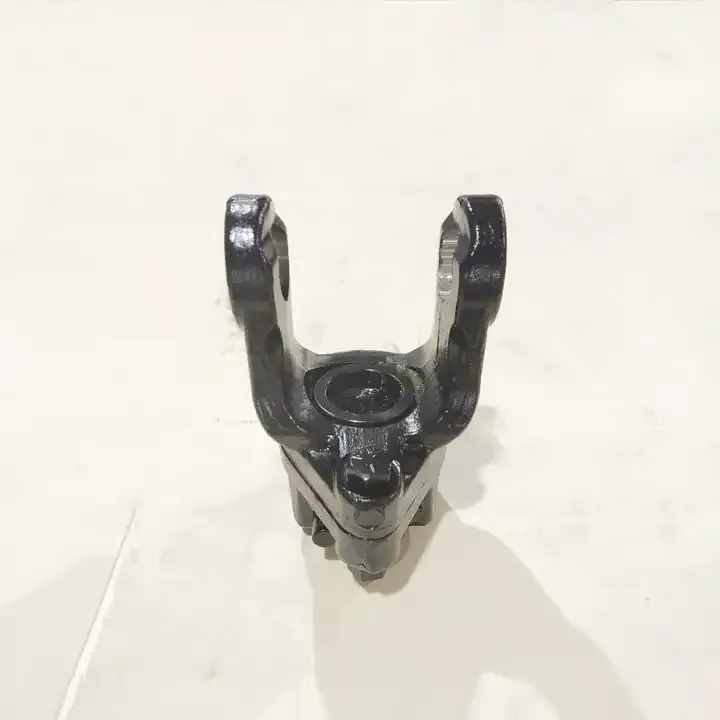

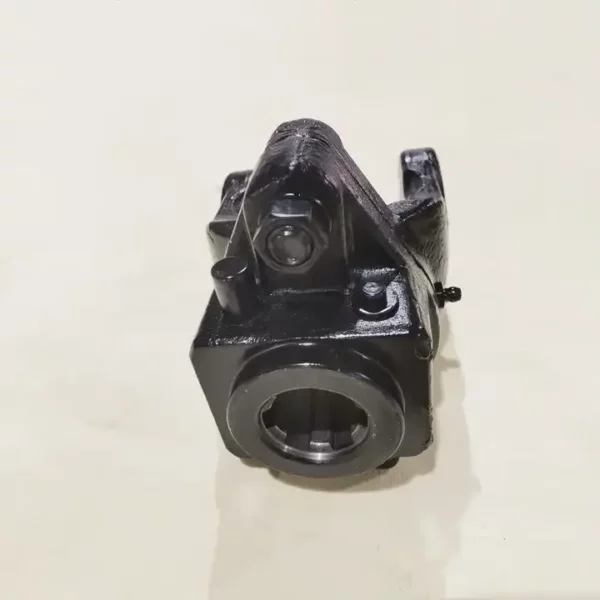

Tractor Parts PTO Shaft Parts SB 80 Horse Power Shear Bolt Torque Limiter

Introducing the Tractor Parts PTO Shaft Parts SB 80 Horse Power Shear Bolt Limiter, a high-quality product designed for a variety of applications. This product is new, weighs 3 KG and comes with a 6-month warranty. It is suitable for use in a wide range of industries including, but not limited to, hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, home use, retail, food shops, construction works, energy & mining, food & beverage shops, and other advertising companies.

Tractor Parts Shear Bolt Torque Limiter Specifications

Model Number
8SB 1 3/8'' Z6 Black
Function
Drive Shaft Parts & Power Transmission
Use
Kinds of Tractors & Farm Implements
Brand Name
AGKNX
Yoke Type
Double push pin,Bolt pins,Split pins,Push pin,Quick release,Ball attachment,Collar.....
Processing Of Yoke
Forging
Plastic Cover
YW;BW;YS;BS;Etc
Color
Green;Orange;Yellow;Black Ect.
Series
T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc
Tube Type
Lemon,Trianglar,Star,Square,Hexangular,Spline,Special Ect
Processing Of Tube
Cold drawn
Spline Type
1 1/8" Z6;1 3/8" Z6; 1 3/8" Z21 ;1 3/4" Z20; 1 3/4" Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;
Place of Origin
Haining, China (Mainland)

Features of PTO Shaft Parts SB 80 Horse Power Shear Bolt Torque Limiter

The SB 80 Horse Power Shear Bolt Torque Limiter is an ordinary product type with a yoke and shear bolt torque limiters. The product is designed for use with a PTO drive shaft. The product is black in color and of high quality, holding ISO & CE certificates. The product has 1 3/8'' Z6 teeth and is made from 45C material. The yoke is processed through forging, making it durable and resistant to wear and tear. We are confident that our product is a perfect replacement for the corresponding parts that are damaged on PTO shaft shear bolt torque limiters.

Applications of PTO Shaft Parts SB 80 Horse Power Shear Bolt Torque Limiter

PTO shaft shear bolt torque limiters find applications in a wide range of machinery and equipment that utilize power take-off systems. Here are some common applications where PTO shaft shear bolt torque limiters are used:

  • Agricultural Machinery: PTO shaft shear bolt torque limiters are extensively employed in various types of agricultural equipment. This includes tractors, combine harvesters, balers, mowers, and tillers, among others. These machines often require the transfer of power from the tractor's engine to different attachments or implements, and the torque limiter ensures the safety of the equipment and operator in case of overload or blockage.
  • Landscaping Equipment: PTO shaft shear bolt torque limiters are used in landscaping machinery such as rotary cutters, flail mowers, and sprayers. These machines require the transfer of power to perform tasks like cutting vegetation or spraying pesticides, and the torque limiter ensures protection against excessive loads or obstructions.
  • Material Handling Equipment: PTO shaft shear bolt torque limiters can be found in material handling machinery, including feed mixers, grain augers, and hay balers. These machines rely on the power take-off system to move or process materials, and the torque limiter safeguards against potential damage caused by overloading or blockages.

SB Shear Bolt Torque Limiter Applications

Types of PTO Shaft Torque Limiters

PTO (Power Take-Off) shaft torque limiters are critical safety devices designed to protect both the tractor and the attached implement from damage caused by torque overload. These devices disengage the drive when the torque exceeds a predetermined level. Different types of torque limiters cater to various machinery needs and operational scenarios. Here's a rundown of the common types:

  1. Friction Clutch Torque Limiters: Ideal for applications where overloads are less predictable and a gradual reduction in torque is preferred.
  2. Shear Bolt Torque Limiters: Simple and cost-effective, suitable for applications where overloads are infrequent.
  3. Ratchet Type Torque Limiters: Useful in scenarios where quick re-engagement after an overload is essential.
  4. Ball Detent Torque Limiters: Preferred in applications that require precise torque settings.
  5. Hydraulic Torque Limiters: Ideal for heavy-duty and high-precision applications.

PTO Shaft Torque Limiter Types

How Does PTO Shaft Shear Bolt Torque Limiter Work?

A PTO shaft shear bolt torque limiter is designed to protect the PTO shaft and the connected equipment from damage in the event of an overload or sudden blockage. Here's a closer look at how it works:

    1. Construction: A shear bolt torque limiter typically consists of a hub, a flange, and a series of shear bolts.
    2. Shear Bolts: The shear bolts transmit the torque and hold the hub and flange together, enabling the rotation of the shaft.
    3. Normal Operation: During normal operation, the torque limiter allows the transfer of power from the PTO shaft to the driven equipment.
    4. Overload or Blockage: If an overload or blockage occurs in the driven equipment, it can result in a sudden increase in torque being transmitted through the PTO shaft.
    5. Shear Bolt Breakage: To protect against such damage, the shear bolts are designed to break or shear off when the torque exceeds their predetermined shear strength.
    6. Protection: By breaking the shear bolts, the torque limiter prevents the excessive torque from being transmitted to the connected equipment.
    7. Replacement: Once the shear bolts break, they need to be replaced before the PTO shaft can be used again.

Maintenance Method of PTO Shaft Shear Bolt Torque Limiter

To ensure the proper functioning of a PTO shaft shear bolt torque limiter and to maintain its effectiveness in protecting the PTO shaft and connected equipment, regular maintenance is crucial. Here are some maintenance methods for a PTO shaft shear bolt torque limiter:

  1. Regular Inspection: Perform visual inspections of the torque limiter on a routine basis.
  2. Shear Bolt Replacement: If the shear bolts have broken during operation, they need to be replaced promptly.
  3. Lubrication: Some torque limiters may require periodic lubrication to ensure smooth operation.
  4. Torque Setting: Ensure that the shear bolts are tightened to the correct torque setting during installation.
  5. Alignment: Proper alignment between the PTO shaft and the driven equipment is essential for the torque limiter's optimal performance.
  6. Load Monitoring: Keep an eye on the load and torque being transmitted through the PTO shaft. Avoid overloading the equipment beyond the torque rating of the shear bolts.

Why Choose AGKNX's SB Shear Bolt Torque Limiter for PTO Shaft?

AGKNX Drive Shaft Co., Ltd., located in Hangzhou Zhejiang City, two hours to the Pudong Airport and one hour to the Xiaoshan Airport & the East of Hangzhou Station, Covered more than 12,000 m2 with over 100 people on staff. We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, industrial cardan shafts, PTO shaft tubes, PTO shaft yokes, PTO shaft universal joints, PTO shaft torque limiters, car driveshafts, and u-joint coupling shafts, etc. The annual turnover is 60 million RMB, 9 Million Dollars, and It??s increasing year by year. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. AGKNX Driveshaft insisted on our principles: Quality first, Deliver quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, AGKNX continues its activities with the aim of becoming a global company in the fields it works.

PTO Shaft Accessories

When it comes to professionalism, AGKNX stands out. The company boasts international certifications, offers customized services, has state-of-the-art production facilities, and exceptional after-sales services. Backed by a team of professionals, AGKNX ensures top-notch quality in all its products.
