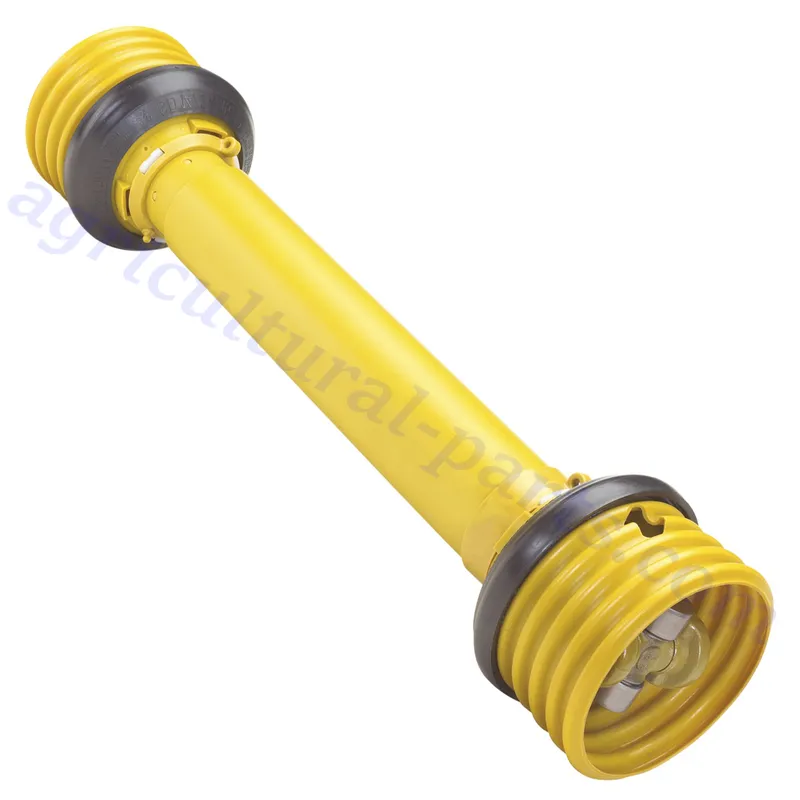

W 2600 PTO Shaft-Replacement of Walterscheid W 2600 PTO Drive Shaft

The W 2600 PTO shaft replacement of the Walterscheid W 2600 PTO drive shaft is a high-performance agricultural component designed to transfer mechanical power from a tractor’s PTO system to attached implements or machinery, such as mowers, balers, rotary tillers, or sprayers. As part of the trusted line of PTO drive shafts, the W 2600 model is built to endure heavy-duty agricultural operations, offering excellent durability, reliability, and efficiency in power transmission.

This PTO drive shaft features a robust construction using high-grade materials to withstand the rigors of demanding applications. It includes telescoping profiles that allow for length adjustment, ensuring compatibility with various implement coupling distances. The W 2600 series PTO driveshaft also integrates torque limiters or overrunning clutches (depending on configuration) to protect both the tractor and the implement from potential damage due to overload or sudden stops.

Note: Our products are replacement parts and not original equipment. We provide perfect replacement products for original equipment. If you need to purchase the original equipment, please contact the original supplier.

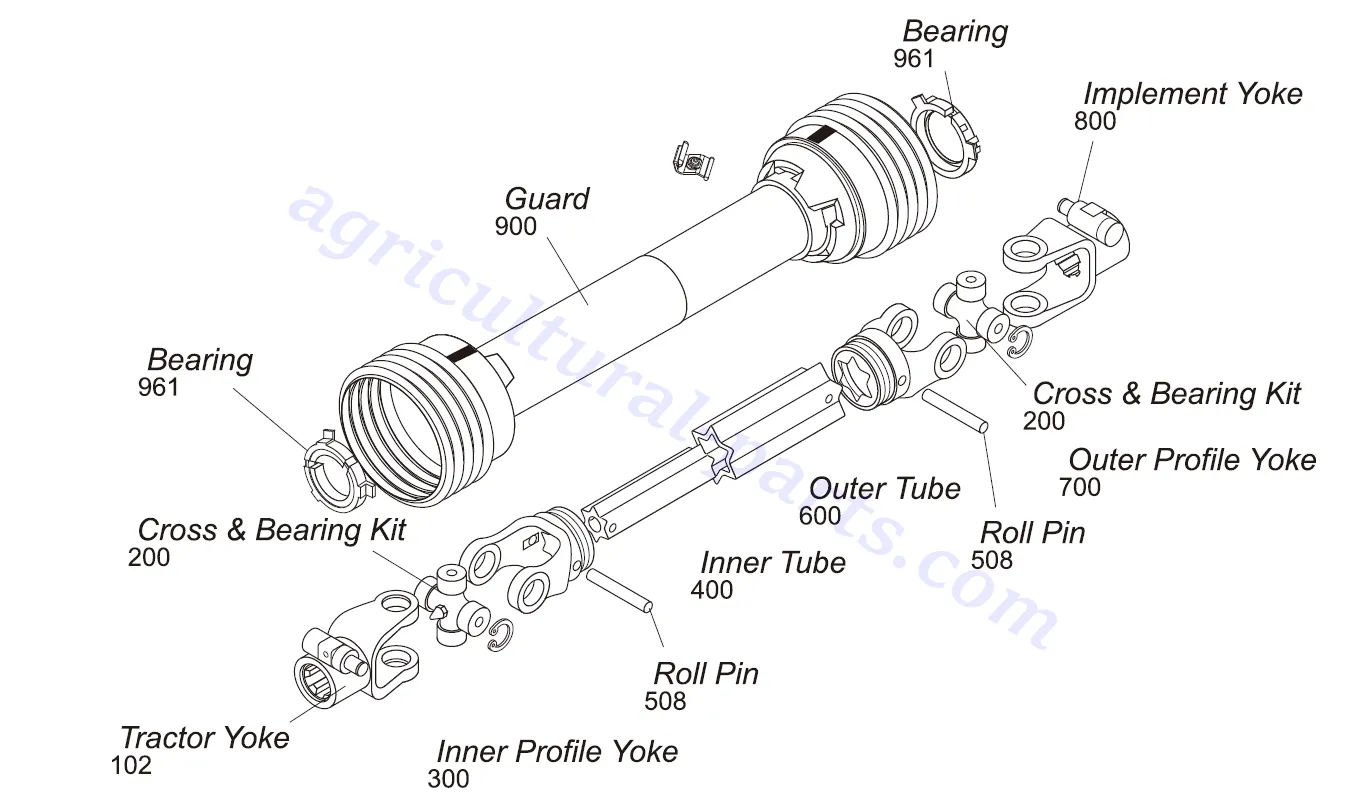

Replacement of Walterscheid W 2600 PTO Drive Shaft Parts

Tractor Yoke

	Dim. “A” Bore	Dim. “B”
		mm	in.
Safety Slide Lock	1 3/8” x 6 Spl.	150	5.91”
	1 3/4” x 20 Spl.	150	5.91”
	1 3/8” x 21 Spl.	150	5.91”
Quick Disconnect Yoke	1 3/8” x 6 Spl.	131.0	5.15”
	1 3/4” x 20 Spl.	131.0	5.15”
	1 3/8” x 21 Spl.	131.0	5.15”

Cross and Bearing Kit

	Dim. “A”		Dim. “B”
	mm	in.	mm	in.
	42.0	1.65”	104.0	4.09”

Inner Profile Yoke

	Dim. “A” Bore		Dim. “B”
	mm	in.	mm	in.
With Bearing Groove	61.0	2.40”	130.0	5.12”

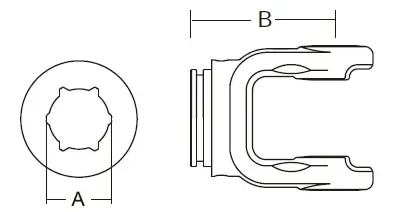

Outer Profile Yoke

	Dim. “A” Bore		Dim. “B”
	mm	in.	mm	in.
With Bearing Groove	71.7	2.82”	130.0	5.12”

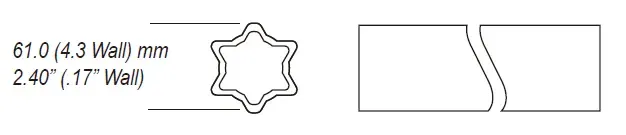

Inner Tube

	Length mm	in.
	1.5	59.06”
	1.0	39.37”

Roll Pin

	Dim. “A”		Dim. “B”
	mm	in.	mm	in.
	13.0	.50”	100.0	3.69”

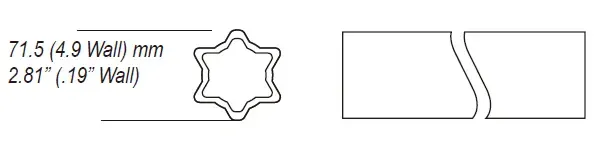

Outer Tube

	Length mm	in.
	1.5	59.06”
	1.0	39.37”

Implement Yoke

	Dim. “A” Bore		Dim. “B”		Standard Keyway
	mm	in.	mm	in.	mm	in.
Round Bore With Keyway & Set Screw	38.1	1.50”	130.0	5.12”	9.5	.37”
	41.3	1.63”	130.0	5.12”	9.5	.37”
	44.5	1.75”	130.0	5.12”	9.5	.37”
	50.8	2.00”	130.0	5.12”	12.7	.50”

Applications of Walterscheid W 2600 PTO Drive Shafts

The Walterscheid W 2600 PTO drive shaft is a critical component in modern agricultural and industrial applications, enabling efficient power transfer from tractors to a wide range of implements and machinery. Its robust design and versatility make it suitable for numerous heavy-duty applications in farming and related industries. Here are some common applications:

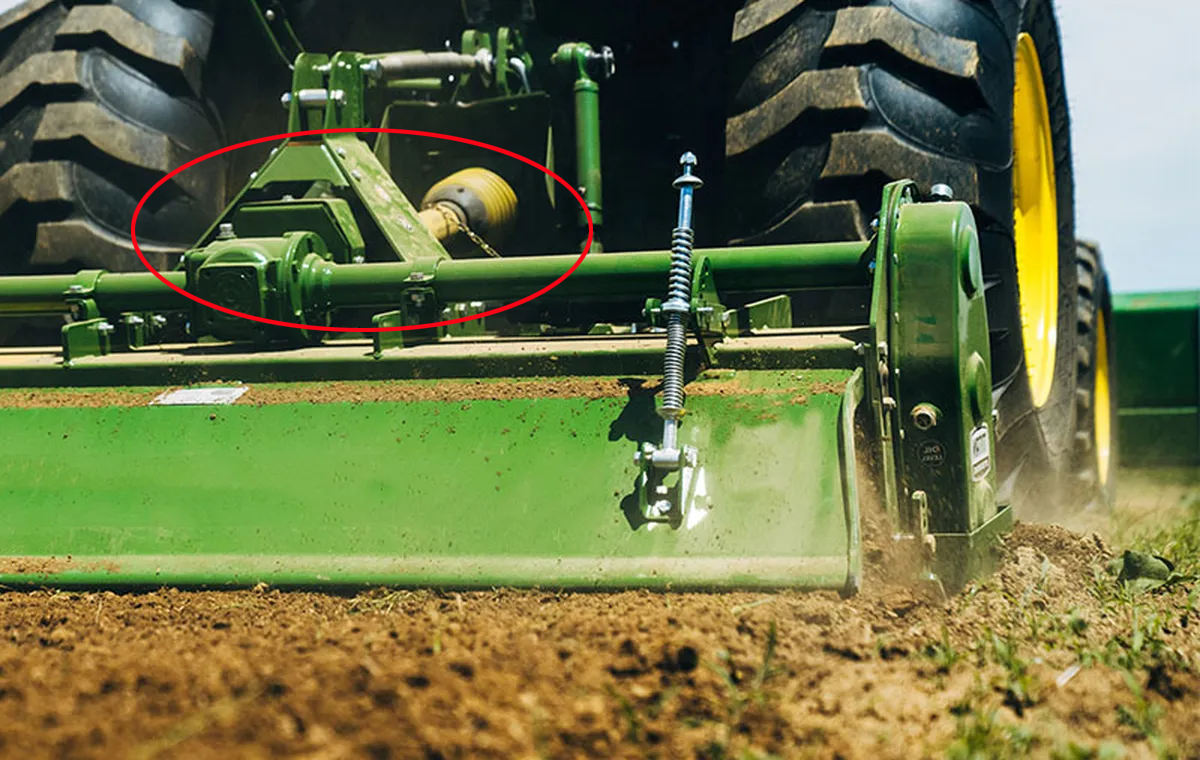

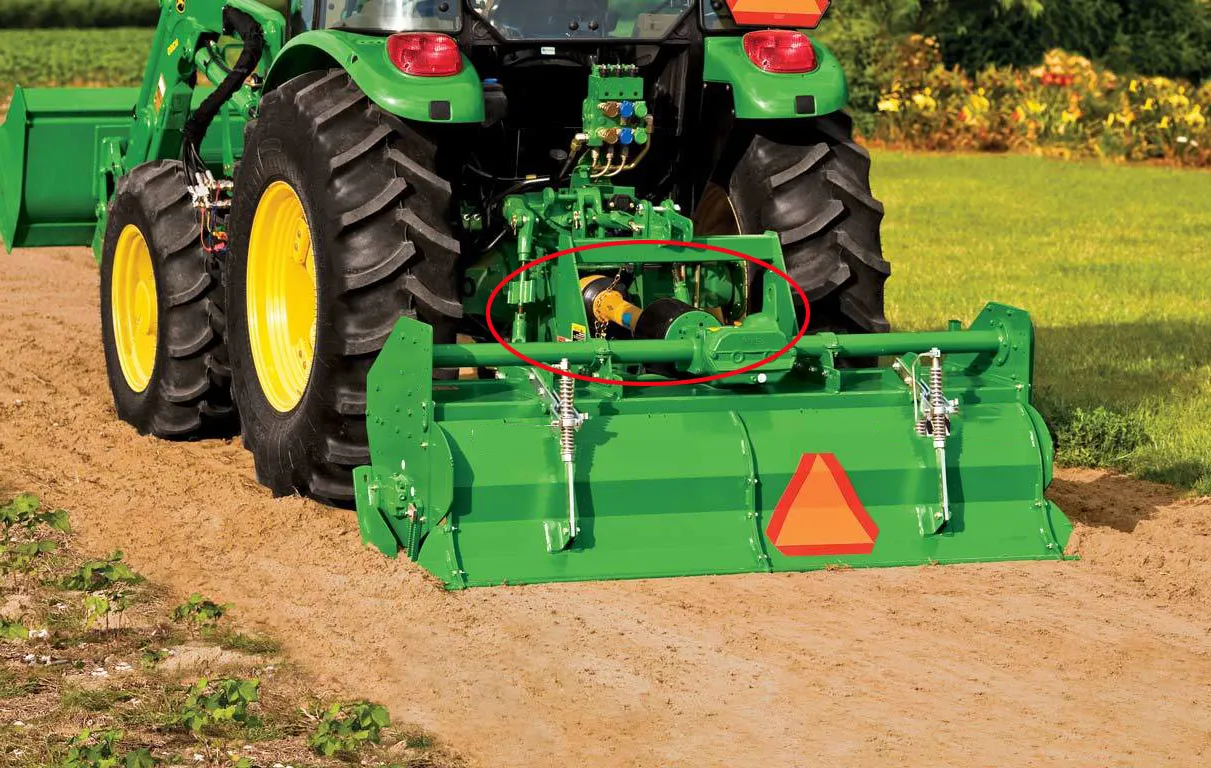

1. Tillage Equipment: The W 2600 PTO drive shaft is frequently used with tillage machinery, such as rotary tillers, cultivators, and harrows. These implements require consistent power to break up soil, prepare seedbeds, and aerate the land. The W 2600 ensures smooth power transfer, even under demanding conditions, enhancing productivity and reducing downtime.
2. Hay and Forage Equipment: This drive shaft is essential for powering hay-making implements, including balers, mowers, tedders, and rakes. These machines demand precise and reliable power transmission to cut, collect, and process hay or forage efficiently. The W 2600’s durable construction and torque-handling capabilities make it ideal for these applications, ensuring optimal performance even during peak harvesting seasons.
3. Sprayers and Spreaders: The W 2600 series PTO drive shaft is also used with field sprayers and fertilizer spreaders, which require consistent PTO power to operate pumps, fans, or spinning discs for even distribution of chemicals or fertilizer. Its ability to maintain reliable performance ensures accurate application, which is critical for crop health and yield.
4. Harvesting Equipment: Combine harvesters, forage harvesters, and other harvesting machinery rely on PTO drive shafts for smooth operation. The Walterscheid W 2600’s sturdy and precision-engineered components help these machines handle the intense demands of harvesting, such as cutting, threshing, and material transport.
5. Livestock Equipment: The W 2600 PTO shaft is also employed in powering machinery such as feed mixers, manure spreaders, or slurry tankers, all of which are essential for livestock management. These machines depend on consistent power to process and distribute feed or manage waste efficiently.
6. Forestry and Specialty Applications: Beyond traditional agriculture, the W series PTO drive shaft can be used in forestry equipment, such as wood chippers or sawmills, where high torque and durability are essential. Its versatility extends to other industries requiring PTO-driven equipment.

How to Choose the Right Tractor PTO Shaft for the Rotary Tiller?

Choosing the right tractor PTO shaft for a rotary tiller is essential for efficient operation and to prevent equipment damage. Here are key points to consider when selecting the appropriate PTO shaft:

1. Determine the PTO Shaft Category: PTO shafts are categorized based on the horsepower and torque requirements of the tractor and implement. Identify the power output of your tractor and the tiller’s input needs to match the PTO shaft category. Common categories range from 1 to 5, with Category 1 suitable for smaller tractors and Category 5 for heavy-duty applications.
2. Measure the Required Shaft Length: The length of the PTO shaft is critical for proper operation. Measure the distance between the tractor’s PTO output and the rotary tiller’s input shaft. A shaft that is too short risks disengagement, while one that is too long can cause binding or damage during operation.
3. Check the PTO Shaft Connection Type: PTO shafts have different connection types, such as shear pin, slip clutch, or overrunning clutch systems. For a rotary tiller, a slip clutch is often recommended, as it protects the tractor and tiller from sudden overloads by slipping under excessive torque conditions, preventing damage.
4. Verify the PTO Speed Compatibility: Ensure the PTO shaft supports the rotational speed required by the rotary tiller. Most PTO systems operate at either 540 RPM or 1,000 RPM. Using an incompatible shaft can lead to performance issues or damage to the tiller or tractor.
5. Consider the Shaft Profile and Tube Design: PTO shafts come in various profiles, such as triangular, star, or splined designs. Select a profile compatible with your tractor and tiller. Additionally, opt for a durable telescoping tube design that allows smooth length adjustment while withstanding heavy use.
6. Evaluate Safety Features: Ensure the PTO shaft is equipped with safety guards to prevent operator injuries from moving parts. Protective shields covering the shaft and rotating components are essential to comply with safety standards and minimize risks during operation.

Why Choose AGKNX's Agricultural PTO Shaft?

AGKNX is a leading manufacturer specializing in the development, manufacturing, and marketing of PTO shafts, industrial cardan shafts, car driveshafts, u-joint coupling shafts, universal joints, and more. Our commitment to quality and innovation has led us to achieve an impressive annual turnover of 60 million RMB (approximately 9 million dollars), with growth year by year. Our products have gained an excellent reputation among customers in Europe, America, Asia, Australia, and North America, establishing us as one of the top three professional OEM suppliers for many agricultural implement factories in the domestic market.

We are proud to hold CE, TS/16949, and ISO9001 certifications, alongside our systematic manufacturing equipment and a dedicated QC team, which ensures that we deliver high-quality products on time. We warmly welcome every friend to visit us and explore opportunities for mutually beneficial long-term cooperation.

AGKNX offers numerous advantages that set us apart in the industry:

1. Safety Shield Types and Colors Based on Your Requirements: We provide a variety of safety shield types and colors to meet your specific needs. Whether for agricultural or industrial applications, we can customize designs to ensure durability and compliance with safety standards, providing optimal protection.
2. Wide Range of Universal Joints: Our product range includes a comprehensive selection of universal joints for various applications. Designed for reliability and performance, our universal joints are compatible with multiple machines and equipment, ensuring smooth operation and reduced wear over time.
3. Large Inventory for Fast Delivery: We maintain a substantial inventory of products, allowing us to provide quick and efficient delivery to meet your deadlines. Our streamlined logistics and stock management systems guarantee that you receive the products you need without unnecessary delays.
4. Variety of Abrasives, Tools, and Parts: In addition to shafts and joints, we supply a wide range of abrasives, tools, and components to support your agricultural and industrial operations. Our diverse selection ensures that you have access to the necessary parts for efficient and seamless workflows.
5. Customization and OEM Support: We specialize in providing highly customized solutions and OEM services tailored to your specific requirements. Our team collaborates closely with you to deliver products that match your exact specifications, whether you need unique designs, branding, or specialized manufacturing.

Choose AGKNX for your PTO shaft needs, and experience the quality, service, and value that we offer. Our dedication to customer satisfaction and product excellence is unmatched. Let us help you with your agricultural and industrial requirements—contact us today for custom solutions!
