Product Specifications
Application | JOHN DEERE FORAGE HARVEST:7700,7750,7780,7800,7850,7950,7980 |
SKU | JD5383 |
Reference Code | Z76801 |
Manufacturer | AGKNX Group |
Brand |
|
Weight | 0.55KG |
Finishing | Painting Green Color or Galvanize or Red or OEM |
Packing | Carton or Wooden box or Iron Box |
Note: Our products are replacement parts and not original equipment. We provide perfect replacement products for original equipment. If you need to purchase the original equipment, please contact the original supplier.

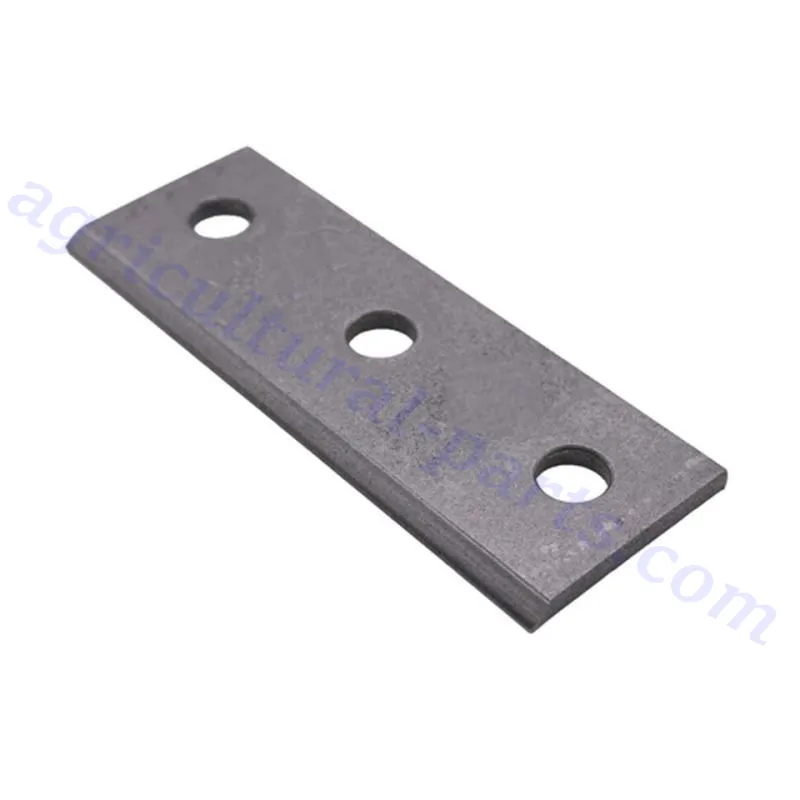

Overview of Z76801 Cutterbar Wear Plate for John Deere Forage Harvester
The Z76801 Cutterbar Wear Plate is a high-quality replacement part for John Deere Forage Harvesters. This wear plate is specifically designed to fit models 7700, 7750, 7780, 7800, 7850, 7950, and 7980, ensuring a perfect fit and optimal performance. Manufactured by AGKNX Group, a trusted name in agricultural parts, this wear plate is built to withstand the demanding conditions of forage harvesting.
With its durable construction and precise design, the Z76801 Cutterbar Wear Plate effectively protects the cutterbar from wear and tear, extending its lifespan and reducing the need for frequent replacements. It is made from high-quality materials and undergoes a thorough finishing process, with options for painting in green color, galvanizing, or red, or even customization according to OEM specifications.
The Z76801 Cutterbar Wear Plate weighs approximately 0.55KG, providing a lightweight yet robust solution for your forage harvester. It comes in a choice of packing options, including carton, wooden box, or iron box, ensuring safe and secure delivery to your location.
Upgrade your John Deere Forage Harvester with the Z76801 Cutterbar Wear Plate and experience enhanced performance and longevity. Trust in this reliable replacement part to keep your equipment running smoothly, even in the most demanding agricultural conditions.
Function and Use of Z76801 Cutterbar Wear Plate For John Deere Forage Harvester
The Z76801 Cutterbar Wear Plate is an essential component of the John Deere Forage Harvester. Its main function is to protect the cutterbar from excessive wear and tear, ensuring the efficient operation of the harvester.
This wear plate plays a crucial role in solving agricultural combine harvester-related issues and improving overall efficiency. By providing a durable barrier between the cutterbar and the harvested crop, it minimizes damage and reduces the need for frequent maintenance or replacement.
The Z76801 Cutterbar Wear Plate is designed to withstand the harsh conditions encountered during harvesting, such as rocks, soil, and debris. It acts as a shield, preventing direct contact between the cutterbar and these external elements, thereby extending the lifespan of the harvester.
By reducing wear on the cutterbar, this wear plate enables the forage harvester to operate smoothly and efficiently, maintaining a high level of performance throughout the harvesting process. It helps to prevent breakdowns and downtime, ensuring uninterrupted productivity in the field.
In addition to protecting the cutterbar, the Z76801 Cutterbar Wear Plate also contributes to improving overall crop quality. By minimizing crop damage during harvesting, it helps to preserve the integrity and nutritional value of the forage, ensuring optimal feed quality for livestock.
Advantages of Z76801 Cutterbar Wear Plate For John Deere Forage Harvester
The Z76801 Cutterbar Wear Plate is an essential component in John Deere Forage Harvesters. It offers several advantages that contribute to its significant role in agricultural combine harvesters. In this article, we will discuss some main advantages of this part in detail.
- Durable and Long-lasting: The Z76801 Cutterbar Wear Plate is made from high-quality materials, ensuring its durability and long lifespan. It can withstand the harsh conditions of agricultural operations and maintain its performance even after extended use.
- Protects the Cutterbar: This wear plate acts as a protective shield for the cutterbar, preventing excessive wear and tear. By reducing friction and impact, it minimizes the risk of damage to the cutterbar, enhancing its overall lifespan and efficiency.
- Improved Crop Flow: The Z76801 Cutterbar Wear Plate is designed to optimize crop flow during harvesting. Its smooth surface minimizes crop material accumulation and blockages, ensuring a continuous and efficient harvesting process.
- Enhanced Cutting Performance: With the Z76801 Cutterbar Wear Plate, the cutting performance of the John Deere Forage Harvester is significantly improved. It provides a clean and precise cut, ensuring optimal crop quality and reducing crop losses.
- Ease of Replacement: When it comes to maintenance and replacement, the Z76801 Cutterbar Wear Plate offers convenience. Its design allows for easy installation and removal, minimizing downtime during the harvesting season.
- Compatibility and Versatility: The Z76801 Cutterbar Wear Plate is specifically designed for John Deere Forage Harvesters, ensuring perfect compatibility and fit. It is a versatile component that can be used in various models of these agricultural machines.
How to Replace a Damaged Z76801 Cutterbar Wear Plate for John Deere Forage Harvester
Replacing a damaged Z76801 cutterbar wear plate for John Deere forage harvester is a critical process that requires precision and careful attention. The following are eight detailed steps to guide you on how to replace the damaged part.
1. Prepare the necessary tools
Before commencing the replacement process, ensure that you have the required tools. These include a wrench, socket, ratchet, and a new Z76801 cutterbar wear plate.
2. Turn off the machine
Ensure that the forage harvester is turned off before beginning the replacement process. This is necessary to prevent any accidents that may occur during the process.
3. Remove the old cutterbar wear plate
Using a wrench and socket, loosen the nuts and bolts that hold the damaged wear plate in place. Carefully remove the old plate and set it aside.
4. Clean the cutterbar
With the old wear plate removed, take time to clean the cutterbar thoroughly. Use a wire brush or sandpaper to remove any debris or rust that may have accumulated on the surface.
5. Install the new cutterbar wear plate
Align the new cutterbar wear plate with the mounting holes and carefully place it in position. Ensure that all the bolt holes are aligned and insert the bolts and nuts to hold it in place.
6. Tighten the nuts and bolts
Using the ratchet and socket, tighten the nuts and bolts that hold the new wear plate in place. Ensure that they are tight enough to hold the plate securely in place.
7. Test the cutterbar
After installing the new wear plate, turn on the forage harvester and run the cutterbar to test it. Ensure that the new plate is working as expected and that there are no unusual noises or vibrations.
8. Clean up
Finally, clean up the work area and dispose of any waste materials appropriately.
Other Replacement Combine Harvester Parts for John Deere
1. Chain Sprockets:
Chain sprockets are vital components in the combine harvester’s drive system, transferring power to various mechanisms such as the feeder, conveyor, and threshing systems. Over time, sprockets can wear due to heavy use and exposure to debris. Replacing worn sprockets ensures smooth operation, reduces chain wear, and prevents power transmission issues.
2. Drive Pulleys:
Drive pulleys help transmit rotational power between different components of the combine harvester using belts. If a pulley becomes misaligned, cracked, or worn, it can lead to belt slippage, reduced efficiency, and potential breakdowns. High-quality replacement drive pulleys restore optimal power transfer, ensuring consistent performance during harvesting operations.
3. Gears:
Gears are critical for transmitting torque and rotational motion across the combine's drive system. Damaged or worn gears can cause mechanical inefficiency, noise, and eventual system failure. Replacing faulty gears with durable replacements ensures seamless power transfer, reduces wear on the drivetrain, and extends the machine's lifespan.
4. Drive Shaft:
The drive shaft is a key component that transfers power from the engine to various parts of the combine, such as the grain auger and cutting mechanism. A damaged or misaligned drive shaft can cause vibrations, reduced performance, or complete failure. Replacing it ensures smooth power transmission and prevents costly downtime.
5. Straw Chopper Blade:
The straw chopper blade is responsible for cutting and chopping straw into fine pieces, which can be spread back onto the field or collected. Over time, blades become dull or damaged due to heavy use. Replacing the straw chopper blades ensures clean, efficient cutting and prevents clogging or uneven residue distribution.
6. Knife Guard:
Knife guards protect the cutting blades and ensure precise cutting by holding the blades in place and preventing debris from interfering. Damaged or bent knife guards can lead to uneven cutting or blade damage. Replacing worn guards maintains cutting accuracy and protects the harvester's knives from premature wear.
7. Grass Knife:
Grass knives are used for cutting tough grass and weeds during harvesting. Dull or broken grass knives reduce cutting efficiency and strain the harvester’s system. Replacing grass knives ensures clean cuts, minimizes power consumption, and improves the overall efficiency of the harvesting process.
8. Sickle Section:
Sickle sections are sharp, triangular blades that form the primary cutting mechanism of the harvester. Frequent use can dull or break these sections, leading to inefficient cutting and higher crop losses. Replacing damaged sickle sections ensures sharp, precise cuts, reduces strain on the cutting system, and maximizes harvesting productivity.
Why Choose AGKNX's Combine Harvester Parts?
AGKNX is one of the leading manufacturers and wholesale distributors of aftermarket replacement parts for combine harvesters, balers, tractors, rotary tillers, disc mowers, and corn heads in domestic and global markets. Our comprehensive range of agricultural spare parts is of the best quality, and we offer them at competitive prices, with exceptional customer service and fast delivery. We are committed to providing our customers with the best aftermarket replacement parts for combine harvesters such as John Deere, New Holland, Case, Claas, Welger, KMC, Amadas, Gallignani, Kubota, Laverda, MTZ, Ford, Maschio, Goldoni, Howard, BCS.
Our product range consists of a wide variety of aftermarket spare parts for leading agricultural machinery brands. We take pride in our diverse product range that meets the varied needs of farmers and businesses worldwide. Our products are crafted with precision and high-quality materials to ensure durability and performance. We adhere to stringent quality standards, ensuring each part meets the demands of rigorous agricultural operations.
At AGKNX, customer satisfaction is our priority. Our dedicated team is ready to assist with inquiries, orders, and technical support. We focus on building long-term relationships through personalized service and expert advice. We understand the importance of timely delivery in agriculture, and our efficient logistics network ensures that orders are delivered promptly, minimizing downtime during critical operations.
We also offer tailored solutions by welcoming customer specifications and designs. Provide drawings or samples, and our expert team will create customized parts to meet your unique needs, ensuring optimal performance. Our efficient manufacturing and strategic partnerships help keep costs low, enabling us to provide top-quality products at competitive prices, offering exceptional value without compromising on quality.
As a company, we supply products to our local customers in whole world. Over time, we have come a long way in this field, too. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. You can view our entire product range in detail on our product page.
Choose AGKNX's combine harvester parts for the best aftermarket replacement parts for your agricultural machinery needs. Contact us today for more information, and we will be happy to assist you.
