Log Splitter Hydraulic Pumps

A hydraulic pump for a log splitter is a mechanical device that generates the hydraulic pressure required to power the splitter’s ram or piston. It draws hydraulic fluid from a reservoir and forces it into the cylinder, creating the force needed to split logs. These pumps are typically gear or two-stage pumps, offering high efficiency and adjustable pressure for splitting various wood types. They are essential for converting mechanical energy into usable hydraulic power, ensuring smooth and powerful log-splitting operations.

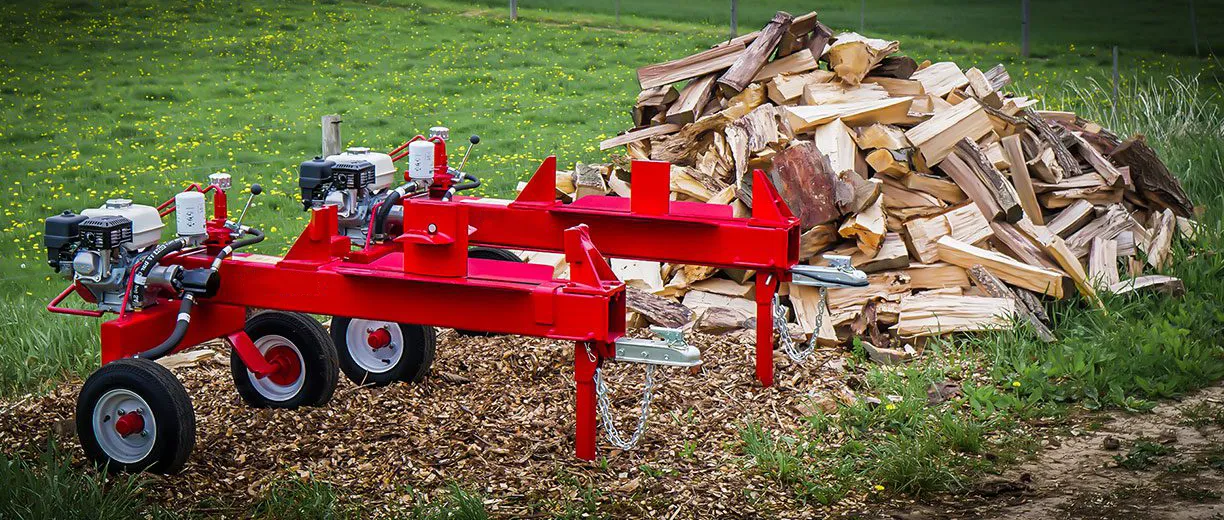

Hydraulic Pump for Log Splitter

Log splitter hydraulic pumps are specialized pumps that generate hydraulic pressure to power the cylinder in log splitters, enabling the splitting of wood. Typically gear or piston pumps, they convert mechanical energy from an engine or motor into hydraulic fluid flow, delivering high pressure (up to 3,000 PSI) to drive the splitting wedge. Available in single-stage or two-stage designs, two-stage pumps offer faster cycles for smaller logs and higher force for larger ones. They require proper fluid viscosity and maintenance to ensure efficiency and durability.

Keep your hydraulics in motion with a wood splitter hydraulic pump from AGKNX. Designed to meet the needs of high-force log splitting, our precision 2-stage hydraulic pumps ensure cylinders perform smoothly and rapidly, helping to shave down cycle times.

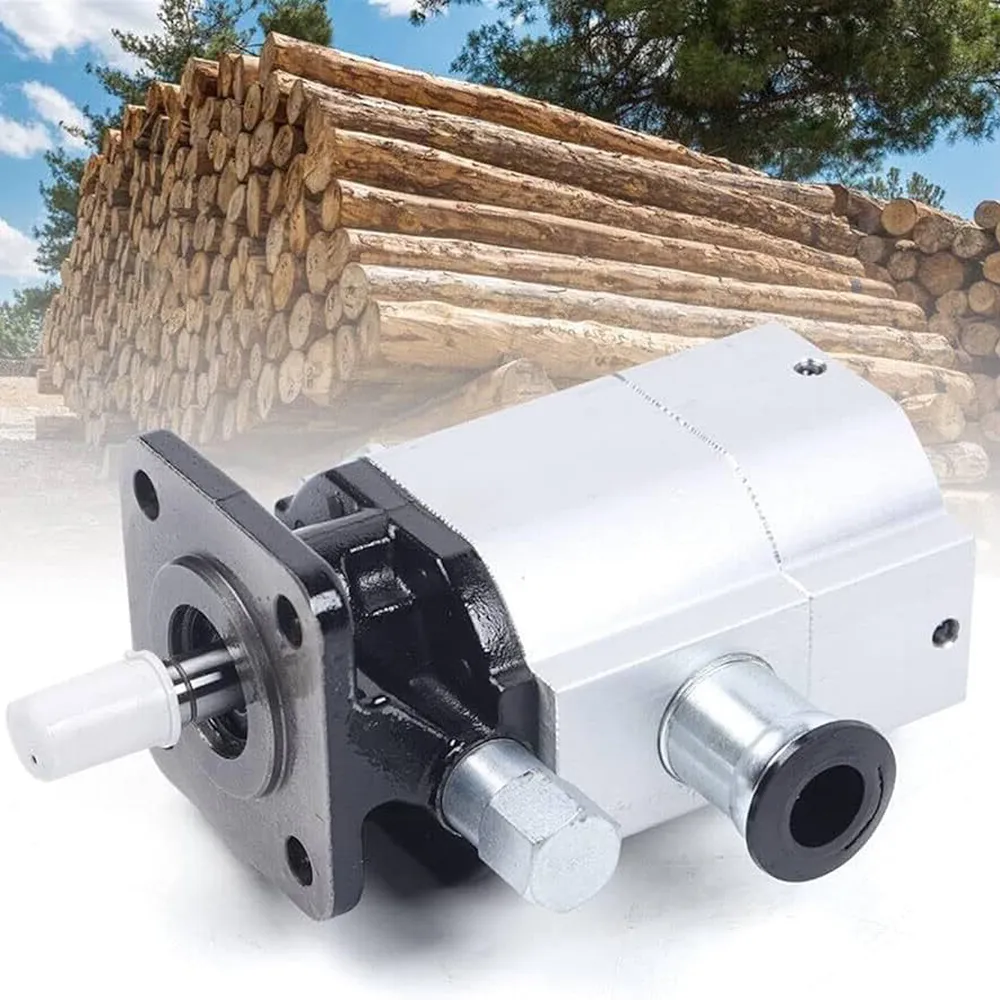

What is the 2 Stage Hydraulic Pump for Log Splitter?

A 2 stage hydraulic pump for log splitter is a specialized mechanical component designed to enhance the efficiency and performance of log splitting machines. It operates by utilizing two distinct pumping stages to deliver hydraulic power. The first stage provides high flow at low pressure, allowing the splitter’s wedge to move quickly during the initial phase when there’s little resistance (like when the wedge is traveling toward the log). The second stage shifts to low flow at high pressure, delivering maximum force when the wedge encounters resistance while splitting the log. This dual-stage operation ensures a balance between speed and brute force, making the log splitter both fast and powerful.

AGKNX offers a full line of two stage log splitter pump, compactors, and press-type applications. AGKNX’s log splitter hydraulic pumps have a cast iron gear housing and are available in flows ranging from 9 GPM to 28 GPM. These 2-stage hydraulic pumps are designed for heavy-duty use and long cycle times. These log splitter hydraulic pumps are ideal for the recreational wood splitter user, as they are still a quality product, but offered at a much lower price point.

Benefits of Hydraulic Log Splitter Pump

(1) Powerful Force Generation

Hydraulic log splitter pumps deliver immense pressure, enabling log splitters to exert thousands of pounds of force, effortlessly splitting dense hardwoods like oak or maple, reducing manual effort and increasing efficiency.

(2) Consistent Performance

The hydraulic log splitter pump ensures steady hydraulic fluid flow, maintaining uniform splitting power across various log sizes, resulting in reliable operation without power fluctuations, even during extended use in demanding conditions.

(3) Enhanced Speed and Efficiency

Hyd pump for log splitter enables rapid cycle times, often splitting logs in seconds, boosting productivity. This allows users to process large volumes of wood quickly, ideal for professional or high-volume tasks.

(4) Durability and Longevity

Built with robust materials, log splitter hydraulic pumps withstand heavy-duty use and harsh environments, ensuring long-term reliability with minimal maintenance, reducing downtime and repair costs for log splitter operators.

(5) Versatility Across Applications

Hydraulic pumps for log splitters support various log splitter designs, accommodating different power sources like gas or electric motors, making them adaptable for both residential and commercial wood-splitting needs with consistent performance.

(6) Safety and Ease of Use

By automating the splitting process, two stage hydraulic pump for log splitters reduces physical strain and risk of injury, allowing operators to split logs with minimal effort, enhancing safety and user comfort during operation.

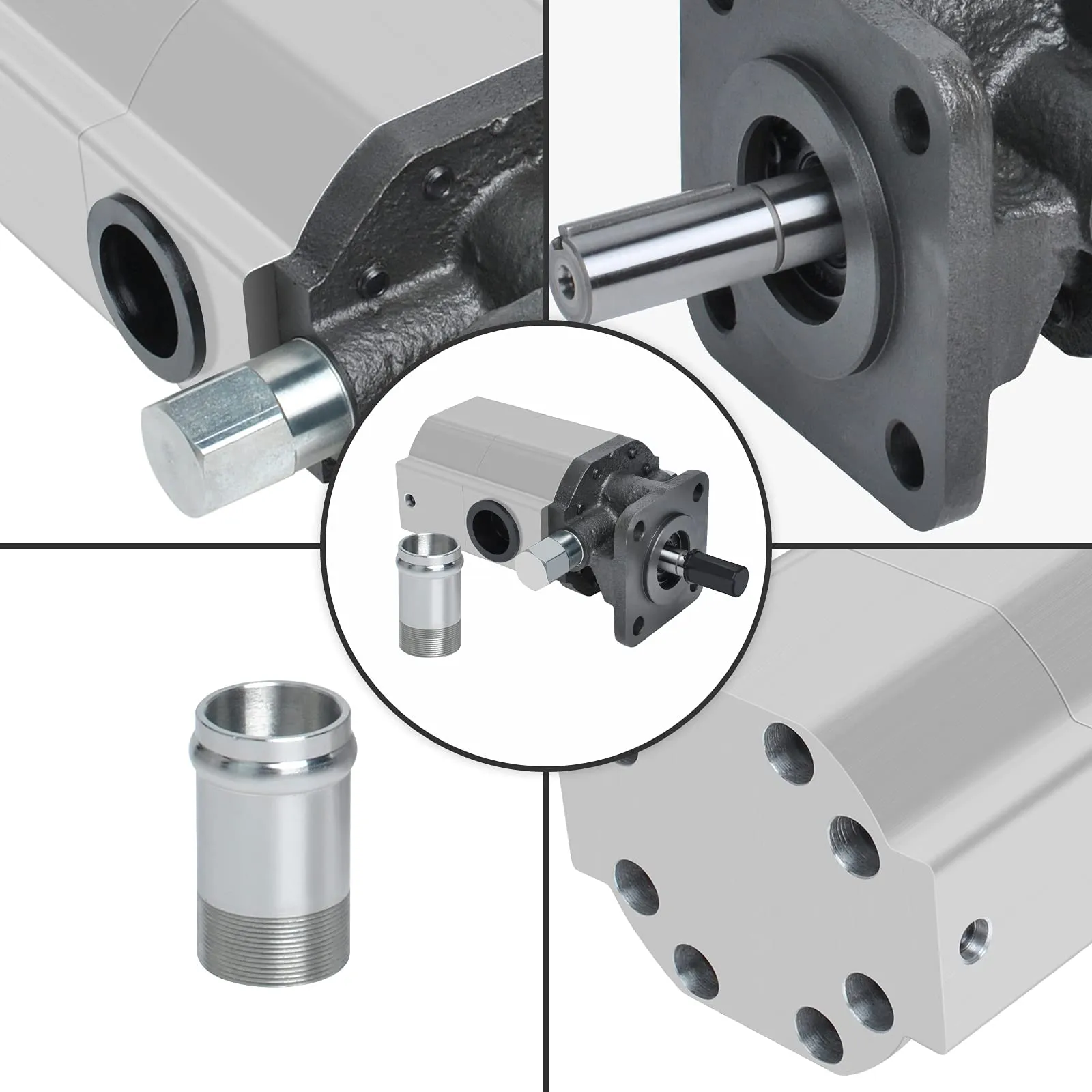

Hydraulic Pump Log Splitter Parts

Pump Housing: The pump housing encases and protects the internal components of the hydraulic pump. Made from durable materials like aluminum or cast iron, it ensures structural integrity, withstands high pressure, and prevents external damage.
Gears or Pistons: Hydraulic log splitter pumps use gears or pistons to generate hydraulic pressure. Gears are used in gear pumps for steady flow, while pistons in piston pumps provide higher pressures for demanding log-splitting applications.
Flow Control Switch: The flow control switch regulates the hydraulic fluid’s speed and pressure. It ensures smooth operation by transitioning between high-flow/low-pressure and low-flow/high-pressure modes, optimizing the performance of the log splitter.
Seals and Gaskets: Seals and gaskets prevent hydraulic fluid leaks and maintain internal pressure within the pump. These components are critical for system efficiency, as leaks can reduce performance and cause potential damage over time.
Inlet/Outlet Valves: Inlet valves allow hydraulic fluid to enter the log splitter pump, while outlet valves direct pressurized fluid to the splitter. These valves maintain a steady flow and ensure proper pressure control during operation.
Shaft and Bearings: The shaft connects the pump to the engine or motor, transmitting rotational energy to power the hyd pump for log splitter. Bearings support the shaft, reducing friction and ensuring smooth, efficient operation under high workloads.

How Does a 2 Stage Log Splitter Hydraulic Pump Work?

A 2-stage log splitter hydraulic pump is a critical component in log splitters, designed to optimize both speed and power for efficient wood splitting. It operates in two distinct modes—low-pressure/high-flow and high-pressure/low-flow—automatically switching based on the resistance encountered.

In the low-pressure stage, the log splitter pump delivers a high volume of hydraulic fluid at lower pressure, typically up to 1,000 PSI. This stage engages when the log splitter’s ram begins moving toward the log, requiring less force but faster movement. Two gear sets or pistons work together, combining their fluid output to maximize flow rate, which results in quick ram extension and shorter cycle times. This efficiency is ideal for initial contact or softer woods.

When the ram encounters significant resistance, such as a dense hardwood log, the hydraulic log splitter pump senses the pressure increase and shifts to the high-pressure stage. A built-in unloader valve redirects fluid, disengaging one gear set or reducing flow from one piston. This focuses the pump’s output on generating higher pressure, often up to 3,000 PSI or more, at a lower flow rate. The increased force drives the ram through the log, splitting it effectively.

The 2 stage log splitter pump’s ability to switch stages seamlessly ensures energy efficiency, as the motor isn’t overworked during lighter tasks. Components like seals, valves, and a robust housing maintain fluid integrity and durability. This dual-stage design balances speed and power, making 2-stage pumps ideal for both residential and commercial log splitting applications.

Two Stage Hydraulic Pump vs Single Stage Hydraulic Pump

Aspect	Two-Stage Hydraulic Pump	Single-Stage Hydraulic Pump
Stages of Operation	Operates in two distinct stages: low-pressure high-flow and high-pressure low-flow modes.	Operates in a single stage with a fixed performance output.
Efficiency	More efficient for applications requiring variable pressure and flow.	Less efficient for variable-demand applications.
Flow Rate	Provides higher flow rates at low pressure.	Flow rate remains constant regardless of pressure.
Pressure Capability	Capable of switching to high pressure when needed.	Generally limited to a single pressure range.
Power Consumption	Consumes less power during low-pressure operation.	Consumes consistent power regardless of the pressure demand.
Cost	Typically more expensive due to complex design.	Generally more affordable with simpler construction.
Applications	Suitable for heavy-duty machinery and tools requiring variable pressure.	Best for applications with steady and consistent pressure and flow.
Durability	Designed for heavy-duty, long-term use in demanding conditions.	May wear faster under high-demand or variable pressure conditions.
Complexity	More complex in design and operation.	Simpler design with straightforward operation.
Operation Control	Requires more advanced controls to manage two-stage operation.	Easier to control with less operational complexity.
Performance Flexibility	Highly flexible, ideal for multi-tasking hydraulic systems.	Less flexible, suitable for single-purpose systems.
Heat Generation	Produces less heat during low-pressure operations.	May generate more heat due to constant operations.
Maintenance	Requires more maintenance due to its complexity.	Easier to maintain with fewer components.
Size and Weight	Larger and heavier due to the dual-stage mechanism.	Smaller and lighter because of its simpler build.


Two-Stage Hydraulic Pump	Single-Stage Hydraulic Pump

How to Install Log Splitter Pump?

(1) Prepare the Work Area and Tools

Start by selecting a clean, flat workspace with adequate lighting. Gather necessary tools such as wrenches, screwdrivers, hydraulic hoses, and mounting hardware. Ensure that all components are compatible with your log splitter model.

(2) Secure the Pump to the Mounting Bracket

Attach the hydraulic pump to the designated mounting bracket on the log splitter. Use the provided bolts and washers to secure it tightly. Ensure proper alignment to avoid vibrations or stress during operation.

(3) Connect the Hydraulic Hoses

Attach the hydraulic hoses to the pump’s inlet and outlet ports. Use thread sealant or Teflon tape to prevent leaks. Make sure the hoses are properly routed and not kinked or twisted.

(4) Install the Coupler and Shaft

Connect the pump shaft to the engine using a coupler. Align the shaft and engine carefully to avoid misalignment, which can cause premature wear or damage. Tighten the coupler securely to prevent slippage.

(5) Fill the Hydraulic Tank with Fluid

Fill the hydraulic reservoir with the recommended hydraulic fluid. Check the system for any leaks, and ensure the fluid level is sufficient to avoid damage to the pump during operation.

(6) Test the System for Proper Operation

Start the engine and engage the hydraulic system. Observe for smooth operation and check for leaks or unusual noises. Test the log splitter’s cycle to ensure the pump is functioning correctly.

What Size Hydraulic Pump for Log Splitter

5 GPM Log Splitter Pump: A 5 GPM pump is ideal for small or lightweight log splitters used for softwood or smaller logs. It works well with compact engines and is suitable for home use with moderate splitting needs.
7 GPM Log Splitter Pump: This size is designed for medium-duty applications, offering a balance between speed and power. It is perfect for splitting smaller hardwood logs or softwoods efficiently in residential or light commercial settings.
8 GPM Log Splitter Pump: An 8 GPM pump is suited for moderate workloads, providing sufficient power and speed for splitting softwood and smaller hardwood logs. It offers faster operation and is great for frequent residential use.
9 GPM Log Splitter Pump: A 9 GPM pump delivers slightly more speed and power than smaller pumps, making it efficient for splitting tougher hardwoods and medium-sized logs. It is versatile enough for semi-regular or light commercial use.
11 GPM Log Splitter Pump: Designed for higher efficiency, this pump is ideal for medium to heavy-duty log splitting tasks. It provides faster cycle times and greater power, making it suitable for hardwood logs and frequent residential use.
13 GPM Log Splitter Pump: A 13 GPM pump is excellent for demanding applications. It offers quick cycle times and high splitting power, making it perfect for hardwoods, large logs, and small-scale commercial log splitting operations.
16 GPM Log Splitter Pump: This pump size is a popular choice for heavy-duty residential or small commercial log splitters. It provides exceptional speed and power, handling dense hardwoods and oversized logs with ease.
22 GPM Log Splitter Pump: A 22 GPM pump is suited for industrial or high-volume applications. It delivers strong splitting power and rapid cycle times, making it perfect for large-scale operations and splitting the toughest hardwood logs.
28 GPM Log Splitter Pump: Designed for professional-grade log splitters, this pump size is built for large-scale, continuous use. It handles heavy-duty workloads, offering maximum power and speed for the most demanding splitting tasks.

Log Splitter Hydraulic Pump FAQs

How to Choose the Best Hydraulic Pump for Log Splitter?

To choose the best hydraulic pump for a log splitter, consider factors such as splitting requirements, engine compatibility, and pump flow rate (GPM). For smaller logs and light-duty use, a lower GPM pump (e.g., 5-11 GPM) is sufficient. For larger, tougher logs or commercial use, opt for higher GPM pumps (e.g., 13-28 GPM). Ensure the pump matches the engine’s power output and the hydraulic system’s pressure rating. Also, consider cycle time efficiency, budget, and durability.

What Are the Hydraulic Log Splitter Pump Kits?

Hydraulic log splitter pump kits are comprehensive packages that include essential components needed to power a log splitter’s hydraulic system. These kits typically consist of a hydraulic pump, mounting bracket, coupler, hydraulic hoses, fittings, and sometimes a filter. They are designed for easy installation and ensure efficient operation by providing the necessary flow and pressure for splitting logs. Available in various GPM ratings, these kits are tailored for both residential and commercial applications, offering compatibility with different engines and log splitter designs. With a pump kit, users can upgrade, replace, or build a hydraulic system to enhance performance.

How to Maintain Your Log Splitter Hydraulic Pump Kit?

To maintain your log splitter hydraulic pump kit, regularly inspect for leaks in hoses, seals, and connections. Clean the pump and surrounding area to remove debris that could damage components. Check and replace hydraulic fluid as needed to ensure proper lubrication and prevent overheating. Tighten loose fittings and monitor the pump’s performance for unusual noises or vibrations. Replace worn-out parts like gaskets or couplers promptly. Proper maintenance ensures efficiency, durability, and safe operation.

Differences Between Hydraulic and Electric Hydraulic Pump for Log Splitter

The key difference between a hydraulic pump and an electric hydraulic pump for a log splitter lies in their power sources. A hydraulic pump is typically powered by gas engines, making it portable and suitable for outdoor use without relying on electricity. In contrast, an electric hydraulic pump is powered by electricity, requiring access to a power outlet, making it quieter, eco-friendly, and ideal for indoor or residential use. Electric pumps often have lower maintenance needs but may lack the portability and high power output of gas-powered hydraulic pumps, which are better suited for heavy-duty or remote applications.

Which Is Better, A 28 GPM Log Splitter Pump or a 16 GPM Log Splitter Pump?

The choice between a 28 GPM log splitter pump and a 16 GPM pump depends on your needs. A 28 GPM pump is better for heavy-duty, industrial tasks, offering faster cycle times and the power to split large, dense hardwoods efficiently. However, it requires a high-capacity engine and consumes more energy. A 16 GPM pump is more suited for residential or small commercial use, providing a balance of speed, power, and fuel efficiency. Choose based on your workload and splitter capacity.

What Is the Importance of GPM in Hydraulic Log Splitter Pumps?

GPM (gallons per minute) in hydraulic log splitter pumps is crucial as it determines the speed at which hydraulic fluid flows through the system, directly affecting the cycle time of the splitter. A higher GPM results in faster operation, allowing logs to be split more quickly, making it ideal for high-volume tasks. However, excessive GPM without adequate PSI can reduce splitting power. It’s essential to balance GPM with the pump’s pressure rating and the hydraulic cylinder’s size to ensure both speed and force are optimized. Proper GPM selection boosts efficiency and prevents system strain.

How to Replace a Hydraulic Pump in Your Log Splitter?

To replace a hydraulic pump in your log splitter, first turn off the engine and disconnect the power source for safety. Drain the hydraulic fluid from the system to prevent spills. Detach the hoses and fittings connected to the old pump, ensuring you label them for reassembly. Remove the mounting bolts and take out the old pump. Install the new pump by aligning it properly with the engine and securing it with bolts. Reconnect the hoses and coupler, ensuring all connections are tight. Refill the hydraulic fluid reservoir with the recommended oil, and check for leaks. Finally, test the splitter to ensure the new pump operates smoothly.

What Materials Are Best for Log Splitter Hydraulic Pump Housing?

The best materials for log splitter hydraulic pump housings are cast iron, aluminum, and steel alloys, each chosen for their unique properties. Cast iron is highly durable, resistant to wear, and excellent for heavy-duty use due to its strength and vibration-damping properties. Aluminum is lightweight, corrosion-resistant, and offers good thermal conductivity, making it ideal for portable units. Steel alloys, especially those with chromium or nickel, provide exceptional toughness, impact resistance, and longevity in high-pressure applications. Material selection depends on performance needs, weight considerations, and cost factors.

Common Issues and Troubleshooting Your Log Splitter Pump

Common issues with log splitter pumps include low hydraulic pressure, slow operation, overheating, and unusual noises. Low pressure often stems from worn seals, damaged valves, or insufficient hydraulic fluid levels. Slow operation may indicate a clogged filter or air in the hydraulic lines. Overheating is usually caused by overworked pumps or inadequate cooling systems. Unusual noises, such as whining or knocking, often point to cavitation or misaligned components. Troubleshooting involves checking fluid levels, replacing filters, inspecting seals, tightening connections, and ensuring proper alignment of components. Regular maintenance can prevent most of these issues.

How to Determine the Right Log Splitter Pump Size?

Determining the right log splitter pump size involves evaluating factors like log size, splitting force, and cycle time requirements. The pump’s GPM (gallons per minute) determines speed, while its pressure rating (PSI) determines force. A higher GPM delivers faster operation, ideal for smaller logs, but large logs may require higher PSI for adequate splitting power. Match the pump size to your hydraulic cylinder size and ensure the engine’s horsepower supports the pump’s flow rate. For example, a 2-stage pump is ideal for handling varying loads efficiently, balancing power and speed.
